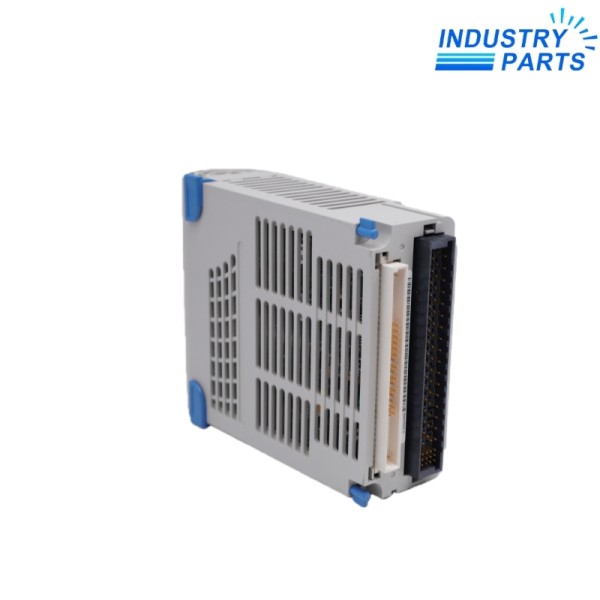

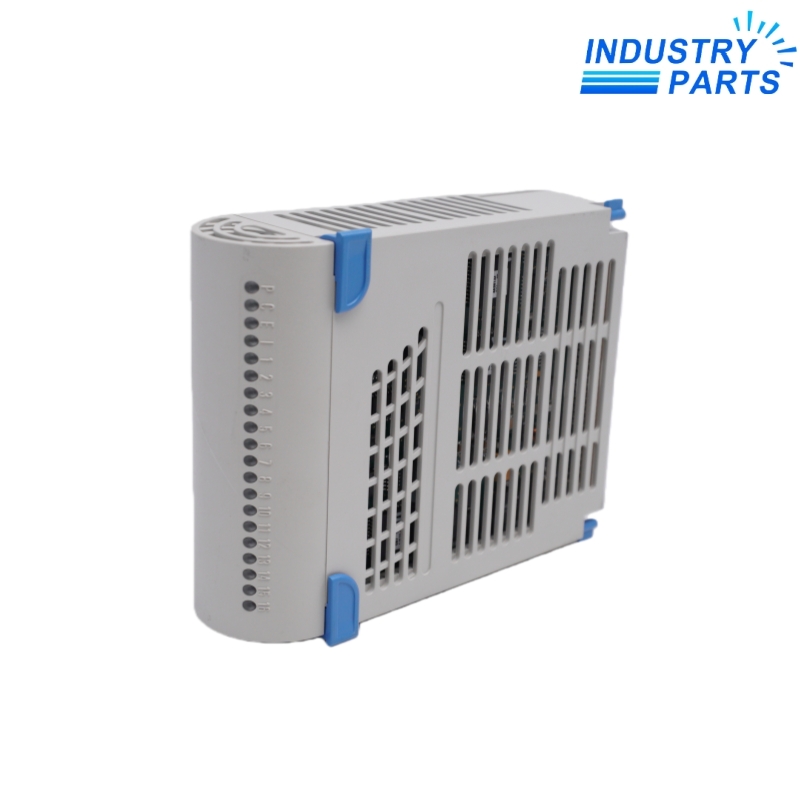

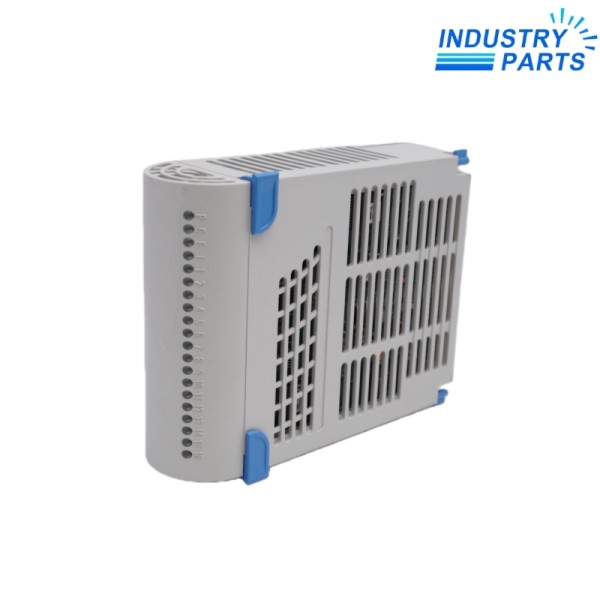

Westinghouse 5X00119G01 Module

Westinghouse 5X00119G01 Module

Product Overview

Contact us

Sales:	Email:	Whatsapp:
Winnie	sales7@askplc.com	+86 18020716847

Key Parameters

Model 5X00119G01
Module Type: RTD Input (Temperature Detector)
System Platform: Emerson / Westinghouse Ovation DCS
Number of Input Channels: 8-channel RTD
Supported RTD Types: Pt100, Pt1000, etc. (configurable)
Sampling Rate: - 50 Hz Mode: 16.67 times/second (standard)
- 3-wire measurement: Measure line resistance once every 6.45 seconds, rate drops to 3 times/second
- 60 Hz Mode: 20 times/second (standard); drops to 2 times/second for 3-wire measurement
- Self-calibration Mode: Approximately 1 time/second
Resolution: 12-bit (digital)
Accuracy: ±0.10% (25°C)
Common Mode Rejection (CMMR): 120 dB
Isolation: Channel to channel: 200 V AC/DC; Channel to logic (backplane): 1000 V AC/DC
Input Impedance: ~100Ω MΩ normal; approximately 50 kΩ when power off
Power consumption: Typical 3.6 W; Maximum 4.2 W
Operating temperature: 0°C to +60°C
Storage temperature: -40°C to +85°C
Humidity: 0% to 95% (non-condensing)
