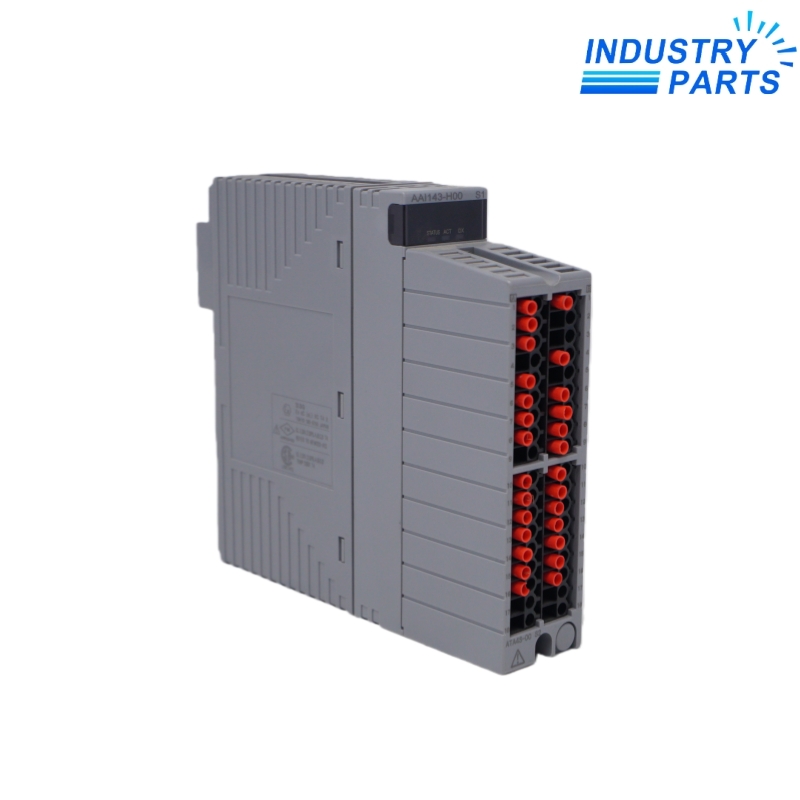

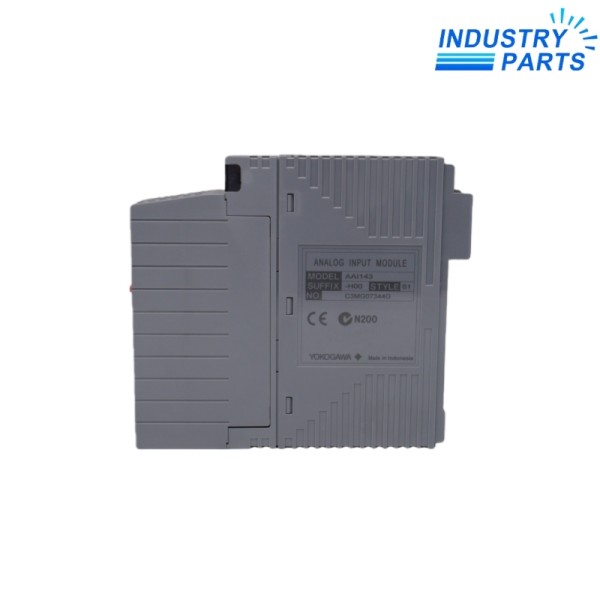

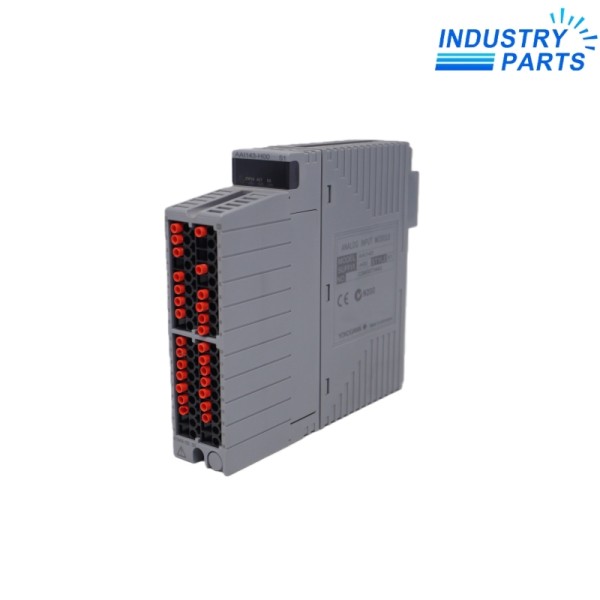

Yokogawa AAI143-H00 CENTUM VP 16-Channel Isolated HART Analog Input Module
A sixteen-channel isolated current-input module with HART communication and the H00 basic execution.
Product Identification
AAI143-H00 is a Yokogawa AAI143 current-input module with sixteen isolated 4–20 mA channels and HART communication. It can supply two-wire transmitters or accept four-wire transmitter signals, selected per channel by the module setting pins.
The H00 execution must stay tied to the installed terminal or cable arrangement. A zener barrier is not permitted with this module for intrinsically safe use; Yokogawa directs users to an isolation barrier when that protection method is required.
The H00 suffix identifies the HART-capable basic execution and must match the FCS project and field termination.
Engineering Data
- Input channels
- 16, isolated
- Input signal
- 4–20 mA
- Allowable input current
- 24 mA
- Input resistance, powered
- 270 Ω at 20 mA to 350 Ω at 4 mA
- Input resistance, unpowered
- 500 kΩ or greater
- Accuracy
- ±16 µA
- Update period
- 10 ms
- Transmitter supply
- 19.0 V or higher at 20 mA; output limited to 25 mA
- Two-/four-wire selection
- Per channel by setting pin
- Maximum current draw
- 230 mA at 5 V DC; 540 mA at 24 V DC
Functions
Acquire isolated current signals
Provides sixteen separated 4–20 mA measurement paths.
Power two-wire transmitters
Makes the published transmitter supply available when a channel is configured for two-wire service.
Carry HART data
Supports digital maintenance communication on compatible field-device loops.
Applications
Process transmitter bank
Use for documented two-wire and four-wire 4–20 mA field instruments.
HART maintenance path
Retain device tags, poll addresses and host access records for supported instruments.
Intrinsically safe loop
Use an approved isolation barrier rather than a zener barrier where required.
Lifecycle
Inventory
Record AAI143-H00, FCS slot, termination route, transmitter type and HART device identity.
Configure
Retain each channel’s two-wire/four-wire setting, range, damping and engineering scaling.
Replace
Follow the approved node and loop isolation process while preserving shields and polarity.
Validate
Check known current values, HART access, diagnostics and alarms for every active channel.
About IndustryParts
https://www.industryparts.com/Controlled handling for AAI143-H00
IndustryParts keeps the submitted AAI143-H00 identity, requested quantity and installed-system evidence together so a proposed supply can be checked before dispatch.
- Suffix and MOD identity kept visible
- Mating hardware recorded before supply
- Acceptance evidence linked to the order
FAQ
Does AAI143-H00 support HART communication?
Yes. Yokogawa lists HART communication as available for the AAI143 module.
Can a zener barrier be connected to AAI143-H00?
No. Yokogawa states that an isolation barrier must be used when an intrinsically safe barrier is required.
What should accompany a AAI143-H00 request?
Provide the H00 label, termination type, channel list, two-/four-wire settings and HART device records.
Why do channel setting pins matter on AAI143-H00?
They select the two-wire or four-wire transmitter arrangement individually for each channel.
How should AAI143-H00 be accepted?
Verify current accuracy with a known source and confirm HART communication, diagnostics and scaling on used channels.
