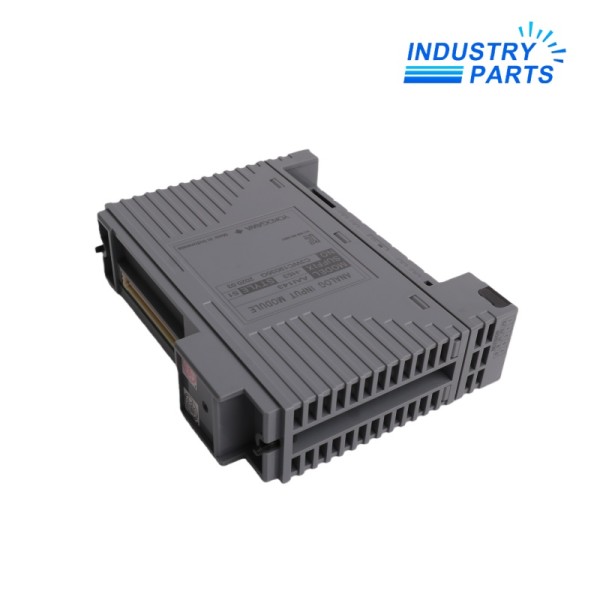

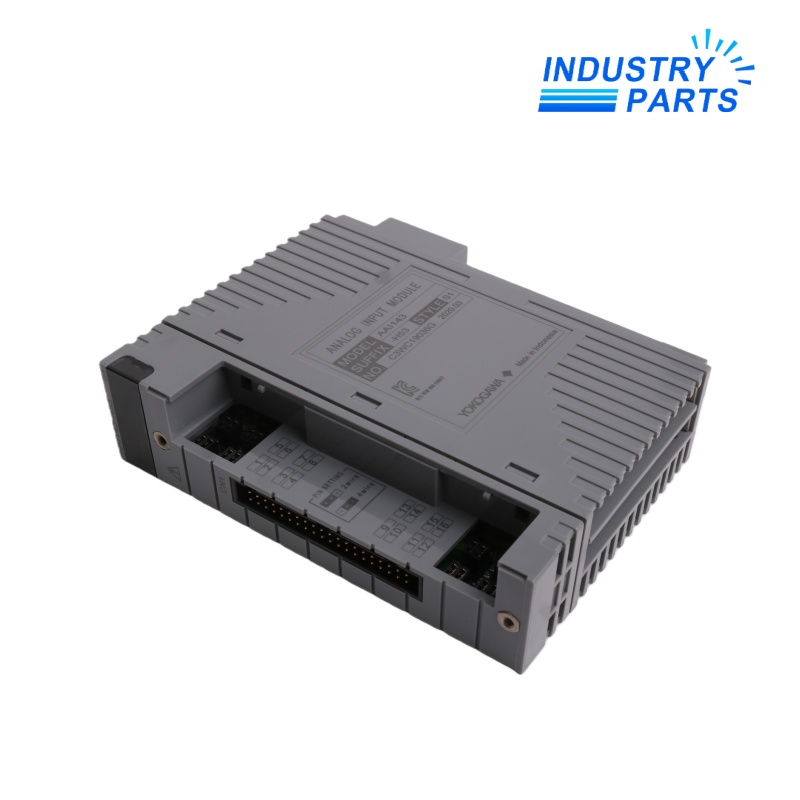

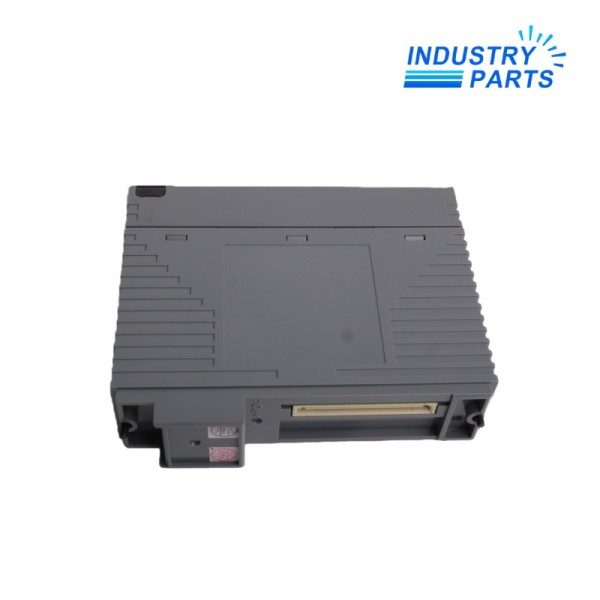

Yokogawa AAI143-H53 16-Channel Isolated HART Analog Input Module
A sixteen-channel Yokogawa current-input module combining isolated 4–20 mA acquisition with HART digital communication.
Product Identification
AAI143-H53 is Yokogawa AAI143 in an HART-capable execution. Yokogawa identifies AAI143 as a 16-channel, individually isolated 4–20 mA analog input module, with the H option providing HART digital communication.
Loop power, terminal assembly, HART device identity, configured range and controller database must be reviewed as one channel record. The complete H53 suffix remains visible because terminal and execution details cannot be inferred safely from the base code alone.
Engineering Data
Functions
Sixteen isolated loops
Acquires multiple current loops while maintaining the published channel-isolation boundary.
HART access
Carries supported digital device communication on the analog loop.
Channel-record integration
Analog scaling and HART identity are retained together for each field device.
Exact suffix control
H53 remains part of purchase, receiving and maintenance documentation.
Applications
HART transmitter integration
Connecting supported smart transmitters to a Yokogawa control system.
Process current acquisition
Reading isolated 4–20 mA loops with documented scaling and alarms.
Revision-managed module service
Restoring an H53 execution without losing device or terminal records.
Lifecycle
Collect
Export channel data and record module, terminal, loop-power and HART device identities.
Reconnect
Preserve polarity, isolation, shields and the approved field-power arrangement.
Verify
Inject current, confirm engineering values, then test HART communication, diagnostics and alarms.
FAQ
What should accompany an AAI143-H53 request?
Provide the complete H53 label, host node and slot, terminal assembly, loop schedule, HART device list and quantity.
Can AAI143-H53 be treated as a basic analog-only input card?
No. The H execution includes a HART communication role that must be included in commissioning.
Why should every AAI143-H53 channel retain its device identity?
A current value can remain plausible even when digital communication is assigned to the wrong transmitter record.
How should a suspect AAI143-H53 loop be isolated?
Check loop power and wiring, inject a known current, compare the scaled value, and test HART communication as separate steps.
What proves AAI143-H53 is ready after service?
Retain channel-by-channel current results, HART communication status, clean diagnostics and completed alarm tests.
About IndustryParts
https://www.industryparts.com/Exact identity before quotation
IndustryParts prepares AAI143-H53 enquiries around the complete manufacturer label, requested quantity and destination. For controlled replacements, include the host-system record, field photographs and configuration evidence that apply to this exact execution.
Send the complete AAI143-H53 label, requested quantity and destination.
