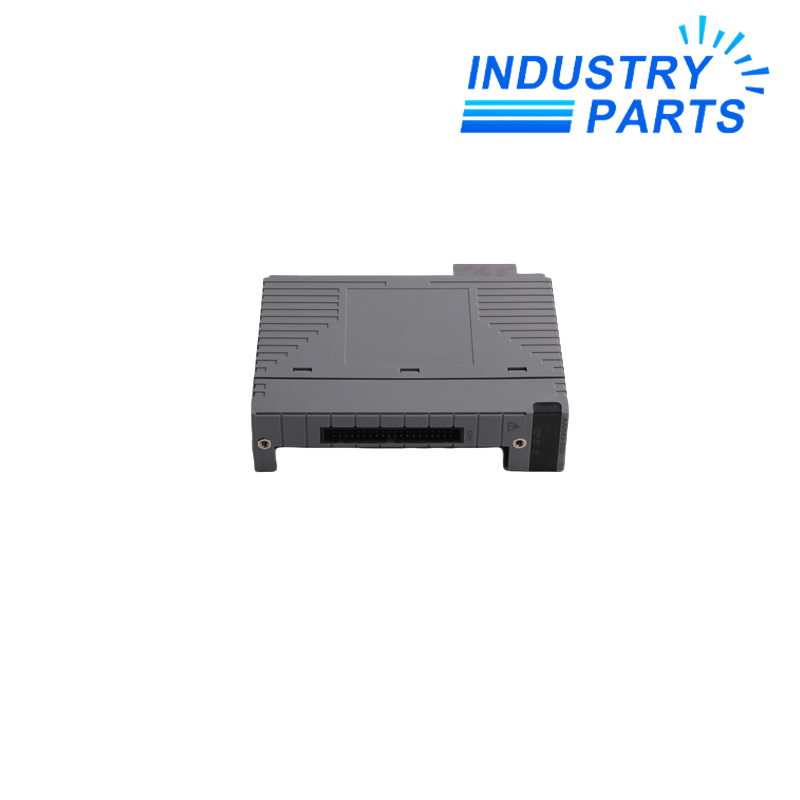

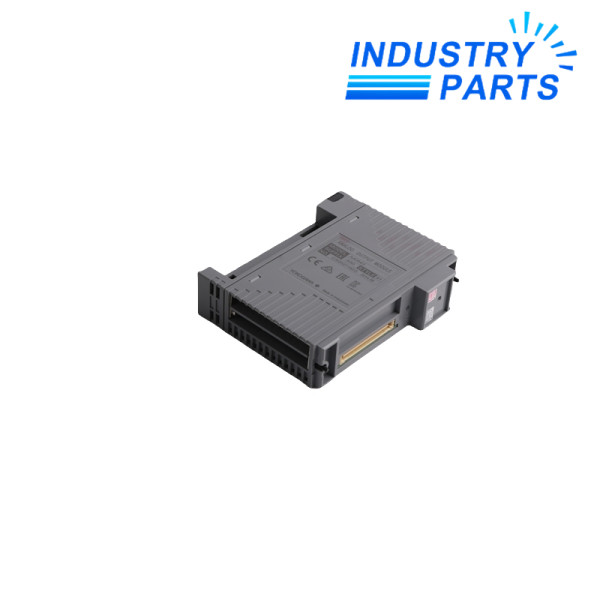

Yokogawa AAI543-S50 CENTUM VP 16-Channel Isolated Analog Output Module
A sixteen-channel isolated current-output module with the standard redundant switchover response and the complete S50 execution retained.
Technical Summary
PRODUCT CONTEXTAAI543-S50 is a Yokogawa CENTUM VP current-output module with sixteen isolated 4–20 mA channels. The S50 execution belongs to the standard redundant-switchover group and is supplied without the front status display.
Two identical modules with the same switchover response can form a dual-redundant pair. Yokogawa specifies a maximum period of 100 ms below 4 mA during a standard-response switchover, so the paired module and field-device response must be reviewed together.
Specifications
CONTROLLED DATA16, isolated
4–20 mA
Standard; identical module required for a redundant pair
0–750 Ω
Below 0.65 mA
±48 µA
10 ms
±16 µA per 10 °C
230 mA at 5 V DC; 540 mA at 24 V DC
Pressure-clamp terminal, MIL connector cable or KS1 dedicated cable
Features
FUNCTIONAL DISTINCTIONSIsolated current paths
Each of the sixteen outputs is isolated for controlled analog signal delivery.
Redundant service option
A matched AAI543-S50 pair can provide Yokogawa standard-response output switchover.
Published load envelope
The 0–750 Ω load range and 10 ms update period define the field-loop boundary.
Complete execution control
The S50 suffix keeps display, environmental and redundant-response selections visible.
Compatibility
SELECTION BOUNDARIESRedundant partner
Use an identical module with the same suffix and standard switchover response.
Field loops
Confirm supply margin, total loop resistance, receiving-device range and channel assignment.
Termination route
Match the installed pressure-clamp block, MIL cable or KS1 dedicated cable arrangement.
Replacement
SERVICE WORKFLOWRecord
Capture AAI543-S50, node position, terminal or cable identity, channel scaling and redundant-partner label.
Exchange
Apply the approved FCS maintenance procedure and retain every field conductor and channel assignment.
Validate
Prove commanded current, receiving-device response, diagnostics and redundant switchover where configured.
FAQ
CUSTOMER DECISION SUPPORTWhat distinguishes AAI543-S50 from the fast-response AAI543 execution?
The S50 execution uses Yokogawa’s standard redundant-switchover response rather than the fast-response suffix group.
What should accompany a AAI543-S50 quotation?
Provide both redundant module labels when applicable, the node slot, termination type and the sixteen-channel loop schedule.
Can a different AAI543 suffix be paired with AAI543-S50?
A redundant pair requires two identical modules with the same switchover response, so the complete suffix must match.
Which loop condition deserves review before fitting AAI543-S50?
Confirm that total field-loop resistance remains within the published 0–750 Ω range.
How is AAI543-S50 accepted after service?
Document commanded 4–20 mA values, receiving-device response, diagnostics and any approved switchover test.
