Receives thirty-two 24 VDC ON/OFF signals for CENTUM control applications.
Product Overview

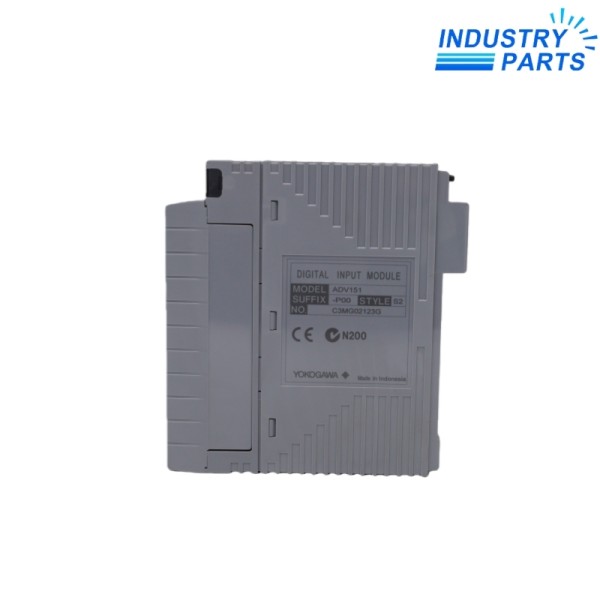

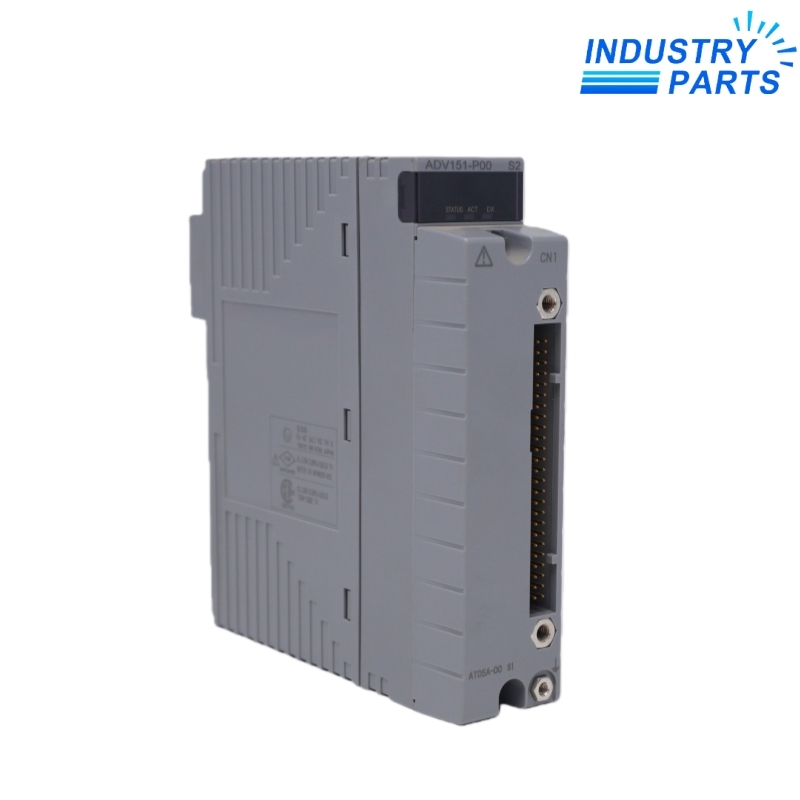

ADV151-P00 is a Yokogawa Digital Input Module for CENTUM field I/O. It accepts thirty-two 24 VDC input channels and provides input-to-system isolation.
The -P suffix identifies pushbutton-input capability. In the P00 execution, the first 0 denotes no status display and no explosion-protection suffix, and the final 0 denotes the basic type.
The inputs are commoned in groups of sixteen, and all 24 VDC signals within a common group must use the same polarity.
Performance
Provides status-input and pushbutton-edge counting functions.
Supports dual-redundant module arrangements where the CENTUM configuration permits.
Maintains two 16-channel common groups with controlled field polarity.
Technical Details
| Manufacturer | Yokogawa |
|---|---|
| Exact model | ADV151-P00 |
| Product family | CENTUM FIO Digital I/O |
| Input channels | 32 |
| Rated input | 24 VDC, sink/source |
| Input ON voltage | 18 to 26.4 VDC |
| Input OFF voltage | 5.0 VDC or less |
| Input current | 4.1 mA ±20% per channel at rated voltage |
| Maximum allowable input | 30.0 VDC |
| Input response | 8 ms or less for status input |
| Minimum ON detection | 20 ms for pushbutton input |
| Maximum pushbutton cycle | 25 Hz |
| Current consumption | 500 mA at 5 VDC maximum |
| Suffix -P | With pushbutton input |
| Suffix 00 | Without status display / no explosion protection; basic type |
System Integration
- Install only in a supported CENTUM FIO field control or ESB-bus node arrangement.
- Match the terminal block or dedicated/MIL cable option used by the installed station.
- Keep both 16-channel common groups and their signal polarity visible in the wiring record.
- Confirm redundancy, software release and node-unit rules in the applicable Yokogawa project documentation.
Applications
- Status and pushbutton inputs in process-control and utility systems.
- Thirty-two-point 24 VDC field input concentration in CENTUM FIO stations.
- Redundant input arrangements where the approved system design specifies ADV151.
- Modernization and spare replacement with exact suffix and terminal-accessory control.
About IndustryParts
https://www.industryparts.com/Suffix and terminal arrangement stay in one record
IndustryParts reviews ADV151-P00 with its node unit, field-accessory choice, common polarity and redundancy role before supply.
- P00 execution retained
- Common groups documented
- Terminal option requested
FAQ
What must be included when requesting ADV151-P00?
Provide the complete ADV151-P00 label, node-unit and controller identity, slot, terminal or cable accessory, redundancy arrangement and required quantity.
Can ADV151-P00 replace an ADV151-E execution?
Do not assume interchangeability. -P provides pushbutton input while -E provides SOE capture; application function and project configuration differ.
What field detail is easy to miss when replacing ADV151-P00?
The inputs share commons in groups of sixteen, and signals in each common group must use the same polarity. Preserve the exact common and terminal map.
How should a redundant ADV151-P00 pair be serviced?
Follow the Yokogawa online-maintenance procedure, confirm the healthy partner and diagnostics, control the affected inputs, then verify redundancy after insertion.
What proves ADV151-P00 is ready for service?
Confirm exact suffix, healthy module diagnostics, correct common polarity, point-by-point status operation, pushbutton detection where used and redundancy health.
