Executes the field-control-station application within the supported AFV10 FCU.
Product Identification

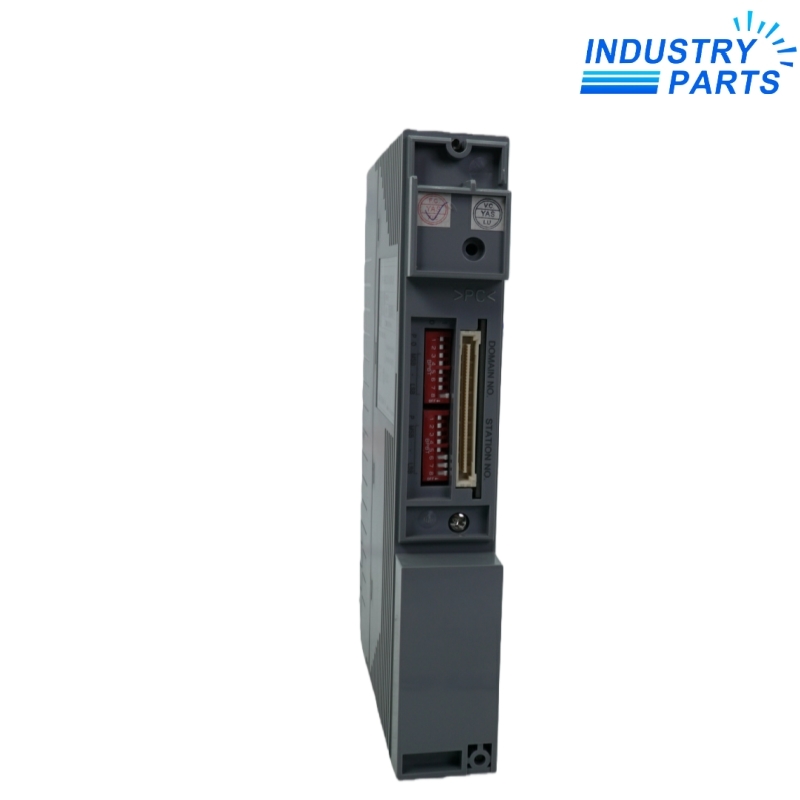

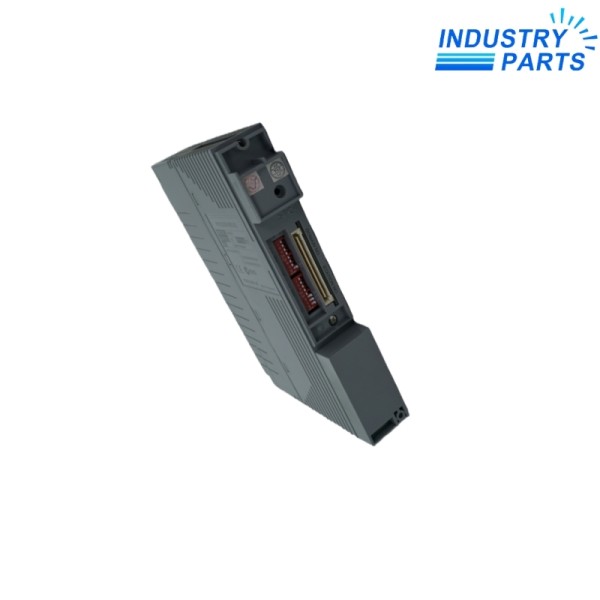

CP451-10 is a Yokogawa processor module for CENTUM VP field control units AFV10S and AFV10D. The product family can be installed in single or duplex field-control arrangements, so the surrounding FCU and partner-processor records are part of correct identification.
The -10 basic specification must remain in the purchase and asset record. Hazardous-location executions use separate coded identities and should not be inferred from the CP451 base number.
Engineering Data
| Manufacturer | Yokogawa Electric Corporation |
|---|---|
| Exact Model | CP451-10 |
| Control System | CENTUM VP |
| Product Type | FCS processor module |
| Compatible FCS Types | AFV10S and AFV10D |
| Controller Arrangement | Single or duplex according to the FCU model |
| Network Context | Vnet/IP field control station |
| Firmware Control | Record the installed Vnet/IP firmware revision |
| Security Maintenance | Yokogawa service action is required for applicable Vnet/IP firmware updates |
| Identity Rule | Match CP451-10, FCU type and partner module |
Functions
Participates in the controller and Vnet/IP communication architecture defined by CENTUM VP.
Supports the AFV10D duplex arrangement when installed and configured as an approved pair.
Reports module and communication status through the CENTUM VP maintenance environment.
Applications
- Process control in CENTUM VP systems using AFV10S single or AFV10D duplex field control units.
- Controller replacement where the exact CP451 execution and project release are preserved.
- Lifecycle maintenance requiring the processor, FCU, network and firmware records to remain aligned.
- Hazardous-location installations only when the full module and FCU certifications for that installation are confirmed.
Lifecycle
- Back up the CENTUM VP project and capture processor, Vnet/IP and FCU revision information.
- For a duplex station, record active/standby roles and verify partner compatibility before removal.
- Review Yokogawa security advisories for the installed Vnet/IP firmware; applicable updates are performed by Yokogawa service personnel.
- After replacement, verify station download, controller status, Vnet/IP communication and a controlled switchover where redundancy is used.
About IndustryParts
https://www.industryparts.com/Controller redundancy context is preserved
IndustryParts matches CP451-10 to the AFV10 field control unit, CENTUM VP release and installed single or duplex arrangement.
- Basic suffix retained
- FCU type confirmed
- Firmware baseline recorded
FAQ
Why can a healthy CP451-10 fail to pair in an AFV10D?
Revision, firmware, project or redundancy-state differences can prevent normal duplex operation even when both modules power up.
What should accompany a CP451-10 enquiry?
Provide both processor labels in a duplex system, the AFV10 FCU model, CENTUM VP release, Vnet/IP firmware and maintenance screen status.
Can plant personnel update all CP451-10 firmware directly?
Yokogawa advisories state that the applicable Vnet/IP firmware update is performed by Yokogawa service personnel.
How should an AFV10D replacement using CP451-10 be accepted?
Confirm application equality, communication health, active/standby status and a planned switchover without process disruption.
Why must -10 remain in the CP451-10 record?
The suffix identifies the ordered execution and prevents a base CP451 reference from being confused with other coded or certified variants.
