Provides sixteen 24 V DC digital output channels in one ProSafe-RS module.
Technical Summary

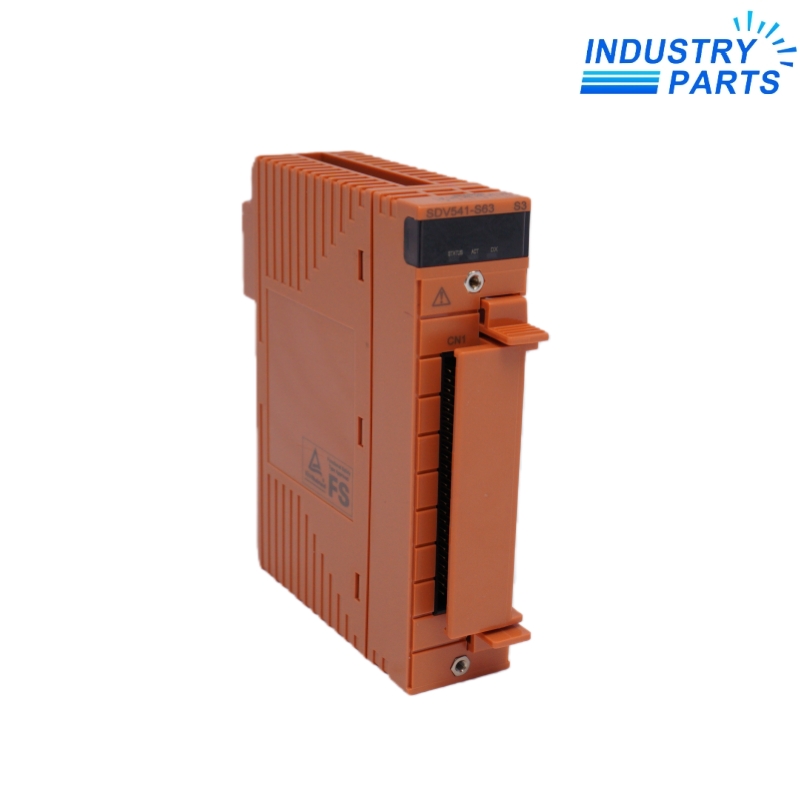

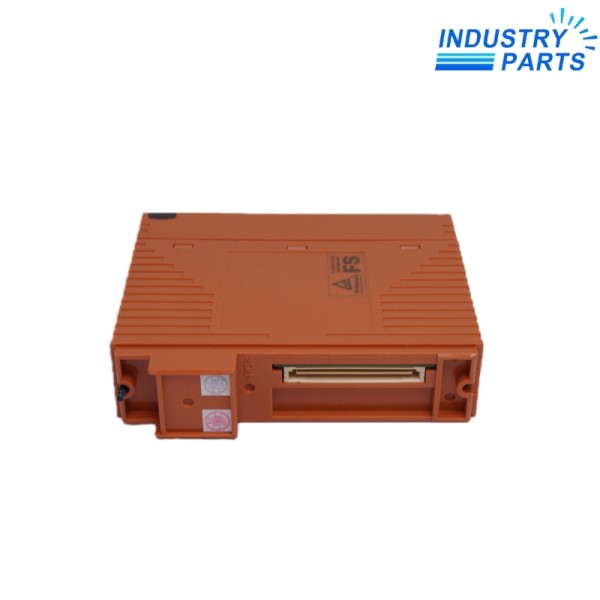

SDV541-S63 is a Yokogawa ProSafe-RS digital output module. Manufacturer system documentation identifies the SDV541-S6 family as a 24 V DC, module-isolated output interface with 16 channels and Yokogawa-specific cable connections.
The complete S63 model must remain in the asset and purchase record. Compatible cable planning uses the applicable AKB331 or AKB651 family and the option-coded length or termination required by the cabinet design.
Specifications
| Manufacturer | Yokogawa Electric Corporation |
|---|---|
| Exact Model | SDV541-S63 |
| Product Family | ProSafe-RS |
| Product Type | Digital output module |
| Nominal Field Voltage | 24 V DC |
| Channel Count | 16 |
| Isolation Method | Module isolation |
| Field Interface | Yokogawa-specific cables |
| Documented Cable Families | AKB331-M□□□ and AKB651-M□□□ |
| Safety Context | ProSafe-RS safety instrumented system |
| Identity Rule | Retain the complete SDV541-S63 suffix and installed cable option |
Features
Uses module-level isolation as documented for the SDV541-S6 family.
Connects through defined Yokogawa cable assemblies rather than ad-hoc field wiring.
Keeps the module, cable, node and safety-application records traceable as one maintained circuit.
Compatibility
- Confirm SDV541-S63 on the installed label and record the safety-node type, system release and slot assignment.
- Identify the exact AKB331 or AKB651 cable assembly, including its option-coded length and termination.
- Verify the field load, 24 V supply, common arrangement and cabinet terminal mapping for all sixteen channels.
- Use the Yokogawa ProSafe-RS hardware and application procedure that applies to the installed node and certified safety lifecycle.
Replacement
- Place affected safety functions in the approved bypass or shutdown state and record all overrides.
- Back up the ProSafe-RS application and export module, channel and diagnostic records.
- Photograph both module and cable labels before disconnecting the Yokogawa-specific interface.
- Install the exact module and verify cable seating, field supply and channel diagnostics before download.
- Proof-test every affected final-element path and clear bypasses only under the site safety procedure.
FAQ
Which cable information should accompany an enquiry for SDV541-S63?
Provide the full AKB331 or AKB651 cable code, length option, cabinet termination and photos of both cable ends.
Can another SDV541 suffix replace SDV541-S63?
Only after Yokogawa documentation confirms the node, cable interface, suffix options and safety-system release; a shared SDV541 prefix is insufficient.
What records are required before removing SDV541-S63?
Save the application checksum, slot assignment, channel mapping, diagnostics, active overrides and proof-test status for every affected loop.
Why can a new SDV541-S63 show output faults after installation?
Incorrect cable selection, missing 24 V field power, common or terminal mismatch, an open load or an application mismatch can all remain external to the module.
How is a replacement SDV541-S63 accepted in a safety system?
Complete the approved channel and final-element proof tests, verify diagnostics and application identity, then formally remove bypasses under the site functional-safety procedure.
About IndustryParts
https://www.industryparts.com/Safety output identity remains complete
IndustryParts supplies SDV541-S63 with its 24 V, 16-channel module-isolated execution and Yokogawa cable plan documented.
- S63 suffix retained
- Cable family checked
- Safety record preserved
