Safety-system supply role
Feeds the ProSafe-RS backboard rails used by the installed processor and I/O modules.

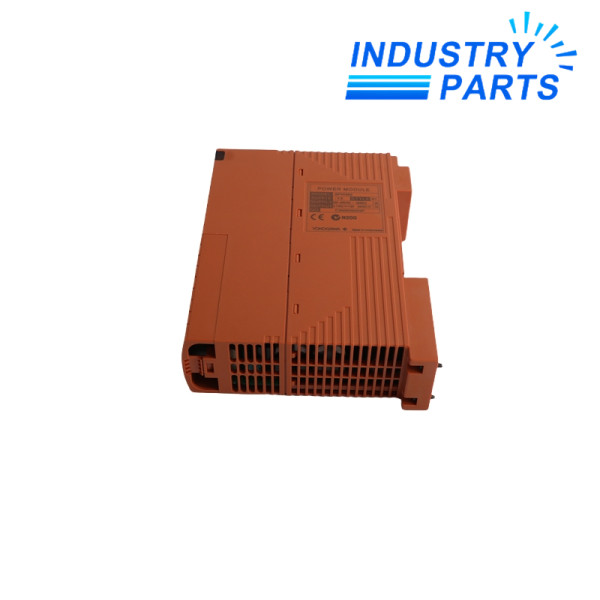

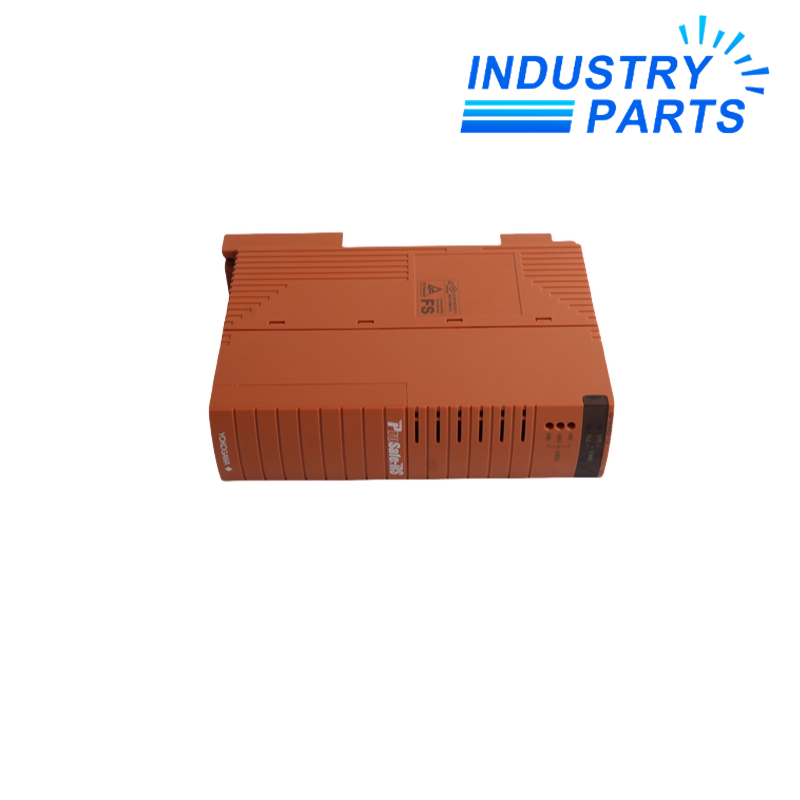

Yokogawa SPW482-53 S1 Power Supply Module
Item NO.: SPW482-53 S1
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameYokogawa SPW482-53 S1 Power Supply Module
- Item NO.SPW482-53 S1
- Weight0.8800 kg = 1.9401 lb = 31.0411 oz
- CategoryDCS
- BrandYOKOGAWA
- Creation Time2025-01-09
PROSAFE-RS SUPPLY · 220–240 V AC · -53 EXECUTION
Yokogawa SPW482-53 ProSafe-RS 220–240 V AC Power Supply Module
A ProSafe-RS power module that converts a 220–240 V AC source into the insulated backboard supply rails.
PRODUCT CONTEXT
Overview
SPW482-53 is the -53 execution of Yokogawa SPW482, the 220–240 V AC input power-supply module listed for ProSafe-RS. Yokogawa documents isolated +5 V and +24 V outputs for the installed modules and supports dual-redundant output operation.
The -53 code is retained exactly because Yokogawa compliance documentation identifies -53 as a controlled suffix. The host safety-system record and approved maintenance procedure remain essential to replacement.
CONTROLLED DATA
Specs
Manufacturer
Yokogawa
Exact model
SPW482-53
Safety platform
ProSafe-RS
Base family
SPW482
Input supply
220–240 V AC
Published outputs
Isolated +5 V DC and +24 V DC
Redundancy
Dual-redundant insulated output supported
Status indicators
SYS and FLD
Check terminals
+5 V, +24 V and GND
Recommended replacement
8 years at average ambient temperature ≤40 °C
Suffix record
-53 retained as the exact execution
FUNCTIONAL DISTINCTIONS
Features
Redundant power support
Participates in the documented dual-redundant output arrangement.
Front status checking
Provides SYS and FLD indications plus maintenance check terminals.
Execution traceability
Keeps the -53 suffix visible through safety-system change control.
FIELD CONTEXT
Applications
ProSafe-RS cabinet maintenance
Replacing a documented 220–240 V AC supply in a safety-system cabinet.
Redundant power restoration
Returning a dual-supply arrangement to its approved state after service.
Lifecycle planning
Using ambient history and the manufacturer replacement-cycle reference to schedule renewal.
SERVICE SEQUENCE
Lifecycle
Authorize
Record the safety function impact, host unit, redundancy state, alarms and full SPW482-53 label.
Exchange
Apply the ProSafe-RS maintenance and power-isolation procedure; preserve supply and grounding connections.
Validate
Confirm both supply indications, normal module diagnostics and the approved safety-system restoration tests.
CUSTOMER QUESTIONS
FAQ
Which records should accompany an SPW482-53 enquiry?
Provide the -53 label, ProSafe-RS host model, power input, redundancy position, alarm history and quantity.
Is PW482-50 the same as SPW482-53?
No. Both use a 220–240 V AC base family, but the SPW and PW identities belong to different controlled product records.
What do SYS and FLD indicate on SPW482-53?
They show correct +5 V and +24 V output operation as described by Yokogawa.
Why must the safety-system procedure govern SPW482-53 replacement?
Changing a supply can affect redundant power and the availability state of the installed ProSafe-RS hardware.
What proves SPW482-53 is accepted after service?
Normal supply status, stable diagnostics and completion of the approved safety-system restoration checks are required.
