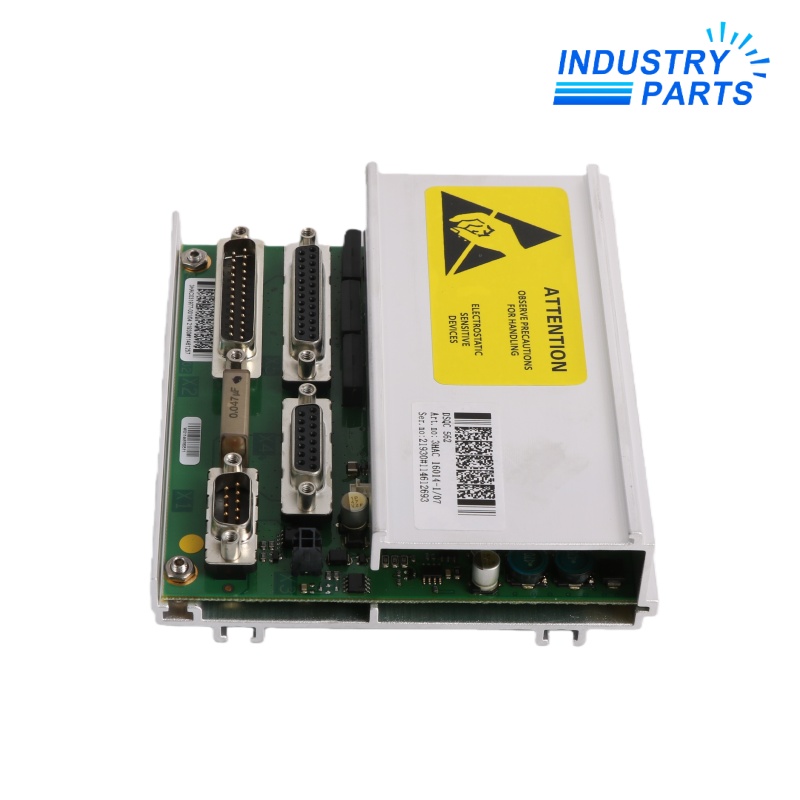

ABB DSQC562 3HAC16014-1 Serial Measurement Unit

The ABB DSQC236G is a dedicated Serial Measurement Unit designed for use in ABB robot control cabinets (for example those running the S4C+ controller family). Its primary role is to handle high‑precision measurement and serial data acquisition—interfacing with sensors or encoders to supply real‑time position/feedback data into the robot controller’s CPU and I/O architecture.

Product Model:DSQC236G

Product Parameters:Robot Axis Drive Board

Manufacturer:ABB

Supply Voltage:24V DC (±10%)

Power Consumption:8W (max)

Encoder Inputs:2x (differential RS422)

Resolution:20-bit absolute

Update Rate:4kHz

Robot Bus:DSQC serial link

I/O Connection:16x digital I/O

Sales manager:Leonia

E-mail:sales@mvme.cn

Phone:+8618030175807(whatsapp)

Factory Automation

Process Control Systems

Robotics & Machine Control

Material Handling Systems

Energy & Utilities Control

Automated Testing & Inspection

Warranty: 12-month manufacturer warranty on all products.

Shipping Cost: Calculated based on weight, courier choice, and destination.

Shipping Method: Ships via DHL, FedEx, TNT, UPS, EMS, or as per customer request.

Packaging: Each item carefully inspected and securely packaged before dispatch.

Customer Service: Contact us anytime for questions or additional information.
