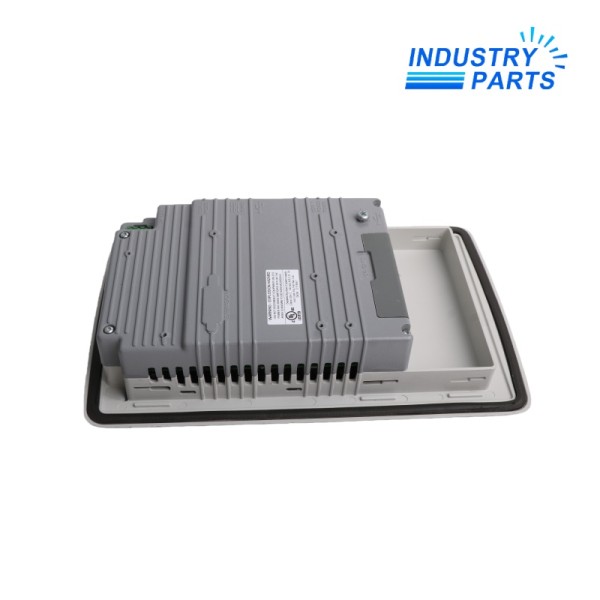

ABB PP836 3BSE042237R1 Operator Panel
A 6.5-inch Panel 800 function-key operator panel with 640 × 480 color display for industrial HMI service.
Product Overview

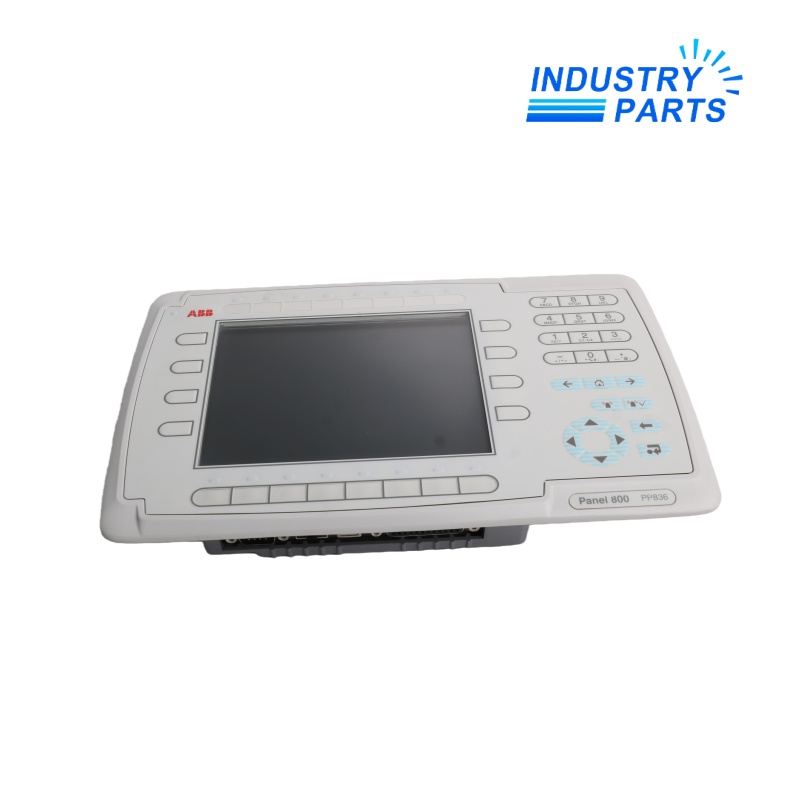

PP836, article number 3BSE042237R1, is an ABB Panel 800 operator panel with a 6.5-inch 64K-color TFT display and 640 × 480 resolution. It uses function-key interaction and includes sixteen two-color indicators.
Replacement planning must retain the PP836 identity, application backup, communication settings, cutout, power arrangement and peripheral connections. The HMI application and runtime compatibility are as important as the physical panel fit.
Performance
- Presents process graphics on a 6.5-inch 64K-color TFT display.
- Provides 640 × 480 pixel operator visualization.
- Uses function-key interaction for machine and process operation.
- Includes sixteen two-color indicators for configured status functions.
- Supports a compact panel-mounted HMI arrangement within the Panel 800 family.
Technical Details
| Manufacturer | ABB |
|---|---|
| Model | PP836 |
| Article Number | 3BSE042237R1 |
| Product Family | Panel 800 |
| Product Type | Function-key operator panel |
| Display | 6.5-inch 64K-color TFT |
| Resolution | 640 × 480 pixels |
| Indicators | 16 two-color indicators |
| Normal / Maximum Current | 0.4 A / 0.9 A |
| Outer Dimensions | 285 × 177 × 60 mm |
| Panel Cutout | 246 × 139 mm |
| Mounting Depth | 55 mm |
| Replacement Control | Match application, runtime, communications, cutout and power |
System Integration
- Back up the PP836 application, communication drivers, recipes, passwords and site-specific settings.
- Record article number 3BSE042237R1, firmware/runtime information, power wiring, ports, cables and panel cutout.
- Protect controller operation and place the machine in the approved state before disconnecting the HMI.
- Restore the validated application and confirm every communication path and peripheral.
- Test all screens, function keys, indicators, alarms, recipes, user access and restart behavior.
Applications
- Panel-mounted machine and process visualization.
- Operator control using physical function keys and status indicators.
- Legacy Panel 800 replacement where the exact application and cutout are retained.
- HMI service requiring controlled application backup and communication validation.
FAQ
What should accompany a PP836 quotation request?
Provide the PP836 and 3BSE042237R1 labels, application backup, runtime version, controller type, communication cables, power details and cutout photographs.
Can a newer touchscreen replace PP836 without application work?
Not automatically. Screen size, cutout, runtime, drivers, key behavior, indicators and project conversion all require engineering validation.
How should a PP836 spare be prepared before site delivery?
Verify identity and condition, load only the approved application when authorized, and record the runtime, checksum and communication test results.
What should be checked if PP836 powers up but shows no process data?
Review controller status, network or serial settings, cable pinout, driver configuration, node addressing and application version.
Which PP836 functions need an acceptance test?
Exercise every display page, function key, indicator, alarm, recipe, user level, communication path and controlled restart.
