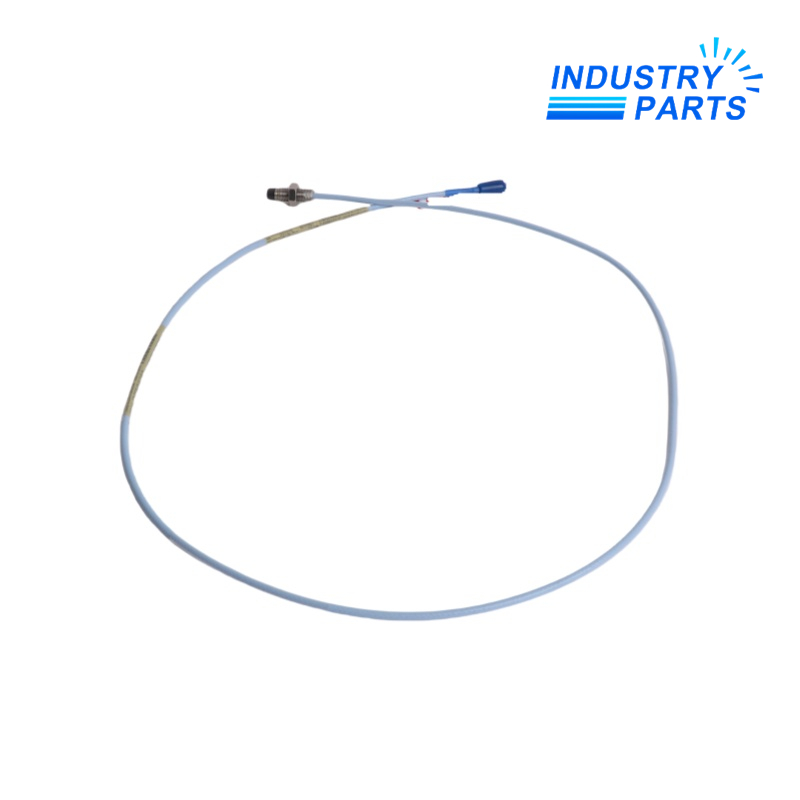

330101-00-08-05-02-00 is a standard Bently Nevada 3300 XL 8 mm proximity probe with a 3/8-24 UNF threaded case and no cable armor. Its configuration has 0.0 inch unthreaded length, 0.8 inch overall case length and 0.5 m (1.6 ft) total electrical length.

The probe uses a miniature coaxial ClickLoc connector with standard cable. The 00 suffix indicates that an agency approval option is not required.

• Forms the sensing element of a compatible 3300 XL 8 mm proximity transducer system.
• Supports radial vibration, axial position, eccentricity, speed and Keyphasor reference measurements when configured in the appropriate monitoring system.
• Provides a 2 mm linear range as part of a correctly matched 3300 XL system.
• Uses a 75 Ω triaxial FEP-insulated probe cable and miniature ClickLoc coaxial connector.
• Supports complete component interchangeability within correctly selected 3300 XL 8 mm system lengths.

• Match 330101-00-08-05-02-00 to a Proximitor Sensor and extension cable whose combined electrical length equals the selected system length.
• Maintain the documented probe gap and target geometry when setting radial vibration or position measurements.
• Keep the probe-tip separation appropriate for the measurement orientation to limit cross-talk.
• Protect the standard, unarmored probe cable from abrasion, sharp bends and mechanical loading.
• Do not treat the 00 approval suffix as authorization for hazardous-area installation.

• Keep the full 330101-00-08-05-02-00 option string in maintenance records so case length, electrical length, cable and approval details remain clear.
• Replace the probe with the same thread, case geometry and system-length configuration unless the complete transducer loop is re-engineered.
• Check extension-cable and Proximitor Sensor length coding before installing a spare.
• Inspect the ClickLoc connection and cable route during planned machinery outages.
• Re-establish probe gap and verify monitoring-channel behavior after probe replacement.
