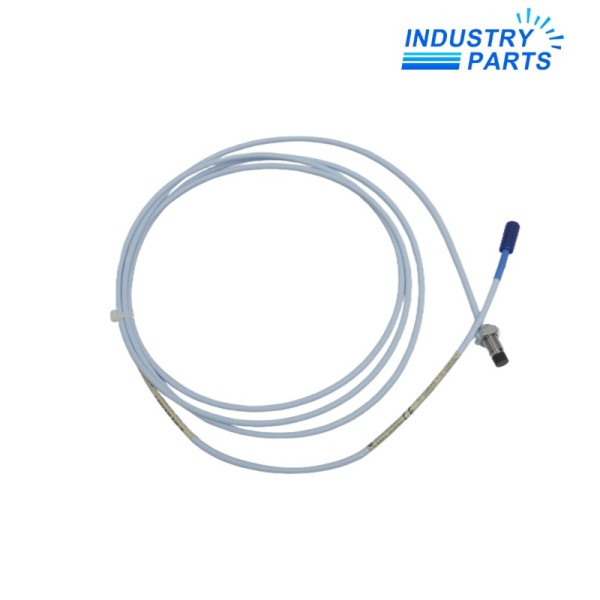

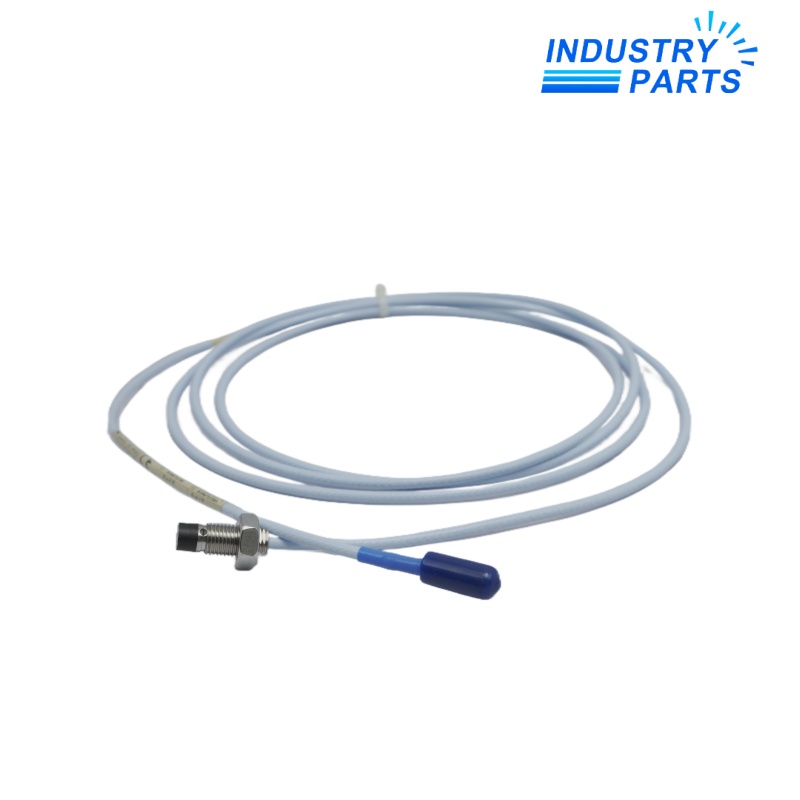

330101-00-20-05-02-00 is a Bently Nevada 3300 XL 8 mm proximity probe with a 3/8-24 UNF threaded case and an unarmored cable. Its ordering code specifies 0.0 inch unthreaded length, a 2.0 inch overall case and 0.5 m (1.6 ft) total electrical length.

The probe uses a miniature coaxial ClickLoc connector with standard cable and no connector protector. Approval option 00 specifies that an agency approval is not required.

• Provides non-contacting static position and dynamic vibration signals within a matched 3300 XL 8 mm transducer system.
• Uses a 3/8-24 UNF standard-mount probe case without cable armor.
• Combines a 2.0 inch case with 0.5 m (1.6 ft) probe electrical length for the defined installation geometry.
• Connects through the miniature ClickLoc coaxial interface using standard cable.
• Supports documented component interchangeability when the correct 3300 XL family and total system length are maintained.

• Radial shaft-vibration monitoring on fluid-film bearing machinery.
• Axial shaft-position and thrust-position measurement.
• Eccentricity and shaft-centerline measurement.
• Speed and Keyphasor phase-reference sensing.
• General-area installations where an agency approval option is not required.

• Retain the complete 330101-00-20-05-02-00 identifier so case length, electrical length, connector and approval selections remain traceable.
• Record the connected extension cable and Proximitor Sensor system length before disconnecting the probe.
• Protect the unarmored cable from abrasion, excessive bending and connector loading during removal and routing.
• Preserve the 2.0 inch case geometry and 0.5 m (1.6 ft) electrical-length selection when replacing the installed probe.
• Re-establish the probe gap and verify the monitor channel before returning machinery protection to service.
