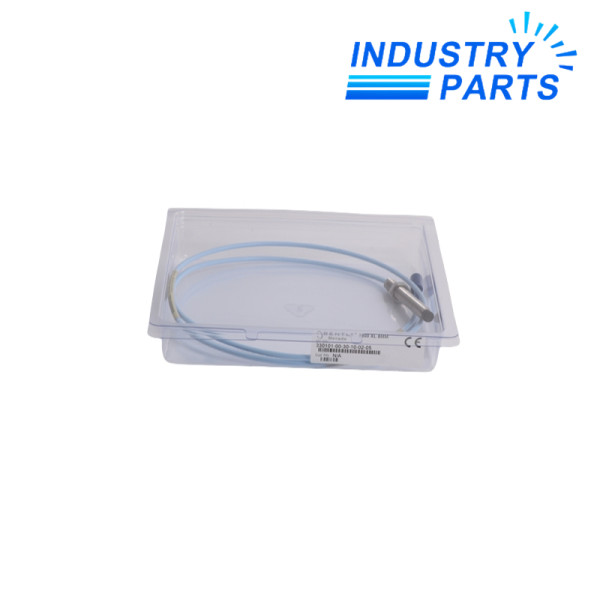

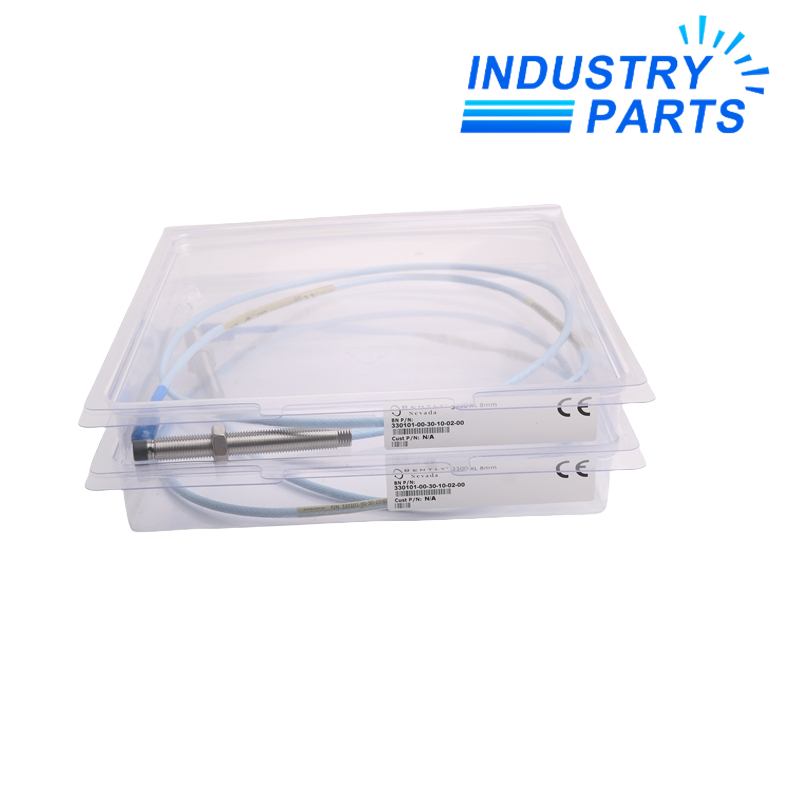

330101-00-30-10-02-00 is a Bently Nevada 3300 XL 8 mm proximity probe with a 3/8-24 UNF threaded case and no cable armor. Its option code specifies 0.0 inch unthreaded length, a 3.0 inch case and 1.0 m (3.3 ft) total electrical length.

The probe uses a miniature coaxial ClickLoc connector with standard cable and no connector protector. The final suffix specifies that an agency approval is not required.

• Provides non-contacting static position and dynamic vibration signals in a matched 3300 XL 8 mm transducer system.
• Combines a 3.0 inch case with 1.0 m (3.3 ft) total electrical length for the encoded installation geometry.
• Uses the 3/8-24 UNF standard-mount case without probe-cable armor.
• Connects through the miniature coaxial ClickLoc interface using standard cable.
• Supports documented component interchangeability when the correct system family and electrical length are maintained.

• Radial shaft-vibration monitoring on fluid-film bearing machinery.
• Axial shaft-position and thrust-position measurement.
• Eccentricity and shaft-centerline measurement.
• Speed and Keyphasor phase-reference sensing.
• General-area installations where an agency approval option is not required.

• Keep the complete 330101-00-30-10-02-00 option string so the case, cable and approval selections remain traceable.
• Record probe, extension-cable and Proximitor Sensor length codes before disconnecting the loop.
• Protect the unarmored lead from abrasion, excessive bending and connector loading during routing.
• Preserve the 3.0 inch case and 1.0 m (3.3 ft) electrical-length selection during replacement.
• Re-establish the probe gap and verify the monitor channel before returning machinery protection to service.
