Bently Nevada 330106-05-30-10-02-05 3300 XL 8 mm Reverse Mount Probes

Bently Nevada 330106-05-30-10-02-05 3300 XL 8 mm Reverse Mount Probes

Item NO.: 330106-05-30-10-02-05
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameBently Nevada 330106-05-30-10-02-05 3300 XL 8 mm Reverse Mount Probes
  • Item NO.330106-05-30-10-02-05
  • Weight1.0000 kg = 2.2046 lb = 35.2740 oz
  • CategoryTSI
  • BrandBently Nevada
  • Creation Time2025-02-07
  • 3300 XL 8 mm Reverse Mount Probe
Bently Nevada · Industrial Automation

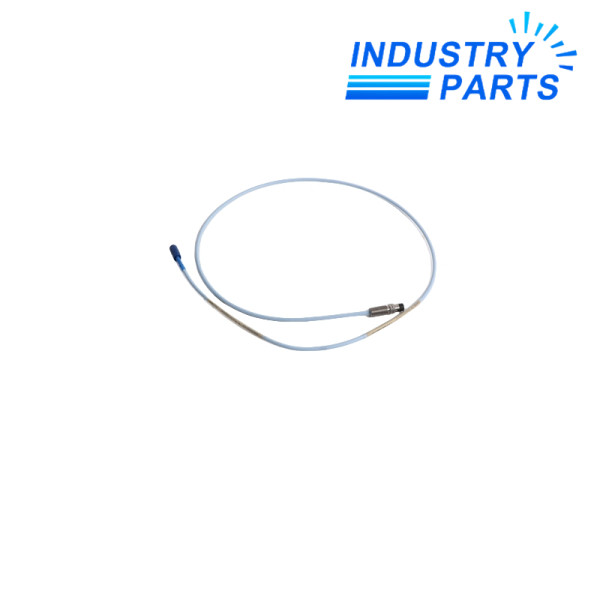

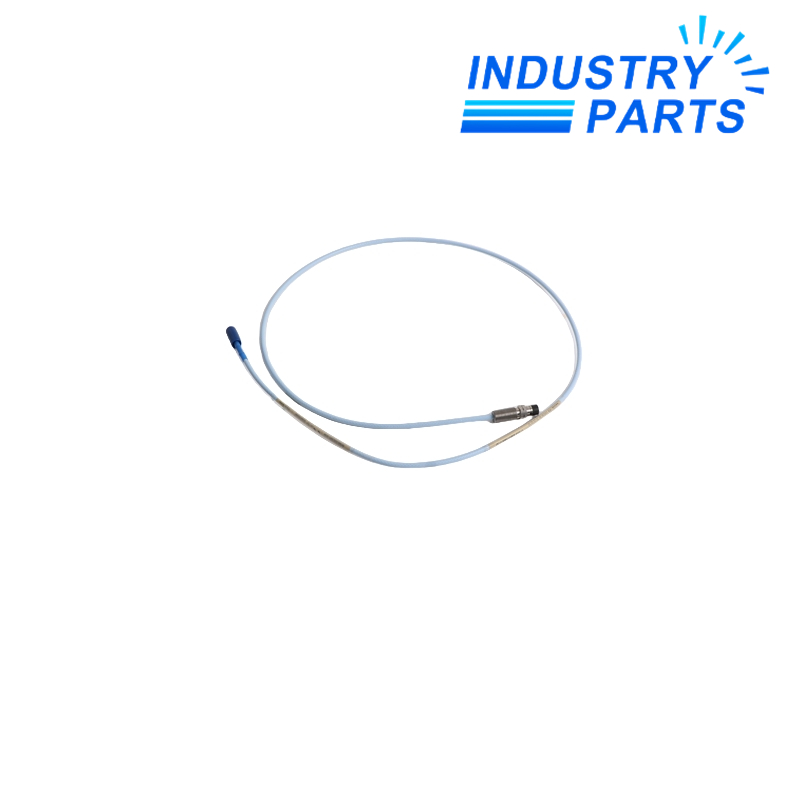

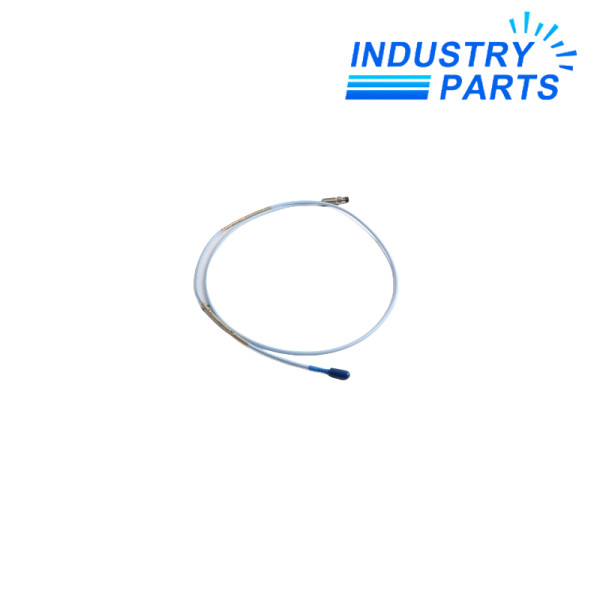

Bently Nevada 330106-05-30-10-02-05 3300 XL 8 mm Reverse Mount Probe

Approved M10 × 1 reverse-mount 3300 XL 8 mm probe with 1.0 m length and ClickLoc connector.

Product Identity

Product Overview

The 330106-05-30-10-02-05 is approved M10 × 1 reverse-mount 3300 XL 8 mm probe with 1.0 m length and ClickLoc connector.

Operating Characteristics

Performance

Total length 1.0 m (3.3 ft)
Thread M10 × 1
Connector Miniature coaxial ClickLoc, standard cable
Agency approvals CSA, ATEX, IECEx
Measurement principle Non-contact eddy-current proximity sensing
Official Data

Technical Details

Part number 330106-05-30-10-02-05
Family 3300 XL 8 mm Proximity Transducer System
Probe type Reverse mount
Length code 10
Connector code 02
Approval code 05
System Fit

System Integration

Use with compatible 3300 XL extension cable and Proximitor Sensor components.
Match total probe and extension-cable length to the Proximitor Sensor system length.
For hazardous-area use, follow the applicable certification and installation drawing requirements.
Use the reverse-mount mechanical arrangement specified for the M10 × 1 probe body.
Typical Uses

Applications

Relative shaft vibration
Shaft position measurement
Rotating-machinery protection systems
Hazardous-area machinery monitoring when the complete certified installation conditions are met
Product Questions

FAQ

1. What does the final 05 mean?
It specifies CSA, ATEX and IECEx agency approvals.
2. How long 330106-05-30-10-02-05 the probe?
The total length option 10 specifies 1.0 meter.
3. What thread does it use?
M10 × 1.
4. 330106-05-30-10-02-05 the connector a ClickLoc type?
Yes. Option 02 is the miniature coaxial ClickLoc connector with standard cable.
5. Can it directly replace the -00 approval version?
Mechanically the ordering structure is similar, but approval requirements must be checked for the complete installation before substitution.
Product Inquiry
Need 330106-05-30-10-02-05?
Contact us for availability, quotation, lead time and international shipping information.
