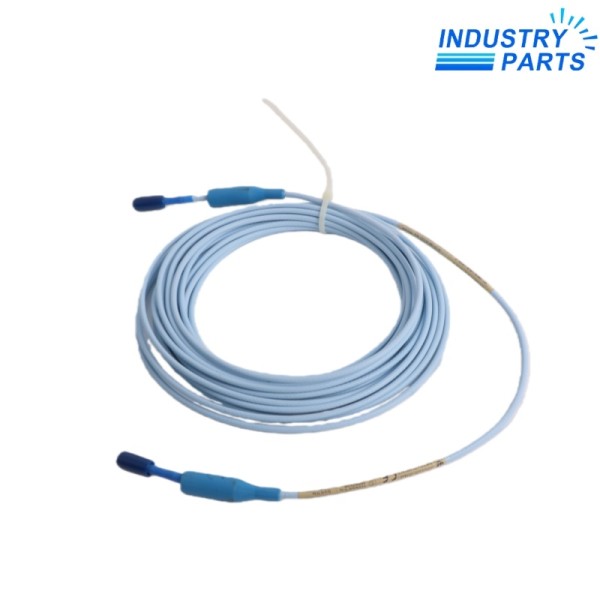

Bently Nevada 330130-080-02-05 Proximity Probes
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameBently Nevada 330130-080-02-05 Proximity Probes
- Item NO.3429971
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryTSI
- BrandBently Nevada
- Creation Time2025-11-04
- Bently Nevada Proximity Probe Housing Assemblies
330130-080-02-05
Overview

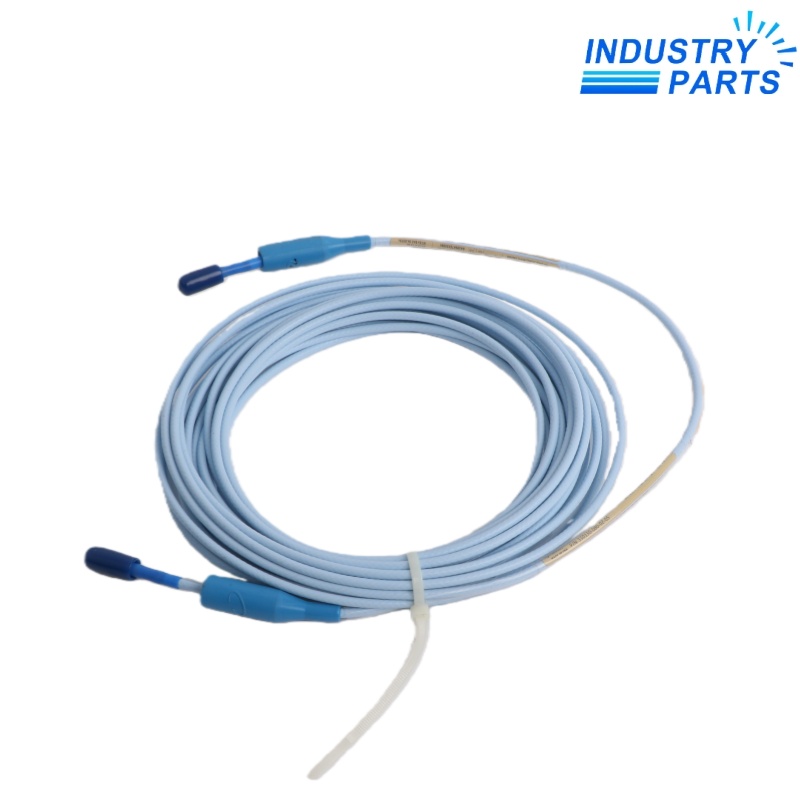

330130-080-02-05 is a high-precision standard extension cable from Bently Nevada's 3300 XL Proximity Transducer System. It serves as the critical interconnect between the 3300 XL 8mm proximity probe and the Proximitor sensor, designed to extend signal transmission distance while preserving signal integrity.
The model number 330130-080-02-05 breaks down as follows: 330130 indicates the 3300 XL extension cable series; 080 designates an 8.0 meter (26.2 feet) cable length; 02 indicates a standard cable with a connector protector; and 05 signifies compliance with CSA, ATEX, and IECEx hazardous area approvals.
The 3300 XL 8mm Proximity Transducer System consists of three components: the 3300 XL 8mm probe, the 3300 XL extension cable, and the 3300 XL Proximitor sensor. The system provides an output voltage proportional to the distance between the probe tip and the conductive target surface. All components are fully interchangeable without separate matching or bench calibration.
- Bently Nevada 3300 XL Series
- Standard extension cable
- 8.0 m (26.2 ft) length
- ClickLoc miniature coaxial connectors
- Hazardous area certified
Specifications
Electrical specifications
| Manufacturer | Bently Nevada |
| Model | 330130-080-02-05 |
| Product type | Standard Extension Cable |
| Product family | 3300 XL Proximity Transducer System |
| Cable length | 8.0 m (26.2 ft) |
| Cable type | Standard coaxial |
| Nominal DC resistance | 1.76 ± 0.26 Ω |
| Cable diameter | 7.9 mm (0.31 in) |
| Connector type | ClickLoc miniature coaxial |
| Agency approvals | CSA, ATEX, IECEx (Option 05) |
Physical & environmental
| Mounting | Between probe and Proximitor |
| Operating temperature | -51°C to +177°C |
| Connector protection | Integrated connector protector |
| System compatibility | 5mm and 8mm 3300 XL probes |
| Protection rating | IP65 |
Features
Signal integrity & connectivity
- Complete interchangeability — All 3300 XL 8mm probes, extension cables, and Proximitor sensors are fully interchangeable without separate matching or bench calibration.
- ClickLoc connector design — Miniature coaxial connectors provide a secure, vibration-resistant connection with tactile "click" confirmation for proper mating.
- Precise electrical impedance — Maintains the precise electrical impedance required for eddy current measurement, ensuring accurate vibration, displacement, and position data transmission.
Protection & reliability
- Integrated connector protector — The "02" option includes a protective sleeve that secures the ClickLoc connector, preventing loosening due to vibration and protecting from dust, oil, and moisture.
- Hazardous area certification — CSA, ATEX, and IECEx approvals (Option 05) enable use in environments requiring explosion protection.
- Wide temperature tolerance — Operates from -51°C to +177°C, suitable for demanding industrial environments.
Applications
The 330130-080-02-05 is widely deployed in mission-critical rotating machinery monitoring applications.
Lifecycle
Active currently in production — fully supported
Product status: The 330130-080-02-05 remains an active, supported product in Bently Nevada's 3300 XL portfolio. It continues to be the recommended extension cable for new installations and system expansions requiring 8.0 m length and hazardous area certification.
Spare parts & support: Replacement units are available through Bently Nevada's standard support channels and authorized distributors. The 3300 XL series is designed for long‑term availability.
Replacement & migration:
- Verify the exact part number (330130-080-02-05) for drop-in compatibility.
- Probes and extension cables are fully interchangeable without bench calibration.
- For redundant or safety-critical installations, use matched pairs and follow API 670 guidelines.
Recommendation: For new installations requiring 8.0 m length and hazardous area certification, the 330130-080-02-05 remains the recommended extension cable solution.
FAQ – Frequently Asked Questions
It is 8.0 meters (26.2 feet) long.
The -02 option indicates a standard cable with an integrated connector protector. The -05 option indicates compliance with CSA, ATEX, and IECEx hazardous area approvals.
The total length of your probe and extension cable must match the calibrated length of the Proximitor sensor. Verify your system's required total length before installation.
While technically possible, Bently Nevada strongly recommends using the connector protector in all field installations to maintain environmental sealing and connection integrity.
Yes, the -05 option code indicates that this cable is certified for use in hazardous areas, complying with CSA, ATEX, and IECEx standards.
