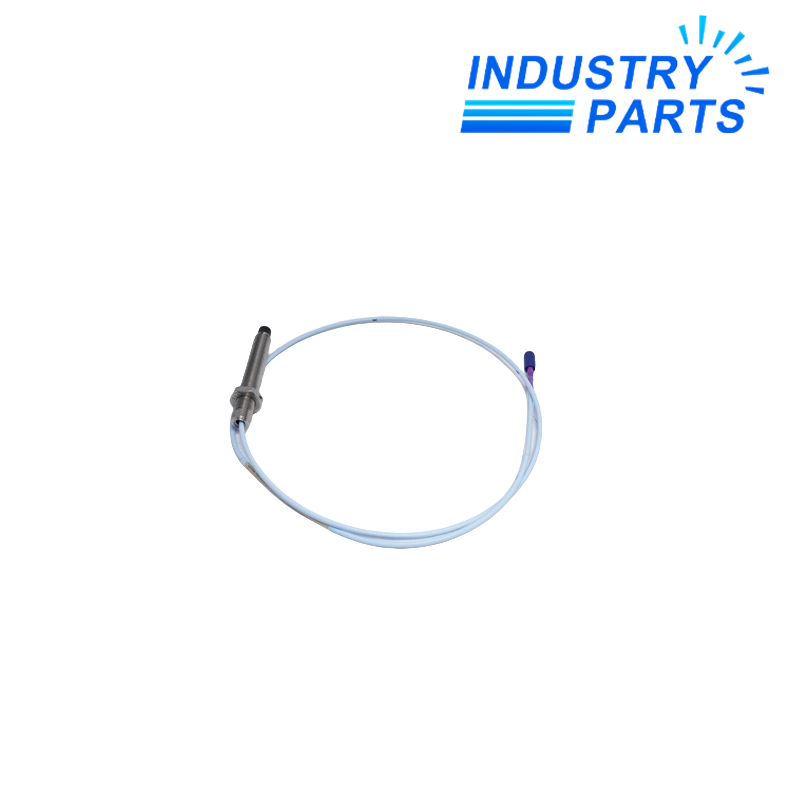

Bently Nevada 330706-005-046-10-02-00 M10×1 Reverse-Mount Proximity Probe
A stocked M10×1 reverse-mount probe with a one-metre lead for long-range machinery measurements.
Overview
330706-005-046-10-02-00 is the metric reverse-mount probe in the Bently Nevada 3300 XL 11 mm system. The 005 and 046 mechanical fields define its fixed reverse-mount geometry, while the cable fields select a one-metre lead and miniature ClickLoc connector.
It must operate with the matching 11 mm extension cable and Proximitor Sensor; standard 8 mm system components are not interchangeable.
Specs
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Complete Model | 330706-005-046-10-02-00 |
| Product Family | 3300 XL 11 mm |
| Probe Style | Reverse mount |
| Case Thread | M10×1 |
| Mechanical Code | 005-046 |
| Total Probe Length | 1.0 m |
| Connector Option | Miniature ClickLoc coaxial connector |
| Agency Approval | Not required |
| Nominal System Scale Factor | 3.94 V/mm (100 mV/mil) |
| System Linear Range | 4.0 mm (160 mil) |
| Recommended System Gap | 2.5 mm (100 mil) |
Features
- Reverse-mount construction suits installations with rear access or constrained probe holders.
- M10×1 thread provides the documented metric mounting interface.
- ClickLoc connection locks the probe lead into the calibrated extension-cable chain.
- TipLoc and CableLoc construction support mechanical integrity in rotating-machinery service.
Applications
- Axial position and differential-expansion measurements requiring reverse mounting.
- Rod position or rod-drop measurement on reciprocating compressors.
- Tachometer, zero-speed or phase-reference points using an 11 mm system.
Lifecycle
- Record installed depth, gap voltage and cable-chain part numbers before removal.
- Inspect the M10×1 holder and rear clearance for the reverse-mount body.
- Use the specified connector torque and protect the ClickLoc joint from contamination.
- Verify gap, scale factor and the alarm or trip path after replacement.
FAQ
Is 330706-005-046-10-02-00 a standard-mount probe?
No. It is the M10×1 reverse-mount version and its holder and rear access must match that construction.
Which Proximitor Sensor works with 330706-005-046-10-02-00?
Use a 330780 11 mm Proximitor Sensor at the same total system length as the probe and extension cable.
Can 330706-005-046-10-02-00 use an 8 mm extension cable?
No. Every component must belong to the 3300 XL 11 mm transducer system.
What should be measured before ordering 330706-005-046-10-02-00?
Confirm the full label, holder thread, reverse-mount geometry, lead length, extension cable and Proximitor model.
Does the final 00 code on 330706-005-046-10-02-00 include hazardous-area approvals?
No. The 00 option means agency approval is not required; use the documented approved variant where the area classification demands it.
What acceptance checks follow installation of 330706-005-046-10-02-00?
Check mechanical clearance, gap voltage, linear response, waveform, scale factor and every active protective function.
