Bently Nevada 330909-00-25-10-02-00 Extension Cable

Bently Nevada 330909-00-25-10-02-00 Extension Cable

Item NO.: 330909-00-25-10-02-00
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameBently Nevada 330909-00-25-10-02-00 Extension Cable
  • Item NO.330909-00-25-10-02-00
  • Weight1.0000 kg = 2.2046 lb = 35.2740 oz
  • CategoryTSI
  • BrandBently Nevada
  • Creation Time2024-12-26
  • 3300 NSv Proximity Probe
330909-00-25-10-02-00
Bently Nevada · 3300 XL NSv · Armored Probe

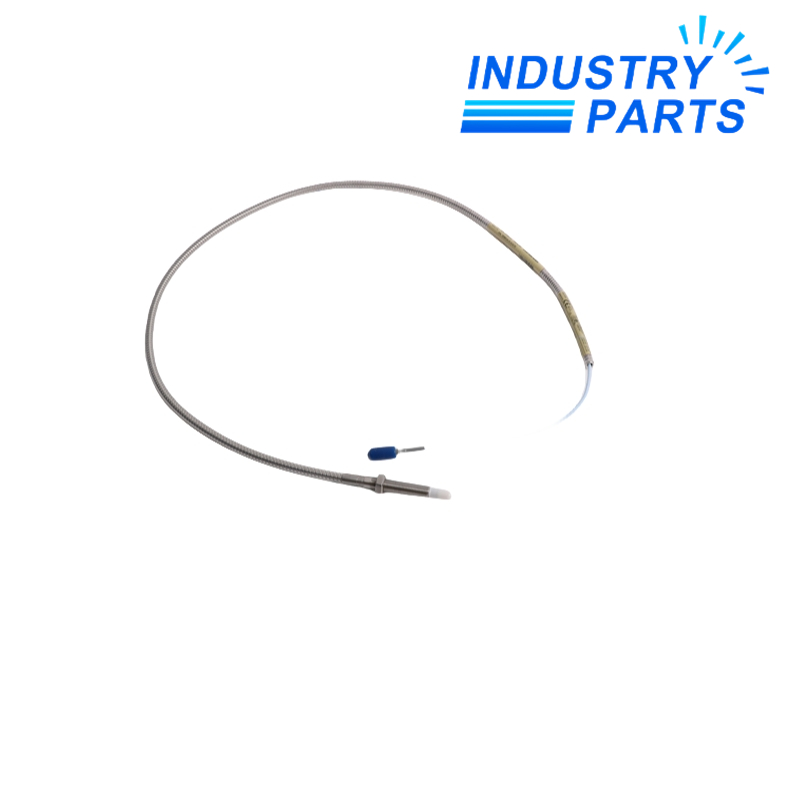

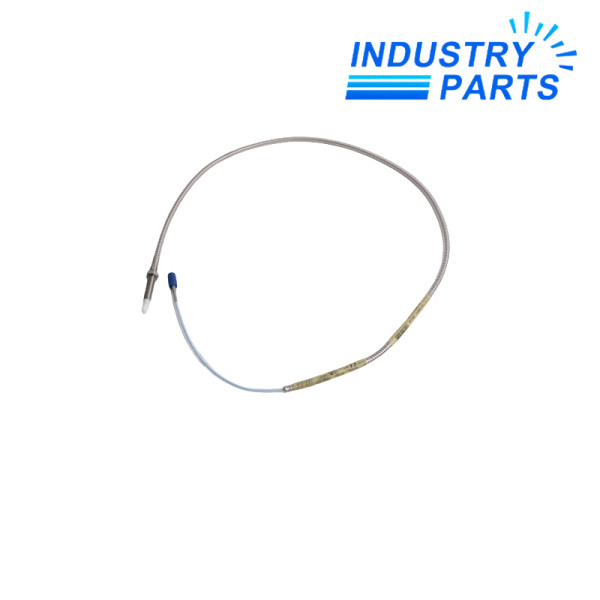

Bently Nevada 330909-00-25-10-02-00 3300 NSv Proximity Probe

The Bently Nevada 330909-00-25-10-02-00 is an armored 3300 NSv standard-mount proximity probe with 3/8-24 UNF thread, 0.0 in unthreaded length, 2.5 in overall case length, 1.0 m total length and a miniature ClickLoc coaxial connector with standard cable.

NSv Probe Configuration

Overview

The Bently Nevada 330909-00-25-10-02-00 belongs to the 3300 XL NSv Proximity Transducer System. The 330909 base configuration identifies the 3/8-24 UNF standard-mount NSv probe with armor.

Its suffixes define probe geometry, total cable length, connector arrangement and approval requirement, allowing exact matching during maintenance.

Baker Hughes Official Data

Technical Specifications

Manufacturer Bently Nevada, a Baker Hughes company
Part Number 330909-00-25-10-02-00
Product Family 3300 XL NSv Proximity Transducer System
Probe Type 3300 NSv standard-mount probe with armor
Case Thread 3/8-24 UNF
Unthreaded Length 0.0 in
Overall Case Length 2.5 in
Total Length 1.0 m (39 in)
Connector / Cable Miniature coaxial ClickLoc connector, standard cable
Agency Approval Not required
Minimum Bend Radius 25.4 mm (1.0 in)
Maximum 3/8-24 Thread Engagement 0.563 in
Operating Temperature -52°C to +177°C (-62°F to +351°F)
Storage Temperature -52°C to +177°C (-62°F to +351°F)
Ordering Code Breakdown
330909 — 3/8-24 UNF standard-mount NSv probe with armor
00 — 0.0 in unthreaded length
25 — 2.5 in overall case length
10 — 1.0 m total length
02 — Miniature coaxial ClickLoc connector, standard cable
00 — Agency approval not required
Probe Characteristics

Features

Armored Construction
330909 is the 3/8-24 UNF standard-mount NSv probe supplied with armor.
NSv Geometry
Designed for installations where compact probe geometry and side clearance are important.
ClickLoc Connection
Uses the miniature coaxial ClickLoc connector with standard cable.
1.0 m Configuration
The 10 ordering option specifies a 1.0 m total probe length.
Machinery Measurement

Applications

Shaft Vibration
Non-contact relative shaft-vibration measurement in a compatible NSv system.
Shaft Position
Static proximity and axial-position measurement.
Speed / Phase Reference
Compatible rotational speed and phase-reference measurements.
Restricted Mounting Areas
Applications benefiting from the smaller NSv probe form factor.
Current Manufacturer Documentation

Lifecycle

Baker Hughes continues to document the 330909 probe family and its ordering options in the current 3300 XL NSv Proximity Transducer System Datasheet 147385 Rev. R. No manufacturer discontinuation statement for the 330909 family is given in that current datasheet.
Installation Note
For 3/8-24 probe cases, Baker Hughes specifies maximum thread engagement of 0.563 in. Minimum cable bend radius is 25.4 mm (1.0 in).
Buyer & Maintenance Questions

Frequently Asked Questions

1. What does the 330909 base number mean in 330909-00-25-10-02-00?
It identifies the 3/8-24 UNF standard-mount NSv probe with armor.
2. What are the length options in 330909-00-25-10-02-00?
00 means 0.0 in unthreaded length, 25 means 2.5 in case length, and 10 means 1.0 m total length.
3. Which connector is used by 330909-00-25-10-02-00?
Option 02 specifies a miniature coaxial ClickLoc connector with standard cable.
4. Does 330909-00-25-10-02-00 include agency approvals?
No. The final 00 means agency approval is not required.
5. What should be checked before replacing 330909-00-25-10-02-00?
Verify thread, unthreaded length, case length, total length, connector, armor and complete NSv system compatibility.
3300 NSv Probe Inquiry
Need 330909-00-25-10-02-00?
Send us the complete probe number, quantity and existing NSv system information.
Machinery Monitoring Parts Support

About IndustryParts

IndustryParts supports maintenance and reliability teams sourcing vibration-monitoring and automation components for operating plants. Our range covers proximity systems, PLC/DCS hardware, drives, industrial I/O and communication equipment.

For proximity systems, exact mechanical and electrical configuration matters. We assist with model checking, sourcing, quotation preparation and international shipping.
