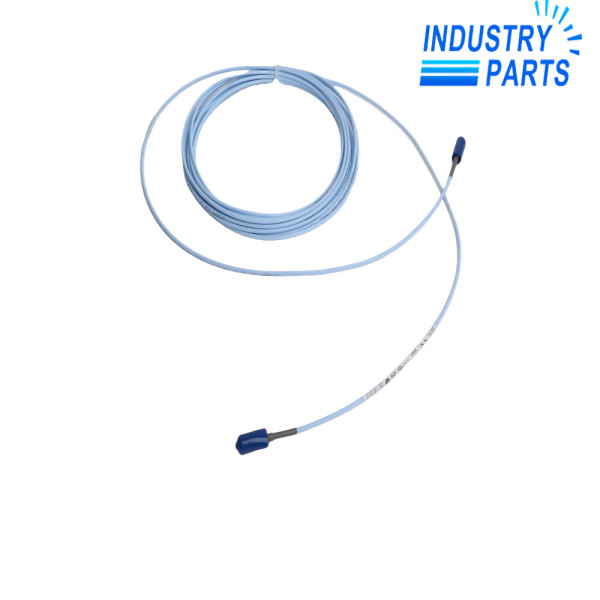

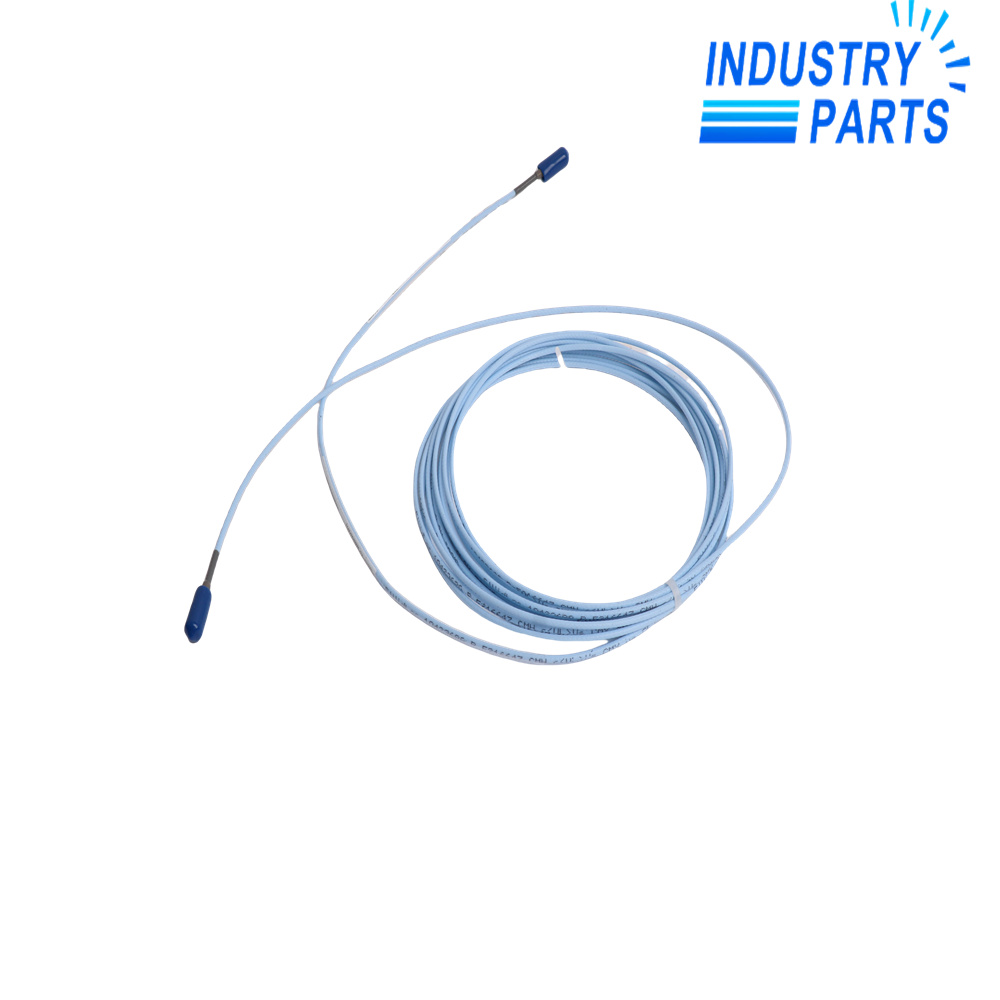

Bently Nevada 330930-060-03-05 3300 NSv Extension Cable
An NSv extension cable configured for a protected, approval-controlled proximity-transducer connection.
Overview
330930-060-03-05 is the defined electrical link between an NSv probe and its Proximitor Sensor. Cable selection must be made as part of the calibrated transducer chain rather than as an independent wiring accessory.
The installed probe lead and extension cable must together match the total system length encoded by the connected electronics.
Specs
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Complete Model | 330930-060-03-05 |
| Product Family | 3300 XL NSv |
| Cable Length | 6.0 m (19.7 ft) |
| Cable Construction | Without stainless-steel armor |
| Connector Protection | Included |
| Approval Option | Multiple approvals |
| System Function | Connects NSv probe to NSv Proximitor Sensor |
| Required Length Relationship | Probe plus extension cable equals Proximitor system length |
Features
- Provides the defined electrical length between an NSv probe and Proximitor Sensor.
- Connector protector helps limit liquid entry at ClickLoc connections.
- Unarmored construction supports protected routing where external mechanical armor is unnecessary.
- Multiple-approval code supports documented approved-system configurations when the complete loop meets the applicable drawing.
Applications
- Seven-metre NSv vibration and position measurement loops using a one-metre probe.
- Compressor monitoring installations with protected cable routing.
- Maintenance replacement where the original 330930 cable code is documented.
Lifecycle
- Confirm probe lead length and Proximitor system-length code before ordering.
- Inspect both ClickLoc connections for contamination, looseness or damaged sleeves.
- Route the unarmored cable away from abrasion, hot surfaces and tight bends.
- Recheck gap voltage and channel response after replacing the extension cable.
FAQ
Which Proximitor length normally matches 330930-060-03-05?
A six-metre extension cable normally combines with a one-metre NSv probe for a seven-metre 330980 system; verify the installed probe lead before ordering.
Is 330930-060-03-05 an armored extension cable?
No. The 03 construction is unarmored and includes connector protection, so its route needs suitable external mechanical protection where required.
Can 330930-060-03-05 be shortened in the field?
No. Changing cable length alters the calibrated transducer system; select the correct factory length instead.
What should be inspected before installing 330930-060-03-05?
Check both mating ClickLoc connectors, cable route, bend radius, protector condition and the complete probe-to-Proximitor length.
Does the approval code on 330930-060-03-05 alone make the loop approved?
No. The probe, Proximitor, barriers or isolators, wiring and installation drawing must satisfy the site classification.
What commissioning check follows a 330930-060-03-05 replacement?
Verify gap voltage, signal scaling, dynamic response and any configured alarm or trip path under the site procedure.
