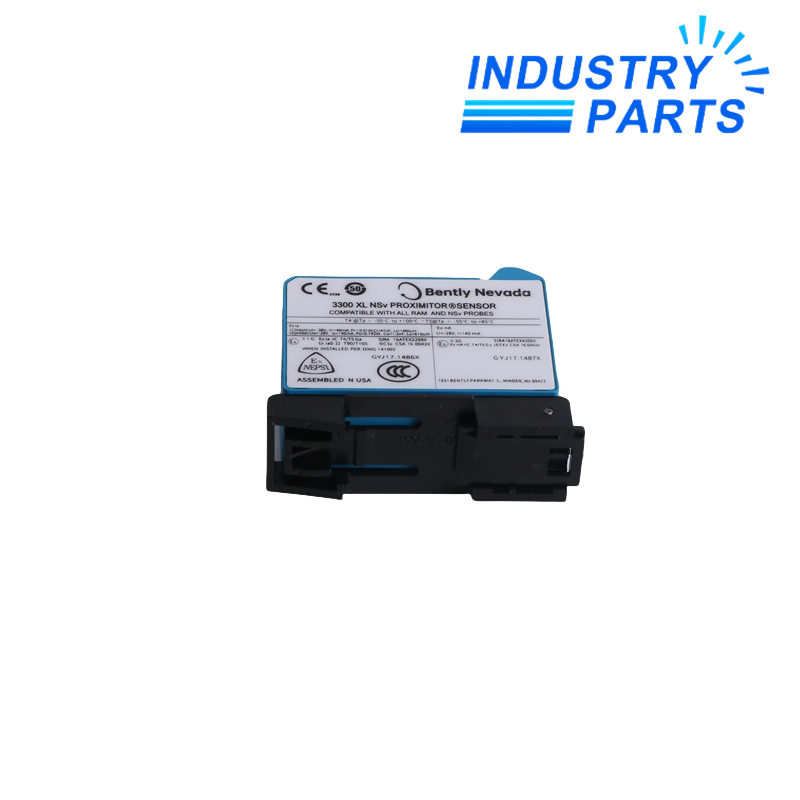

Bently Nevada 330980-71-05 3300 XL NSv Proximity Sensor
A 3300 XL NSv proximity transducer system reference with a 7.0 m system length and DIN mounting option.
Technical Summary
330980-71-05 is a Bently Nevada 3300 XL NSv proximity transducer system ordering reference. The 71 option identifies a 7.0 m system length with DIN mounting hardware.
The complete suffix must be retained when matching the NSv sensor, mounting hardware, approval selection and host monitor. Verify the installed system length before exchange.
Specifications
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 330980-71-05 |
| Product Family | 3300 XL NSv Proximity Transducer System |
| System Length | 7.0 m (23.0 ft) |
| Mounting Option | DIN mount |
| Approval Field | 05 suffix; verify the applicable approval record |
| Installation Check | Match complete nameplate and system length |
Features
- Provides a 3300 XL NSv proximity-transducer-system identity for machinery protection service.
- Uses the 7.0 m DIN-mount configuration encoded by the ordering reference.
- Keeps sensor, mounting hardware and approval details tied to one system record.
- Supports non-contact shaft vibration and position measurement when matched to the host monitor.
Compatibility
- Confirm the host 3300 XL NSv Proximitor and cable/system length.
- Verify DIN mounting hardware and available cabinet or panel space.
- Check the approval documentation for the complete installed loop.
- Compare the full code, not only the 330980 family prefix.
Replacement
- Record gap, cable routing, monitor channel and system length before removal.
- Use approved isolation and ESD controls while protecting the connector and probe tip.
- Recheck gap voltage, polarity, diagnostics and alarm response after installation.
FAQ
330980-71-05: What does the 71 option mean?
It specifies a 7.0 m system length with DIN mounting hardware.
330980-71-05: Does it identify only a sensor?
It is a complete 3300 XL NSv system ordering reference; verify associated sensor, mounting and monitor records.
330980-71-05: Can another system length replace it?
Only after the Proximitor, extension arrangement, cabinet routing and calibration are checked.
330980-71-05: What approval information is needed?
Provide the complete approval record for the sensor, cable, barriers and host installation.
330980-71-05: What should be supplied for a quotation?
Send the full label, system length, mounting option, host Proximitor, quantity and destination.
330980-71-05: What commissioning checks follow replacement?
Verify gap, polarity, channel scaling, diagnostic status and baseline vibration.
