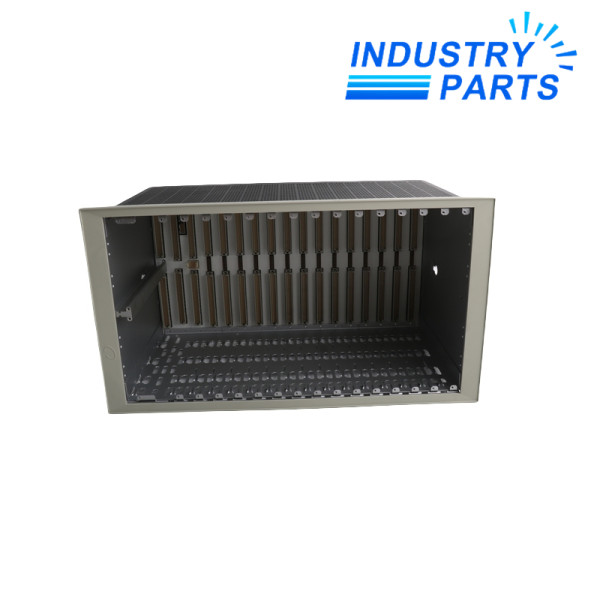

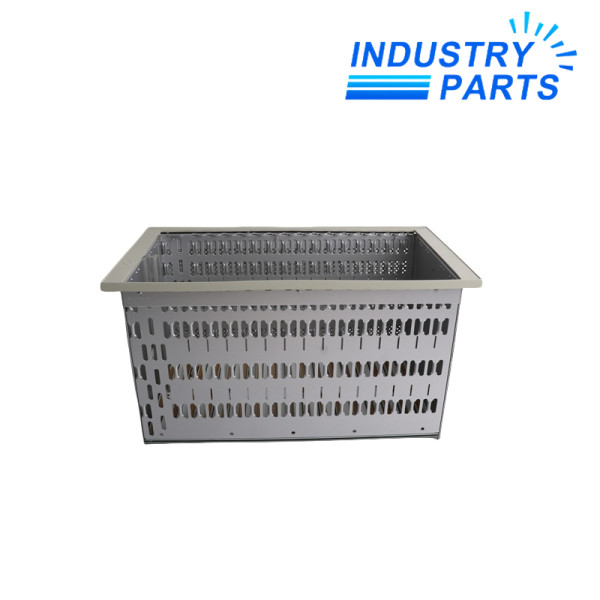

Bently Nevada 3500/05-01-01-00-00-01 Full-Size System Rack
A 19-inch full-size 3500 system rack with 14 available module slots, panel-mount configuration and CE option.
Product Profile
3500/05-01-01-00-00-01 is the full-size panel-mount version of the Bently Nevada 3500 System Rack. The first 01 selects the 19-inch rack with 14 available module slots, and the second 01 selects panel mounting.
The 00 agency position specifies none, the reserved position is 00, and the final 01 selects the CE option. Rear access is used for wiring connections and I/O modules in the panel-mount format.
Technical Data
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 3500/05-01-01-00-00-01 |
| Product Family | 3500 machinery protection system |
| Rack Size Option | 01 - 19-inch full-size rack |
| Available Monitor Slots | 14 |
| Mounting Option | 01 - panel mount |
| Wiring / I/O Access | Rear access |
| Agency Approval Option | 00 -none |
| Reserved Option | 00 - none |
| European Compliance Option | 01 - CE |
| Rack Width | 482.60 mm (19.000 in) |
| Rack Height | 265.94 mm (10.470 in) |
| Panel Cutout Width | 452.1 ± 1.5 mm (17.80 ± 0.06 in) |
| Panel Cutout Height | 251.5 ± 1.5 mm (9.90 ± 0.06 in) |
System Role
- The rack mechanically houses 3500 monitor modules and the power supplies required to distribute power through the system.
- Its backplane lets installed 3500 modules communicate while maintaining an organized full-size monitoring platform.
- Power supplies and the Rack Interface Module occupy the far-left positions.
- The remaining 14 positions accept the supported combination of monitoring modules.
Compatibility
- Use with Bently Nevada 3500 Series power supplies, Rack Interface Module and supported monitoring modules.
- Provide a rectangular panel cutout and rear clearance for wiring and I/O module service.
- If internal barriers are installed, include the required 3500/04-01 Internal Barrier Earthing Module and reserve its rack position.
- Do not apply mini-rack or bulkhead-only mechanical assumptions to this full-size panel-mount code.
Applications
- Centralized machinery-protection panels for turbines, compressors, pumps and other critical rotating equipment.
- Full-size 3500 installations requiring 14 available monitor-module positions.
- Panel-mount control-room or equipment-room enclosures with rear wiring access.
- System expansions where rack size, mount style, approval position and CE option must match the project record.
FAQ
What rack size is 3500/05-01-01-00-00-01?
The first 01 identifies a full-size 19-inch rack with 14 available module slots.
How is 3500/05-01-01-00-00-01 mounted?
The second 01 identifies the panel-mount configuration, with wiring and I/O access from the rear.
What does the final 01 mean in 3500/05-01-01-00-00-01?
It selects the CE European compliance option.
Where are power supplies installed in 3500/05-01-01-00-00-01?
The power supplies and Rack Interface Module occupy the far-left rack positions.
Does 3500/05-01-01-00-00-01 provide 14 monitor positions?
Yes. The full-size rack provides 14 positions for supported module combinations after the dedicated left-side positions.
What panel details should be checked for 3500/05-01-01-00-00-01?
Confirm the 452.1 × 251.5 mm nominal cutout, rear service clearance, module plan, power supplies and any internal-barrier earthing requirement.
