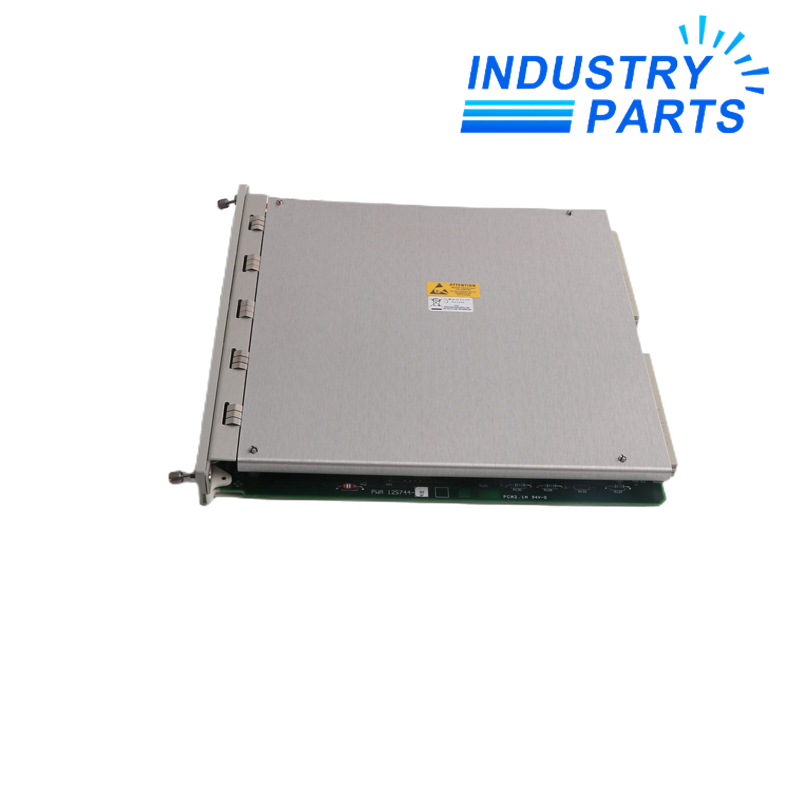

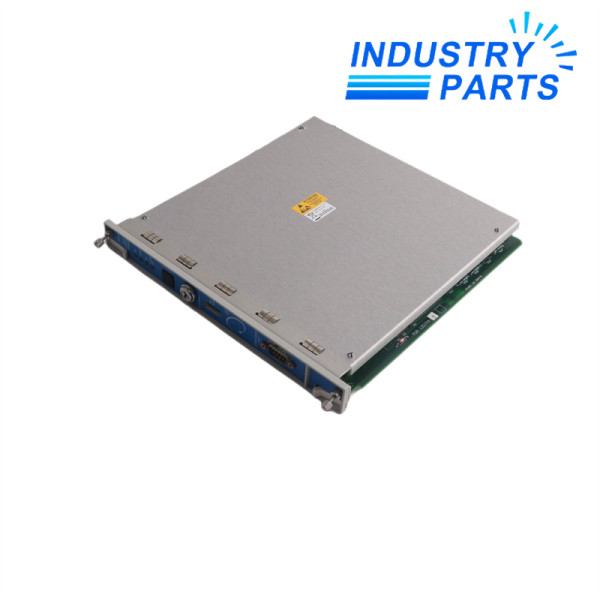

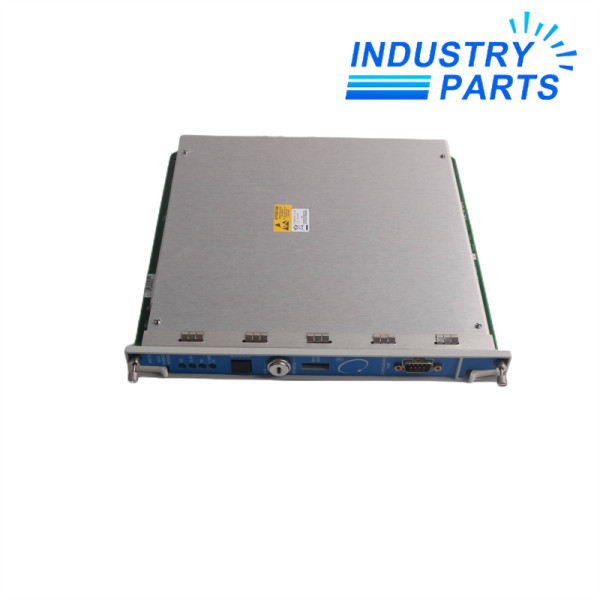

Bently Nevada 3500/20 125744-02 Rack Interface Module

Bently Nevada 3500/20 125744-02 Rack Interface Module

Item NO.: 3500/20 125744-02
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameBently Nevada 3500/20 125744-02 Rack Interface Module
  • Item NO.3500/20 125744-02
  • Weight0.9100 kg = 2.0062 lb = 32.0993 oz
  • CategoryTSI
  • BrandBently Nevada
  • Creation Time2025-01-02
  • Rack Interface Module
3500/20 125744-02 Product Page
Bently Nevada · 3500/20 Rack Interface Module

Bently Nevada 3500/20 125744-02 Standard Rack Interface Module

The Bently Nevada 3500/20 125744-02 is the Standard Rack Interface Module (RIM) for the 3500 Machinery Protection System. It is the primary interface used to configure the rack and retrieve machinery information.

Article & System Context

Product Profile

Baker Hughes specifies one RIM per 3500 rack, installed in slot 1 next to the power supplies. The RIM communicates with other 3500 modules and supports rack configuration and data collection.

The Standard RIM is intended for standard monitoring applications; Triple Modular Redundant installations use the separate TMR RIM version.

Verified Manufacturer Data

Technical Data

Manufacturer Bently Nevada, a Baker Hughes company
Part Number 3500/20 125744-02
Product Type Standard Rack Interface Module
Rack Position Slot 1, next to power supplies
Power Consumption 4.75 W typical
Front Serial Interface RS232
Front Data Rate 38.4 kbaud maximum, auto-baud capable
Rack Address 63 possible addresses
Front LEDs OK, TX/RX, TM, CONFIG OK
Operating Temperature -30°C to +65°C
Storage Temperature -40°C to +85°C
Humidity 95%, non-condensing
Function in the System

System Role

Primary Rack Interface
Provides the main configuration and information interface to the 3500 rack.
Rack Communication
Communicates with other 3500 modules through the rack system.
Configuration Control
RUN / PROGRAM keylock controls whether rack configuration changes are permitted.
Status Indication
Front LEDs show operating, communication, Trip Multiply and configuration status.
System Matching

Compatibility

3500/20 125744-02 is the Standard RIM for normal 3500 monitoring applications and requires the appropriate rear I/O module for external communications. It is not the TMR RIM used for triple-redundant monitor voting.
Typical Use

Applications

Standard 3500 Racks
Primary configuration and communication interface for standard monitoring racks.
Data Collection
Supports retrieval of machinery and rack information through compatible host communications.
Rack Configuration
Used for local or remote rack configuration when the keylock permits programming.
External Communications
Works with compatible RIM I/O and Bently Nevada communication processors.
Customer Questions

Frequently Asked Questions

1. Is 3500/20 125744-02 the Standard or TMR RIM?
It is the Standard Rack Interface Module. The TMR RIM uses a different spare-part number.
2. Where must 3500/20 125744-02 be installed?
Baker Hughes specifies slot 1 of the rack, immediately next to the power supplies.
3. Does 3500/20 125744-02 affect the critical monitoring path?
Baker Hughes states that the RIM is not part of the critical monitoring path and does not affect normal monitoring operation.
4. What communications does 3500/20 125744-02 provide?
The front panel provides RS232 serial communications, while rear I/O options support the documented RS232/RS422 or modem interfaces.
5. What should be checked before ordering a replacement RIM?
Confirm Standard versus TMR type, rear I/O module, rack configuration, firmware revision and host communication requirements.
Product Inquiry
Need 3500/20 125744-02?
Send us the complete model, installed-system information and quantity for availability, quotation, lead time and shipping support.
Industrial Automation Support

About IndustryParts

IndustryParts supplies automation, drive and machinery-monitoring components for maintenance, repair and plant modernization. Our sourcing scope includes PLC and DCS hardware, motion-control electronics, vibration-monitoring parts, industrial I/O and communication equipment.

We support buyers with part-number verification, quotation preparation, sourcing coordination and international shipping for both current and long-service systems.
