Bently Nevada · 3300 XL 8 mm Proximity Transducer System

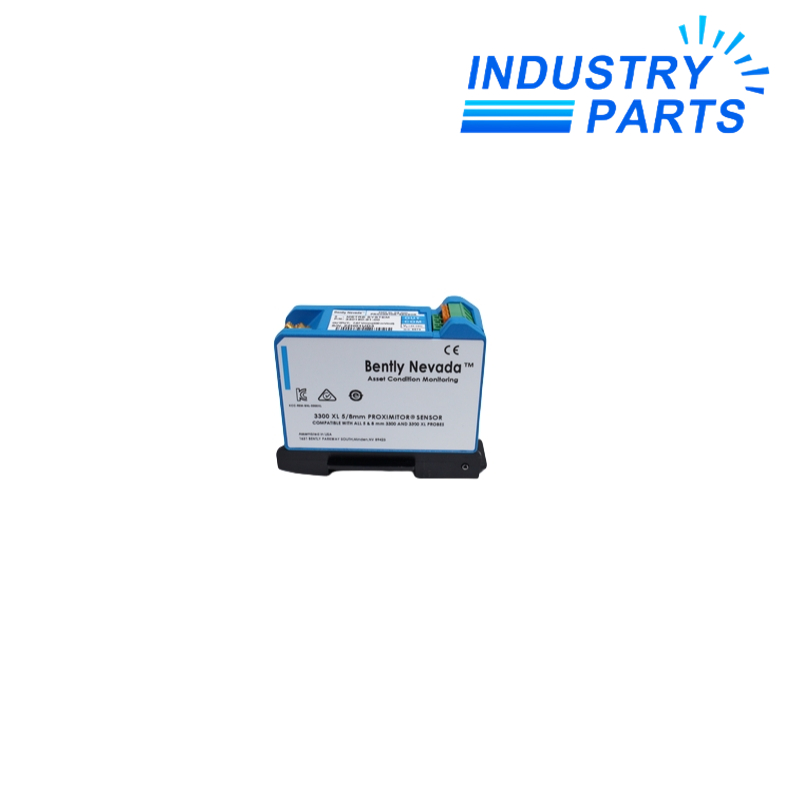

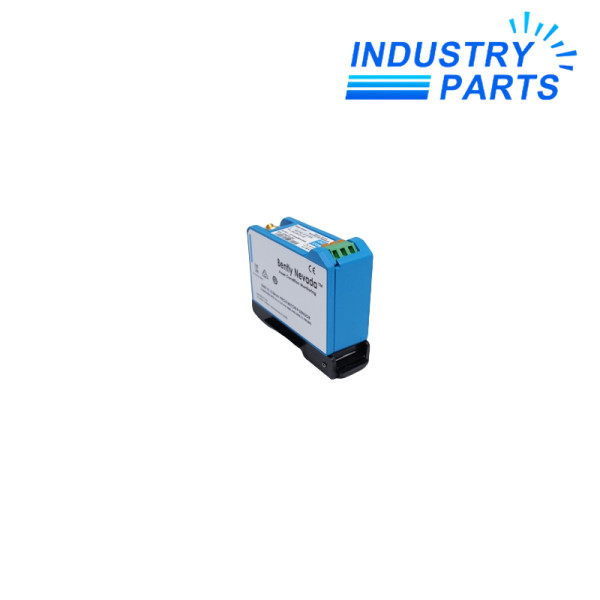

Bently Nevada 330180-91-00 Proximitor Sensor
The Bently Nevada 330180-91-00 is a 9.0 m DIN-mount 3300 XL Proximitor Sensor with the agency-approval-not-required option.
Article & System Context
Product Identification
330180-91-00 is the signal-conditioning element of a compatible 3300 XL 8 mm proximity system.
The 91 code specifies 9 m system length and DIN mounting; the final 00 code means agency approval is not required.
Verified Technical Information
Engineering Data
|
Manufacturer
|
Bently Nevada
|
|
Part Number
|
330180-91-00
|
|
Product Type
|
3300 XL Proximitor Sensor
|
|
System Length
|
9.0 m (29.5 ft)
|
|
Mounting
|
DIN mount
|
|
Agency Approval
|
Not required
|
|
Power Requirement
|
-17.5 to -26 Vdc under specified installation conditions; 12 mA maximum consumption
|
|
Output Resistance
|
50 Ω
|
|
Linear Range
|
2 mm (80 mils)
|
|
Incremental Scale Factor, 9 m System
|
7.87 V/mm (200 mV/mil), ±6.5%
|
|
Frequency Response
|
0 to 10 kHz, +0 / -3 dB
|
|
Operating Temperature
|
-52°C to +100°C
|
|
Storage Temperature
|
-52°C to +105°C
|
System Function
Functions
DIN-Mount Sensor
Designed for DIN-rail mounting in the monitoring cabinet or enclosure.
9 m Calibration
Matches a total electrical transducer-system length of 9 m.
Standard Approval Option
The 00 suffix means agency approval is not required.
Typical Use
Applications
Used with compatible 3300 XL probes and extension cables for relative shaft vibration, shaft position, speed and Keyphasor-type proximity measurements on rotating machinery.
Service & Product Status
Lifecycle
The current Baker Hughes 3300 XL 8 mm datasheet continues to document the 330180 family and the 91 / 00 configuration. No specific discontinuation date was identified in the current official datasheet.
Customer Questions
FAQ
1. What mounting style does 330180-91-00 use?
The 91 ordering code specifies DIN mounting.
2. Is 330180-91-00 calibrated for a 5 m system?
No. It is the 9 m system-length configuration.
3. Does 330180-91-00 include hazardous-area approvals?
No. The 00 suffix specifies that agency approval is not required.
4. What must be matched when replacing 330180-91-00?
Match the 9 m total transducer-system length, DIN mounting, power supply, probe and extension cable.
5. Is 330180-91-00 a complete vibration monitoring system?
No. It is the Proximitor Sensor component and requires a compatible probe and extension cable.
