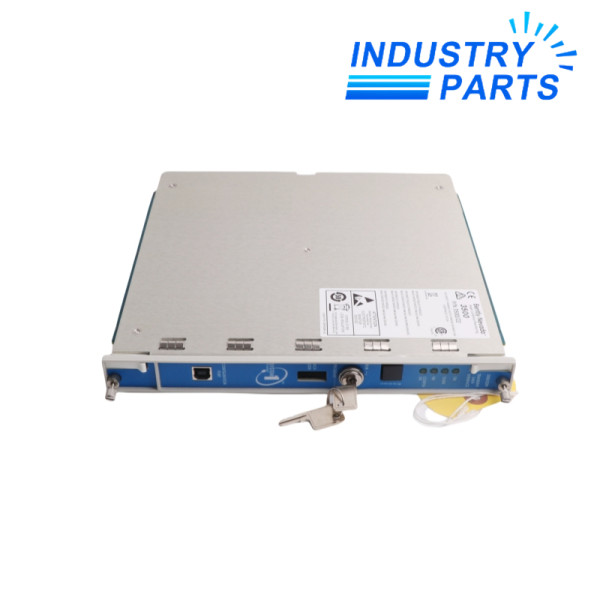

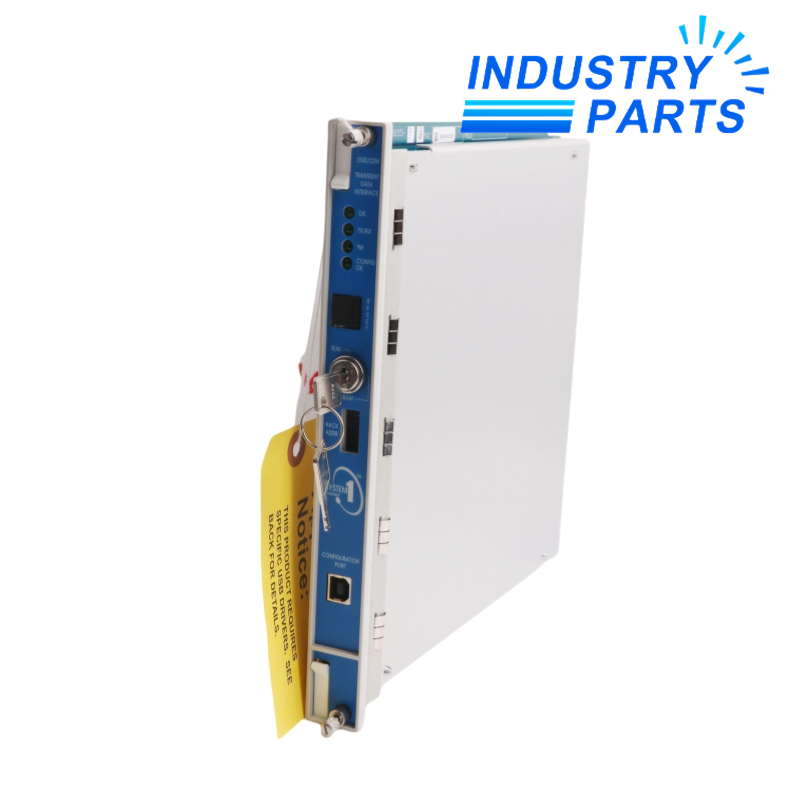

Bently Nevada 3500/22M 288055-01 Standard Transient Data Interface Module with USB Cable
The standard 3500/22M TDI supplied with a USB cable for rack configuration and System 1 communication.
Product Profile
3500/22M 288055-01 is the standard 3500/22M TDI supplied with a USB cable for rack configuration and System 1 communication.
Its exact part identity determines the installed function, channel arrangement, termination method and companion hardware. These details should be verified against the rack before replacement.
Technical Data
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Part Number | 3500/22M 288055-01 |
| Product Family | 3500/22M Transient Data Interface |
| Product Type | Standard Transient Data Interface Module with USB Cable |
| Channels / Role | Rack-wide interface to M-series monitors |
| Termination / Interface | Front USB-B plus rear I/O network interface |
| Isolation | Not applicable |
| Input / Communication | 10/100Base-TX or 100Base-FX through the selected I/O module |
| Supply / Consumption | 10.5 W typical power consumption |
System Role
- Performs the documented standard transient data interface module with usb cable role in the 3500/22M Transient Data Interface platform.
- Uses rack-wide interface to m-series monitors.
- Provides 10/100base-tx or 100base-fx through the selected i/o module.
- Uses front usb-b plus rear i/o network interface connection or termination hardware.
- Maintains rack configuration traceability through the exact 3500/22M 288055-01 identifier.
Compatibility
- Install in slot 1 beside the power supplies and retain the matching I/O and communications configuration.
- Retain the front usb-b plus rear i/o network interface arrangement and not applicable requirement.
- Confirm rack-wide interface to m-series monitors and the connected monitoring-system configuration.
- Do not infer interchangeability from the 3500 family name alone; compare the complete part number and rack design.
Applications
- System 1 data communication from a 3500 machinery-protection rack.
- Rack configuration through the supplied USB interface.
- Collection of steady-state data and optional transient or high-resolution data.
- Maintenance replacement in a documented M-series 3500 installation.
FAQ
What exactly is 3500/22M 288055-01?
3500/22M 288055-01: It is the standard 3500/22M TDI supplied with a USB cable.
Where does 3500/22M 288055-01 operate in the 3500 system?
3500/22M 288055-01: It occupies slot 1 beside the rack power supplies and communicates with M-series monitors.
What must be checked before fitting 3500/22M 288055-01?
3500/22M 288055-01: The TDI supports configuration and System 1 data access but is not part of the critical monitoring path.
Which physical data applies to 3500/22M 288055-01?
3500/22M 288055-01 has documented dimensions of 241.3 × 24.4 × 241.8 mm and a weight of 0.91 kg.
Can a similar 3500 part replace 3500/22M 288055-01 automatically?
No. Confirm the exact 3500/22M 288055-01 function, channel count, isolation, termination, approval and companion module before substitution.
What should be recorded during 3500/22M 288055-01 commissioning?
Record rack slot, connected channels, wiring, configuration, alarm context and verification results for 3500/22M 288055-01.
