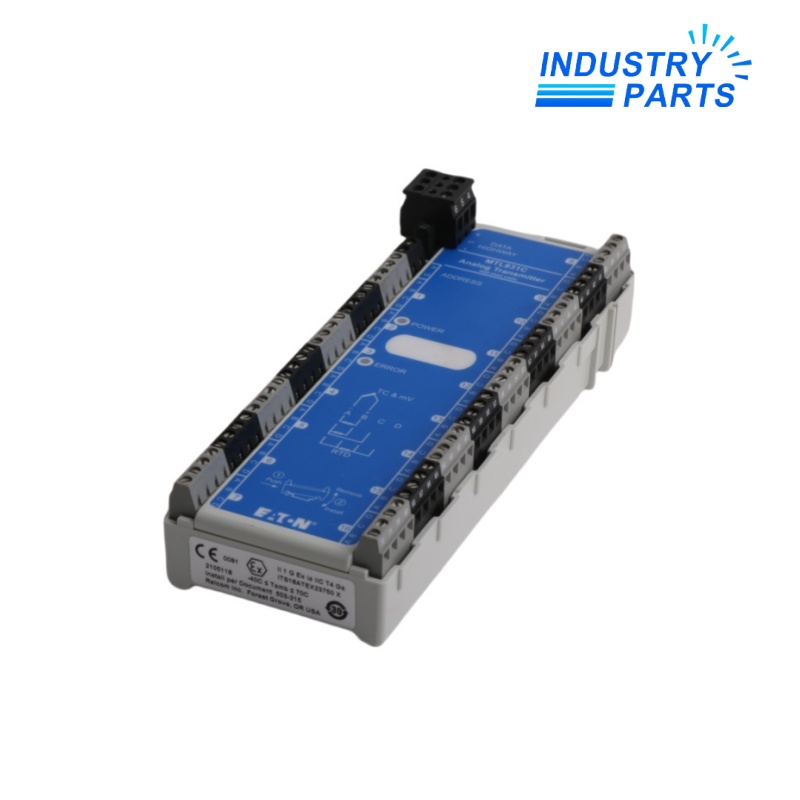

Eaton MTL831C Intrinsically Safe Analog Transmitter
An intrinsically safe field transmitter carrying up to sixteen temperature or low-level analog inputs over one data highway.
Overview
MTL831C is an Eaton Crouse-Hinds MTL intrinsically safe analog transmitter that may be mounted in Zone 0 under the documented installation conditions. It sends power and data over a single shielded twisted-pair highway to the safe-area receiving system.
One MTL831C accepts up to 16 thermocouple, millivolt, RTD or potentiometer inputs. The documented system uses an MTL838C receiver and an MTL5553 Isolator/Power Supply, with data-highway distance up to 2 km depending on cable, application and electrical-noise conditions.
Specs
| Manufacturer | Eaton Crouse-Hinds MTL |
|---|---|
| Exact Model | MTL831C |
| Product Type | Intrinsically safe analog transmitter |
| Hazardous-Area Location | Zone 0 under the documented certified installation conditions |
| Input Capacity | Up to 16 |
| Supported Inputs | Thermocouples, millivolt sources, 2/3/4-wire RTDs and potentiometers |
| Data Highway | Single shielded twisted pair carrying power and data |
| Maximum Documented Distance | Up to 2 km, dependent on application, cable and noise conditions |
| Receiver | MTL838C |
| Safe-Area Isolator / Power Supply | MTL5553 |
| Receiver Capacity | One or two MTL831C transmitters per MTL838C |
| Safe-Area Output | MTL838C provides Modbus serial data and status |
| Addressing | Hardware jumper sets transmitter address |
| Configuration | Remaining setup by Modbus or PC software |
Features
Concentrates as many as sixteen field measurements onto one two-wire data highway.
Supports multiple low-level sensor families within the documented input arrangements.
Provides intrinsically safe field installation when used with the certified system components.
Allows two transmitters to share one MTL838C receiver when addressing and system design are correct.
Applications
- Hazardous-area temperature and low-level analog collection.
- Long field runs where a shared twisted-pair highway reduces home-run wiring.
- Retrofit projects using MTL838C Modbus data in a safe-area control system.
Lifecycle
- Record all sixteen channel sensor types, ranges, wiring modes and terminal assignments.
- Capture the address jumper, MTL838C configuration, MTL5553 identity, cable type, route and shield grounding.
- Maintain the entity or system certification and installation conditions for the hazardous area.
- After replacement, verify each channel value, open-sensor diagnostics, Modbus mapping and recovery from a controlled highway interruption.
FAQ
Can MTL831C operate without an MTL838C receiver?
The documented system uses the MTL838C to receive transmitter data and provide Modbus output, so the receiver is part of the engineered measurement path.
Why is MTL5553 listed with MTL831C?
The documented hazardous-area system uses the MTL5553 Isolator/Power Supply in the safe area to supply and isolate the field highway.
Is 2 km guaranteed for every MTL831C installation?
No. The manual states that achievable distance depends on cable characteristics, application conditions and electrical noise.
What happens if two MTL831C transmitters use the same address?
The receiver cannot reliably distinguish the data sources; verify the hardware address jumper before connecting two transmitters to one receiver.
What information is needed to configure MTL831C?
Provide the sensor type and wiring for every channel, engineering ranges, address, receiver setup, Modbus map, cable details and hazardous-area documentation.
