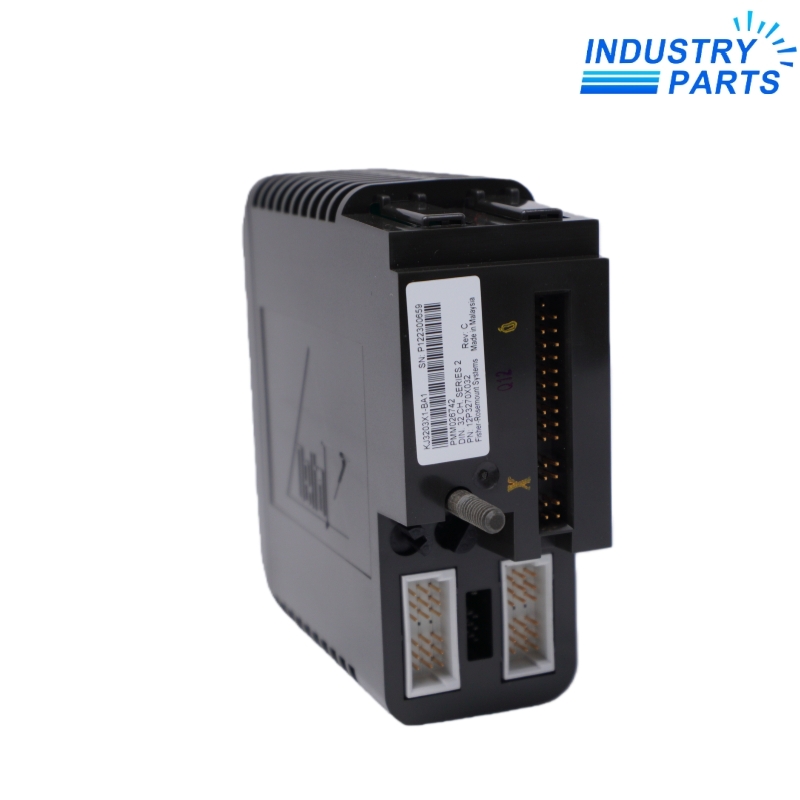

Emerson KJ3203X1-BA1 32-Channel 24 VDC Dry-Contact Discrete Input Card
A Series 2 DeltaV card for thirty-two 24 VDC dry-contact discrete inputs.
Product Profile
PROFILEEmerson KJ3203X1-BA1 is a DeltaV Series 2 discrete-input card with 32 channels for 24 VDC dry-contact signals.
The documented power boundary includes 12 VDC LocalBus power, 24 VDC bussed field power and 24 VDC field-circuit power per channel. The compatible terminal-block key position is B3.
A controlled exchange retains all 32 point assignments, contact logic, field-power distribution, terminal-block identity and hazardous-area removal restrictions.
Technical Data
DATASystem Role
SYSTEMCompatibility
MATCHMap
Archive all 32 point names, normal states, power groups, alarm use and terminal assignments.
Replace
Apply the site power/area procedure and confirm B3 terminal-block keying before insertion.
Test
Operate every contact, verify inversion and alarm logic, and record stable system status.
Applications
APPLICATIONPlant status inputs
Collecting contact states from switches, interlocks and discrete field devices.
Panel density improvement
Consolidating 32 documented 24 VDC dry-contact points in the assigned DeltaV position.
Controlled card exchange
Restoring the exact point map and B3 terminal-block relationship during maintenance.
About IndustryParts
https://www.industryparts.com/Exact-model handling for KJ3203X1-BA1
IndustryParts prepares this 32-channel 24 vdc dry-contact discrete input card enquiry with the complete label, requested quantity and installed-system evidence kept together, so the proposed supply can be compared with the actual application before dispatch.
FAQ
QUESTIONSQ01Is KJ3203X1-BA1 a discrete output card?
No. KJ3203X1-BA1 is a 32-channel 24 VDC dry-contact discrete input card.
Q02Which terminal-block key position is published for KJ3203X1-BA1?
The documented key position is B3.
Q03What should accompany a KJ3203X1-BA1 quotation?
Provide the complete card and terminal-block labels, 32-point schedule, field-power groups, carrier position and required quantity.
Q04Does KJ3203X1-BA1 require calibration?
No. The published instruction identifies no calibration requirement and no user-serviceable parts.
Q05How should KJ3203X1-BA1 be accepted after replacement?
Exercise all 32 contacts, verify normal/inverted logic, alarms, field-power stability and the final controller I/O map.
