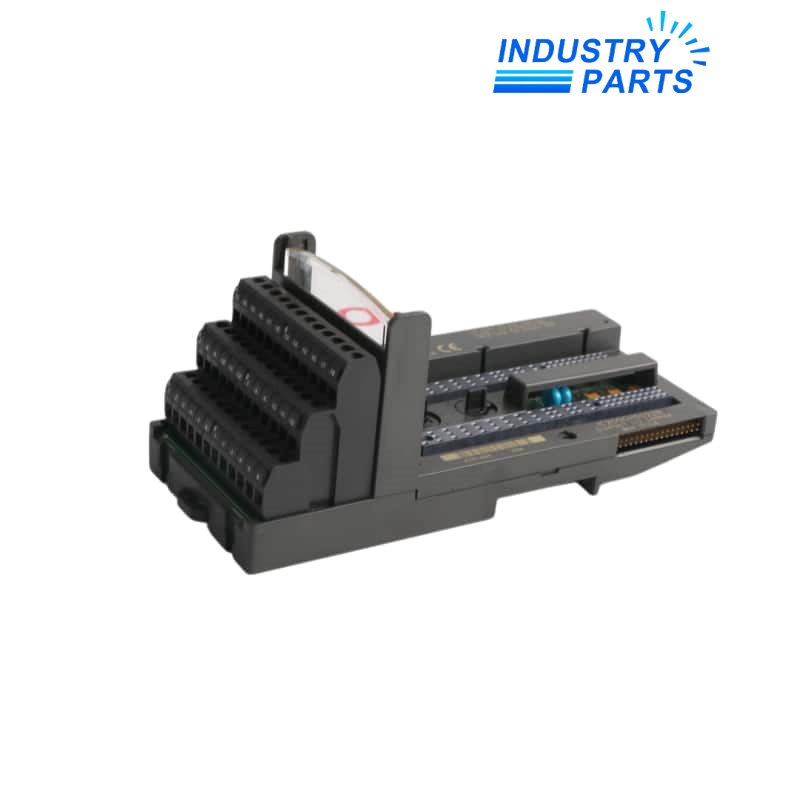

GE General Electric IC200CHS022 Compact I/O Carrier
A box-style vertical VersaMax carrier that provides the mounting and connection interface for a compatible modular I/O position.
Overview
GE General Electric IC200CHS022 is the box-style vertical I/O carrier identified in the VersaMax modular I/O family.
The carrier supplies the physical mounting and connection position for a compatible VersaMax module. It is a carrier component, not a CPU or an I/O electronics module. This distinction keeps the mechanical interface separate from the function of the installed module.
A controlled replacement record should pair the complete carrier label with the installed module identity, terminal assignment, cabinet orientation and wiring photographs.
Technical Data
Functions & Characteristics
Vertical box-style format
The published carrier identity distinguishes this compact vertical form from other VersaMax carrier arrangements.
Module-and-carrier separation
The carrier provides the installed interface while the paired module determines the actual I/O function.
Evidence-led selection
Carrier label, module catalog number and terminal map are kept together during procurement.
Serviceable node position
The documented orientation and wiring route support a controlled exchange without losing position identity.
Applications
VersaMax module support
Providing the documented vertical carrier position for a compatible modular I/O device.
Carrier-only replacement
Replacing a damaged carrier while retaining the approved module and field function.
Panel record correction
Rebuilding the relationship between carrier label, module label and terminal assignment during maintenance.
Service Control
Photograph IC200CHS022, the installed module, terminal markings and neighboring node layout before removal.
Isolate power, label the field wiring and retain the original orientation under the approved service procedure.
Refit the matched module, inspect seating and terminals, then verify point states and controller diagnostics.
About IndustryParts
https://www.industryparts.com/Traceable handling for IC200CHS022
IndustryParts keeps the complete model label, requested quantity, application evidence and delivery record together so the proposed supply can be checked against the installed system before dispatch.
Related Models
FAQ
Q01
Can IC200CHS022 be selected from the VersaMax family name alone?
+
No. Confirm the exact carrier style, installed module, terminal arrangement and vertical orientation before approving a replacement.
Q02
What evidence should accompany a IC200CHS022 enquiry?
+
Provide clear carrier and module labels, front and side photographs, terminal mapping, cabinet position and requested quantity.
Q03
How does IC200CHS022 differ from other VersaMax carriers?
+
The official family material identifies this model as the box-style vertical carrier; horizontal and other carrier formats have different mechanical interfaces.
Q04
What must be preserved before moving wiring from IC200CHS022?
+
Record every terminal designation, conductor label, shield or common arrangement, module position and neighboring-node reference.
Q05
What tests close a IC200CHS022 carrier replacement?
+
Confirm mechanical seating, terminal integrity, normal module diagnostics and correct operation of every affected field point.
