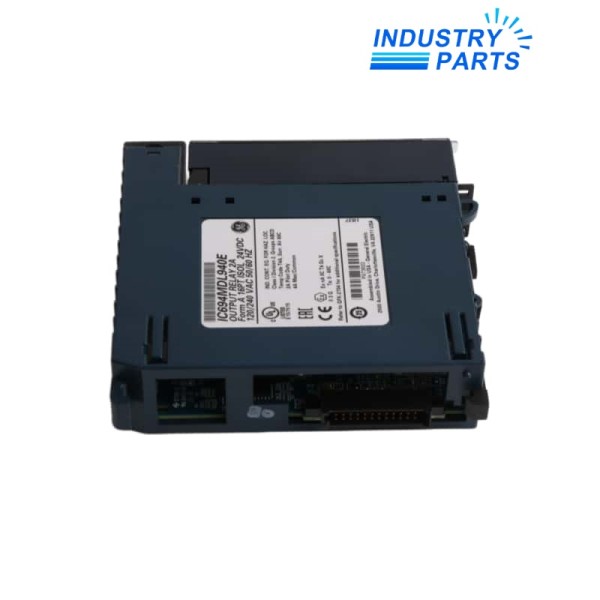

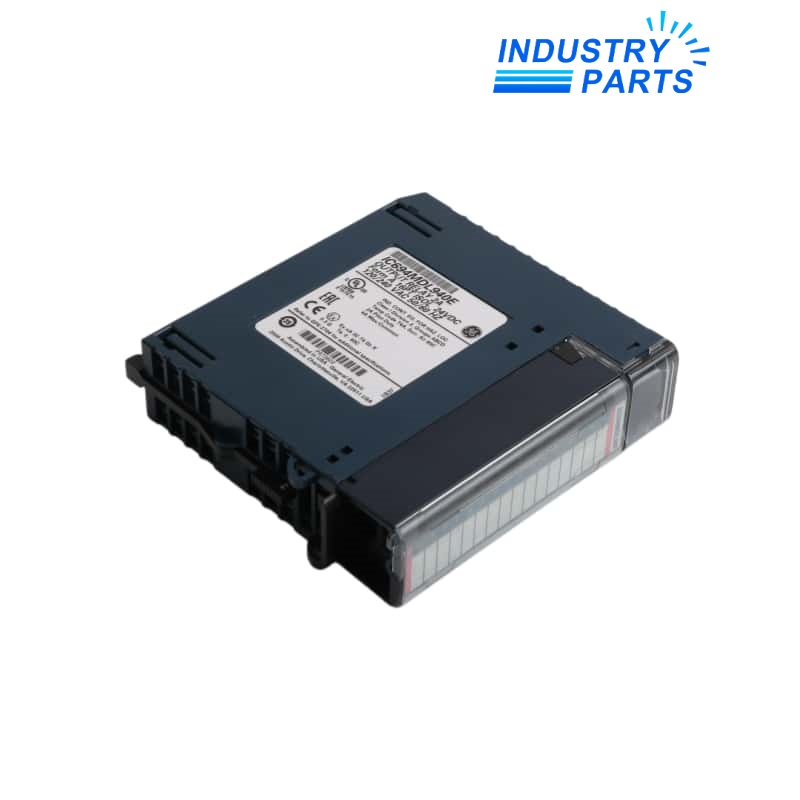

GE General Electric IC694MDL940 Discrete Output Module

GE General Electric IC694MDL940 Discrete Output Module

▷▷ Product Information

Product Name: GE General Electric IC694MDL940 Discrete Output Module

Product Model: IC694MDL940

Product Parameters: Discrete Output Module

Estimated Shipping Size: 3.5x13.2x13.5cm

Weight: 0.34kg

Manufacturer: General Electric

Number of Groups: 4 Groups of 4 Outputs Each

LED Indicators: 32 Individually-Numbered LEDs

Maximum load: 2 Amps pilot duty per output; 4 Amps maximum per common

Operating Voltage: 5.0 to 30 Volts DC or 5.0 to 250 Volts AC

Current draw: 7 mA (all outputs on) from 5 volt bus on backplane; 135 mA (all outputs on) from relay 24V bus on backplane

I/O Capacity: 16 Individually isolated Normally Open (N.O) Outputs Contact form: Normally Open (N.O.) Form A contacts

Isolation, Field to Backplane (optical) and to Frame Ground: 250 VAC continuous; 1500 VAC for 1 minute

Relay Contact Life: 100,000 - 1,000,000 operations, depending on voltage and load type

Place of Shipment: Xiamen, China

Delivery Time: 1-3 days

Quantity: 100% New Original

Minimum Order Quantity: 1pc

Shipping Method: DHL\UPS\Fedex\EMS\Others

▷▷ Reliable Industrial Automation Parts When It Matters Most

In industrial automation, the real problem is not finding a supplier — it is avoiding downtime, delays, and wrong parts.

That is where we make the difference.

We help maintenance teams and procurement engineers get the right industrial automation parts fast, verified, and ready to use. Whether it is a current model, a discontinued component, or an urgent replacement, we focus on one goal: keeping your system running without interruption.

Unlike ordinary traders, we do not just quote parts. We reduce your sourcing risk by confirming compatibility, sourcing globally, and responding quickly when time matters most.

When production is on the line, you do not need more options — you need the right solution immediately.

That is what we deliver.

▷▷ Order & Inquiry

Manager: Leonia

Email: sales@mvme.cn

Whatsapp: +8618030175807

▷▷ Q&A

Q1: What is the GE General Electric IC694MDL940 Discrete Output Module and what is it used for?

A1: The GE General Electric IC694MDL940 Discrete Output Module is a relay output module used in PLC systems to control external devices such as motors, valves, and relays. It converts control signals from the PLC into electrical outputs to drive field equipment in industrial automation systems.

Q2: What are the key features and differences of the GE General Electric IC694MDL940 Discrete Output Module?

A2: The GE General Electric IC694MDL940 Discrete Output Module features 16 normally open relay outputs divided into 4 groups, with 4 outputs per group. It supports both AC and DC voltage ranges (5–30 VDC and 5–250 VAC), has a switching current of up to 2 Amps per output, and includes 32 LED indicators for status monitoring. It also offers strong isolation and long relay contact life.

Q3: How does the GE General Electric IC694MDL940 Discrete Output Module perform in operation?

A3: The GE General Electric IC694MDL940 Discrete Output Module provides reliable switching with a response time of about 15 milliseconds. It supports a wide range of loads with a maximum inrush current of 5 Amps and ensures stable operation with optical isolation between field and backplane.

Q4: What industries can the GE General Electric IC694MDL940 Discrete Output Module be applied to?

A4: The GE General Electric IC694MDL940 Discrete Output Module is widely used in industries such as manufacturing, process control, energy, and automation systems where control of field devices through relay outputs is required.
