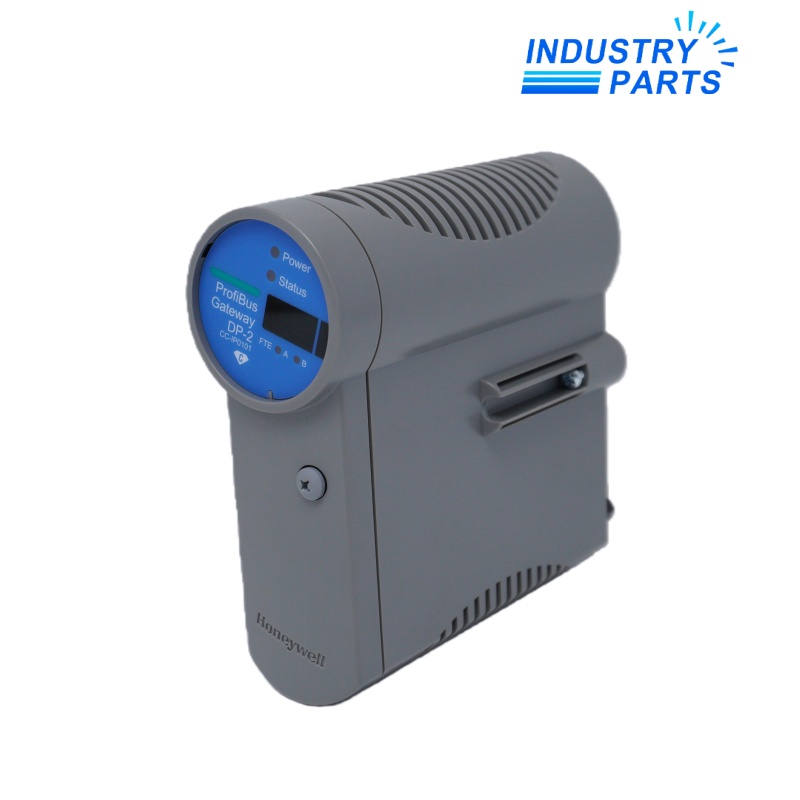

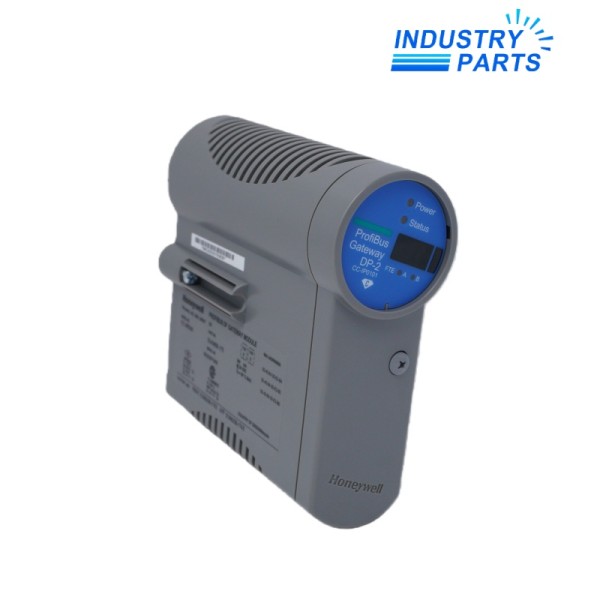

Honeywell CC-IP0101 51410056-175 Profibus DP Gateway Module
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell CC-IP0101 51410056-175 Profibus DP Gateway Module
- Item NO.CC-IP0101
- Weight0.0000 kg = 0.0000 lb = 0.0000 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2025-12-04
- Series C PROFIBUS Gateway Module connecting C300 control to PROFIBUS DP field networks.
Honeywell CC-IP0101 51410056-175 Profibus DP Gateway Module
Series C PROFIBUS Gateway Module connecting C300 control to PROFIBUS DP field networks.
Technical Summary
Honeywell CC-IP0101 is a Series C PROFIBUS Gateway Module for integration of PROFIBUS DP devices with the Experion PKS C300 environment.
The gateway mounts on the CC-TPOX01 PGM IOTA. It operates as the DP master for the connected field networks and exchanges device data with the Experion control architecture over Fault Tolerant Ethernet.
PGM engineering includes the gateway hardware, IOTA, FTE device index, PROFIBUS segment design, device-support blocks, slave configuration and redundancy settings.
Specifications
| Model | CC-IP0101 |
| Honeywell part number in existing title | 51410056-175 |
| Product type | PROFIBUS Gateway Module (PGM) |
| Platform | Experion PKS Series C |
| Paired IOTA | CC-TPOX01 |
| Field network | PROFIBUS DP |
| Gateway role | DP master |
| PROFIBUS networks | Two per gateway architecture |
| Supervisory integration | Fault Tolerant Ethernet |
| Redundancy | Optional with a second PGM/IOTA assembly |
| Engineering objects | PROFIBUS device-support blocks and device configuration |
| Asset-management integration | Supported for qualified devices and communication profiles |
| Series family | Experion PKS Series C |
| Installation environment | Industrial control cabinet |
| Series C internal ambient limit | 0 to 60 °C |
| Transportation and storage limit | -40 to 85 °C |
| Relative humidity | 5 to 95%, non-condensing |
| Enclosure classification | IP20 / NEMA 1 when installed as specified |
Features
- Connects PROFIBUS DP field devices to C300 control strategies.
- Supports two independent DP network connections through the paired IOTA.
- Operates as an FTE node in the Experion architecture.
- Supports non-redundant and redundant gateway configurations.
- Provides PROFIBUS diagnostics to the engineered control environment.
- Supports qualified device integration through device-support definitions.
- Can be installed locally with the controller or remotely over the qualified FTE design.
Compatibility
- Use with the CC-TPOX01 PGM IOTA and a supported Experion release.
- Confirm the gateway firmware and the device-support definition for every slave type.
- Engineer segment baud rate, cable length, termination, repeaters and station addresses together.
- For redundant operation, configure primary and backup FTE indexes and the synchronization connection correctly.
- Validate the total process-data and device count against the release-specific PGM capacity rules.
Replacement & Lifecycle
Replace CC-IP0101 only after backing up the PGM and device-support configuration in the Experion project.
Honeywell technical notices identify CC-IP0101 as the Series C PGM across several Experion releases; firmware and release compatibility must therefore be checked before loading a replacement.
A migration to another PGM generation requires review of the paired IOTA, firmware, device files, network architecture and qualification scope.
Applications
- Drives and motor-control devices on PROFIBUS DP.
- Remote I/O and intelligent field-device integration.
- C300 access to two PROFIBUS DP networks.
- Redundant PGM installations for higher availability.
- Local or remote gateway placement over FTE.
