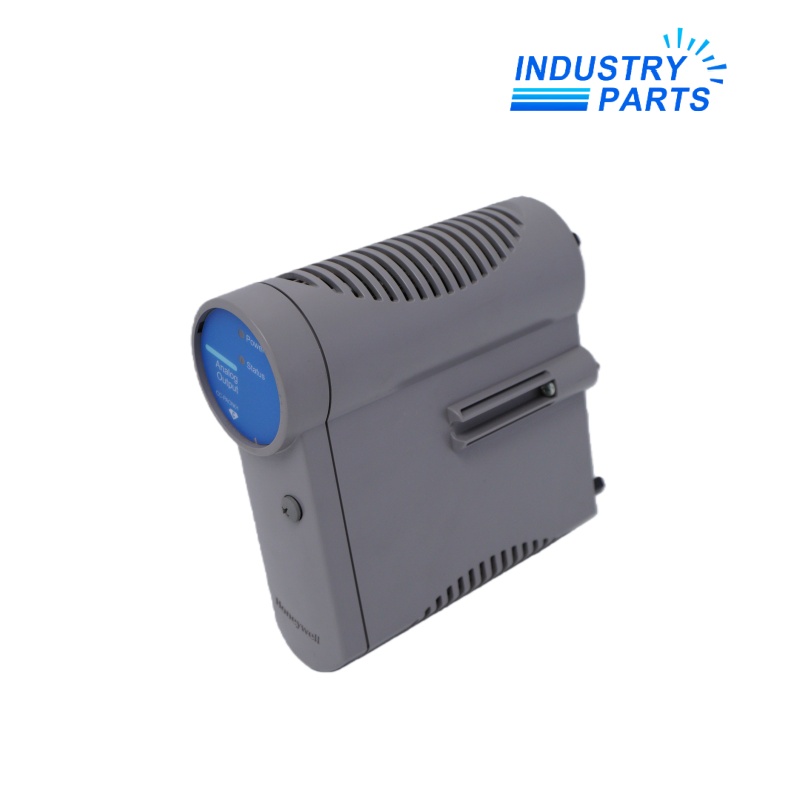

Honeywell CC-PAON01 51410070-175 Analog Output Module
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell CC-PAON01 51410070-175 Analog Output Module
- Item NO.3537522
- Weight0.5500 kg = 1.2125 lb = 19.4007 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2026-02-06
- Honeywell Analog Output Module
CC-PAON01
Key Information
CC-PAON01 is a high-performance analog output module from Honeywell's Experion PKS C300 Series C I/O family. It provides 16 independent analog output channels, converting digital control signals from the C300 controller into precise 4-20 mA or 0-10 V signals for field actuators such as control valves, variable frequency drives, and positioners.
The module supports 16-bit D/A conversion with a calibrated accuracy of ±0.35% of full scale at 25°C, ensuring precise control of critical process loops. It features extensive self-diagnostics, output readback capability, and per-channel open-circuit detection for rapid fault identification.
The module is designed for the non-HART analog output application (N = Non-HART), distinguishing it from the CC-PAOH01 (HART-enabled) variant. It is compatible with the C300 controller and requires a dedicated IOTA such as CC-TAON01 or CC-TAON11.
- Honeywell Experion PKS Series C
- 16-channel analog output
- Non-HART variant (N suffix)
- 16-bit D/A conversion
- CC-TAON01/11 IOTA required
Functions
Signal conversion & control
- Digital-to-analog conversion — Receives digital control signals from the C300 controller and converts them to precise 4-20 mA or 0-10 V analog outputs using 16-bit D/A conversion technology.
- Flexible output configuration — Each channel can be independently configured for current (4-20 mA) or voltage (0-10 V) output, accommodating a wide range of field devices.
- Output readback — Monitors actual output current or voltage and reports back to the control system for verification and diagnostics, improving control loop reliability.
Diagnostics & protection
- Extensive self-diagnostics — Built-in diagnostic capabilities continuously monitor module health and channel status for proactive maintenance.
- Open-circuit detection — Each output channel includes open-circuit detection to identify field wiring faults, reducing troubleshooting time.
- Configurable fail-safe behavior — Per-channel FAILOPT configuration allows HOLD LAST VALUE or SHED to SAFE VALUE on failure, ensuring process safety.
Specifications
Electrical & performance
| Manufacturer | Honeywell Process Solutions |
| Model | CC-PAON01 |
| Part Number | 51410070-175 / 51410070-176 |
| Product type | Analog Output Module (Non-HART) |
| Output channels | 16 |
| Output type | 4-20 mA / 0-10 V (per channel configurable) |
| Resolution | 16-bit |
| Calibrated accuracy (25°C) | ±0.35% of full scale (including linearity) |
| Output current range | 0 mA, 2.9 mA to 21.1 mA |
| Max load resistance (current) | 800 Ω @ 24V |
| Max open circuit voltage | 22 V |
| Output ripple | < 100 mV p-p |
| Temperature drift | 0.005% of full scale per °C |
| Power supply | 24 V DC |
Physical & environmental
| Mounting | Series C I/O rack / IOTA |
| IOTA (non-redundant) | CC-TAON01 |
| IOTA (redundant) | CC-TAON11 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Protection rating | IP20 |
| Hot-swap | Supported |
| Certifications | CE, UL, CSA |
Installation
Proper installation of the CC-PAON01 analog output module ensures reliable signal generation and system stability.
Mounting & wiring guidelines
| Mounting position | Series C I/O rack |
| IOTA (non-redundant) | CC-TAON01 (required) |
| IOTA (redundant) | CC-TAON11 |
| Field wiring | Shielded twisted-pair cable recommended |
| Wire size | Up to 2.5 mm² (14 AWG) |
| Grounding | Single-point ground for cable shield |
| Load connection | Connect to output terminals per wiring diagram |
- Install the CC-PAON01 in a clean, ventilated control cabinet (IP20) with ambient temperature within the specified operating range (-40°C to +70°C).
- Use the appropriate IOTA (CC-TAON01 for non-redundant, CC-TAON11 for redundant configurations). The module plugs directly into the IOTA, which provides the terminal connections.
- When wiring field devices, ensure correct polarity for 4-20 mA current loops. The module provides terminals for each output channel.
- Verify total load resistance is within the specified range (max 800 Ω for current output at 24V).
- Observe proper cable shielding and single-point grounding to prevent EMI interference on analog signals.
Lifecycle
Active currently in production — fully supported
Product status: The CC-PAON01 remains an active, supported product in Honeywell's Series C I/O portfolio. It continues to be the recommended non-HART analog output solution for new Experion PKS installations and system expansions.
Spare parts & support: Replacement units and accessories are available through Honeywell's standard support channels and authorized distributors. The Series C I/O family is designed for long‑term availability.
Replacement & migration:
- 16-channel high-density output
- Per-channel configurable output (4-20 mA or 0-10 V)
- Improved accuracy (±0.35% full scale)
- Enhanced diagnostics and hot-swap support
- Redundant configuration support
Recommendation: For new Experion PKS analog output applications without HART requirement, the CC-PAON01 remains the recommended solution.
