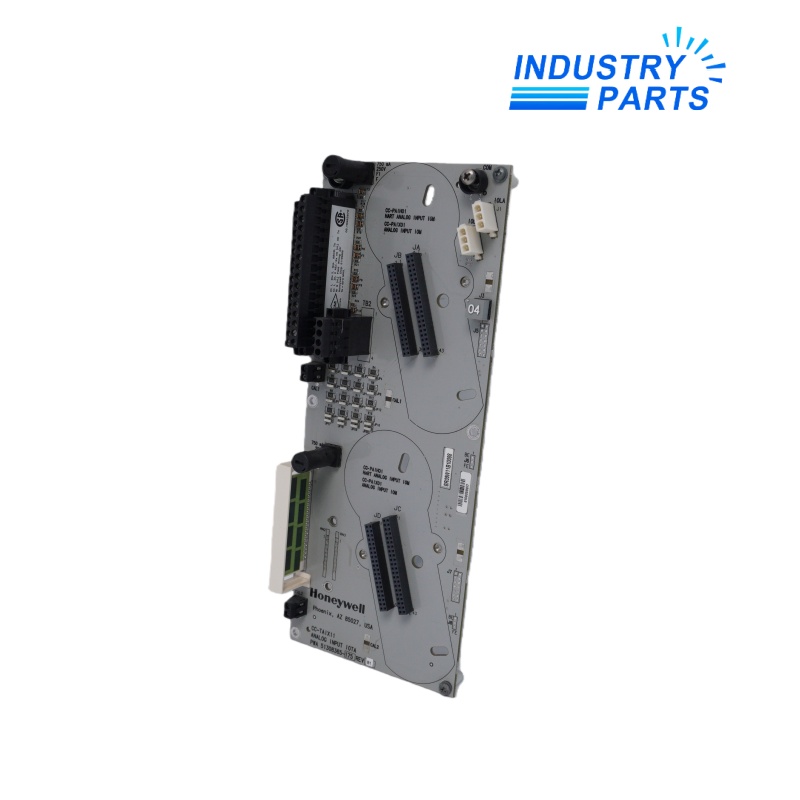

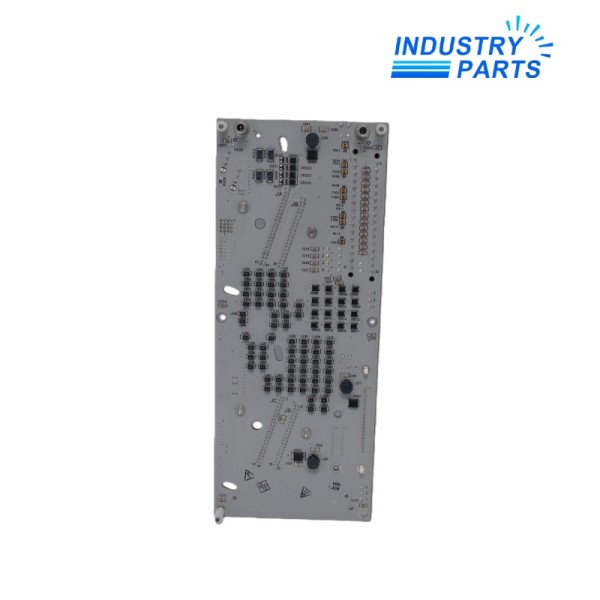

Honeywell CC-TAIX11 51308365-175 Analog Input IOTA Module

Honeywell CC-TAIX11 51308365-175 Analog Input IOTA Module

Item NO.: 3537479
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameHoneywell CC-TAIX11 51308365-175 Analog Input IOTA Module
  • Item NO.3537479
  • Weight1.0000 kg = 2.2046 lb = 35.2740 oz
  • CategoryDCS
  • BrandHoneywell
  • Creation Time2026-02-06
  • Honeywell Analog Input IOTA Module
Honeywell CC-TAIX11 Series C Redundant Analog Input IOTA | HTML Preview

Honeywell CC-TAIX11 Series C Redundant Analog Input IOTA

ManufacturerHoneywellModelCC-TAIX11Product TypeSeries C Redundant Analog Input IOTA

01Product Identification

Honeywell CC-TAIX11 is the 12-inch redundant analog input I/O Termination Assembly for Series C high-level analog input modules. It provides the redundant field-termination and module-mounting arrangement used with compatible 16-channel HART and non-HART analog input modules in Experion PKS Series C systems.

Configuration ControlMatch the exact model, ratings, installed system, wiring, required approvals, and hardware revision before ordering.

02Engineering Data

Manufacturer Honeywell
Model CC-TAIX11
Product Type Analog Input IOTA, redundant
System Family Experion PKS Series C I/O
Nominal IOTA Size 12 inches
Redundancy Supported
Associated Channel Count 16-channel compatible analog input modules
Compatible HART Modules CC-PAIH01 and CC-PAIH02
Compatible Non-HART Modules CC-PAIX01 and CC-PAIX02
Non-Redundant Counterpart CC-TAIX01, 6-inch IOTA
Supported Field Signals Current or voltage as supported by the installed analog input module
Maintenance Scope IOTA, module pair, terminal plugs, field wiring, and fuses

03Functions

Operating Functions

  • Provides the redundant 12-inch IOTA arrangement for compatible Series C analog input modules.
  • Combines field termination, module mounting, distribution, and protection functions in the Series C architecture.
  • Supports HART-capable or non-HART high-level analog input modules according to the installed module model.
  • Keeps permanent field wiring on the termination assembly during module service.
  • Works with Series C diagnostics and redundancy functions through the installed module pair.
  • Model-specific pinout and wiring information is defined in the Honeywell Series C I/O user guide.

Product Identity

Manufacturer: Honeywell

Model: CC-TAIX11

Product Type: Series C Redundant Analog Input IOTA

04System Integration

  • Use with CC-PAIH01, CC-PAIH02, CC-PAIX01, or CC-PAIX02 only in a Honeywell-documented compatible configuration.
  • Confirm the two installed module models and hardware revisions before forming a redundant pair.
  • Match current or voltage field wiring, channel jumpers, terminal plugs, and field-power design to the installed module type.
  • CC-TAIX01 is the separate 6-inch non-redundant IOTA and is not the redundant equivalent form factor.
  • Do not confuse CC-TAIX11 with CC-TAID11 differential IOTA or later CC-TAIX61 hardware.

05Applications

  • Redundant high-level analog input termination in Experion PKS Series C.
  • 16-channel 4...20 mA and HART transmitter installations using compatible modules.
  • Non-HART current or voltage analog inputs using CC-PAIX01 or CC-PAIX02.
  • Maintenance replacement of an installed 12-inch CC-TAIX11 IOTA.

06Lifecycle

  • Document every channel, jumper, terminal plug, fuse, field-power connection, module revision, and redundancy state before removal.
  • Isolate field and system power according to Honeywell and site procedures before replacing the IOTA.
  • Inspect the redundant module pair and field wiring for faults that may have caused the original failure.
  • After installation, verify all 16 channels, open-wire diagnostics, HART functions where used, and redundancy failover.
  • Maintain the exact IOTA and module combination approved for the installed Experion release.

FAQFrequently Asked Questions

What is CC-TAIX11?

It is the 12-inch redundant analog input IOTA for compatible Honeywell Series C modules.

Which HART modules are supported?

Honeywell lists CC-PAIH01 and CC-PAIH02 with this IOTA.

Which non-HART modules are supported?

Honeywell lists CC-PAIX01 and CC-PAIX02.

What is the non-redundant counterpart?

CC-TAIX01 is the 6-inch non-redundant analog input IOTA.

Does the IOTA itself define the input range?

The installed analog input module, channel wiring, and IOTA jumper arrangement define the supported current or voltage operation.

Why is no weight shown?

The verified Honeywell Series C documents used for this page do not provide an exact product weight for CC-TAIX11.
