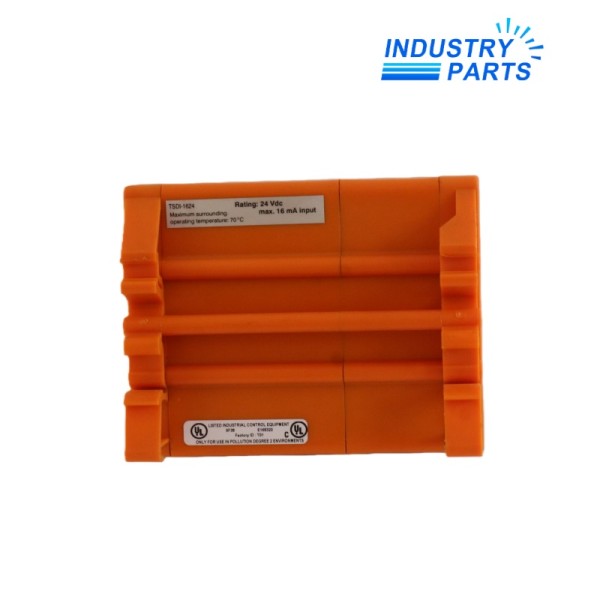

Honeywell FC-TSDI-1624 Digital Input Module
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell FC-TSDI-1624 Digital Input Module
- Item NO.3521110
- Weight0.0000 kg = 0.0000 lb = 0.0000 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2026-01-14
- Honeywell FC-TSDI-1624 16-channel 24 VDC safe digital input field termination assembly.
FC-TSDI-1624 · 16-Channel 24 VDC Safe Digital Input FTA

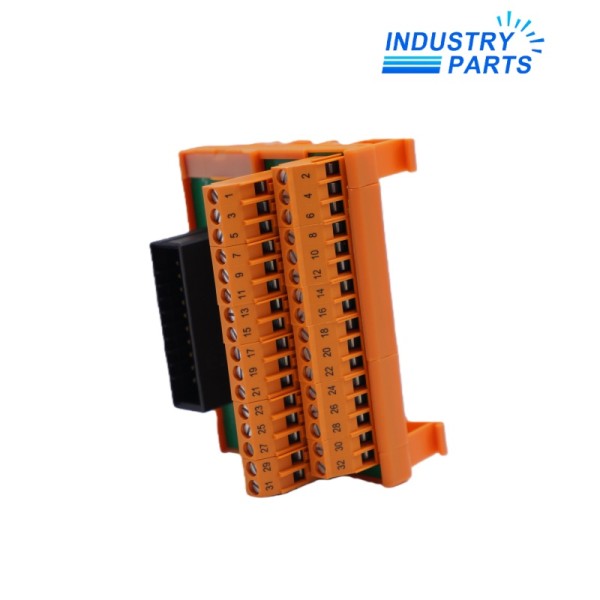

A 16-channel screw-terminal field termination assembly for 24 VDC safe digital input wiring in Honeywell Safety Manager systems.
Key Information
- Safe digital input field termination assembly.
- 16 channels at 24 VDC.
- Documented type numbers: FS-TSDI-1624 and FC-TSDI-1624.
- Interfaces SICC-0001/Lx system interconnection cable with external screw-terminal wiring.
- Approvals include CE, TÜV, UL, CSA and FM.
Functions

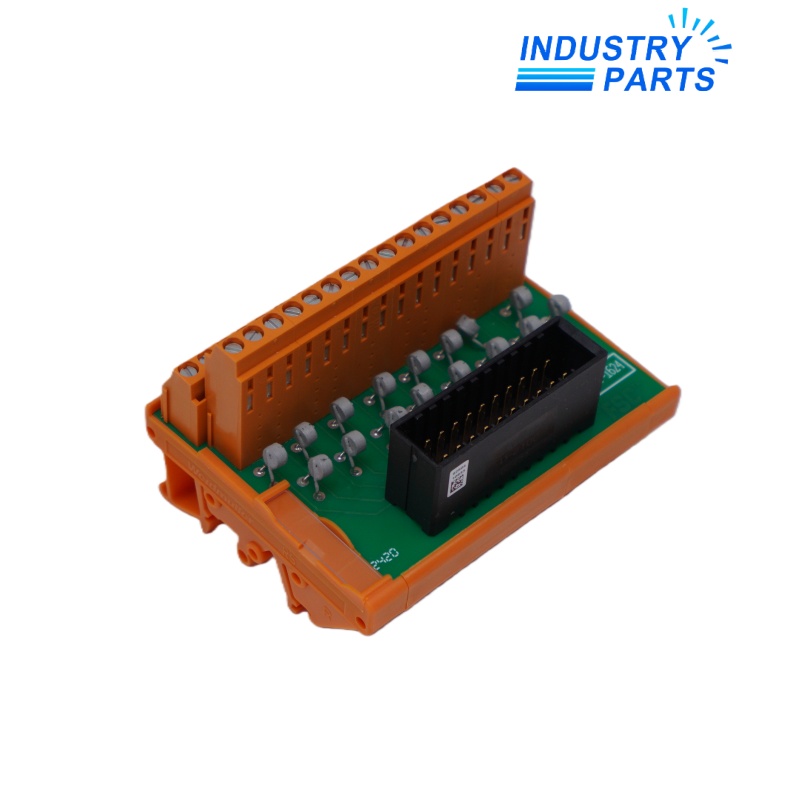

FC-TSDI-1624 is the passive field-wiring interface between the system interconnection cable and sixteen external digital input circuits. It includes PTC protection in each input path.
It is a termination assembly, not the safe input processing module; diagnostics and safety logic remain in associated Safety Manager hardware.
Specifications
| Parameter | Official specification |
|---|---|
| Model | FC-TSDI-1624 |
| Function | Safe digital input FTA |
| Channels | 16 |
| Input voltage | 24 VDC −15% / +30% |
| Input current | ≤15 mA at 24 VDC with a redundant pair of SDI-1624 modules as load |
| PTC resistance at 25 °C | 260 Ω ±25% |
| PTC steady current at 24 VDC | Typically 45 mA ±35% |
| Dimensions | 90 × 70 × 58 mm |
| DIN rail | TS32 or TS35 × 7.5 |
| DIN rail length used | 91 mm |
| Maximum wire size | 2.5 mm² / AWG 14 |
| Wire strip length | 7 mm |
| Terminal tightening torque | 0.5 Nm |
| Approvals | CE, TÜV, UL, CSA, FM |
Installation
Mount on TS32 or TS35 × 7.5 DIN rail and reserve 91 mm. Use the documented conductor size, 7 mm strip length and 0.5 Nm torque. Connect the supported SICC-0001/Lx cable and verify channel numbering.
FC-TSDI-1624C is a separately identified model; confirm the exact FTA, cable and SDI arrangement before substitution.
Lifecycle
Any replacement in a safety instrumented function must preserve approved wiring, associated SDI modules, system cable and safety validation records. Check current Honeywell lifecycle status before ordering.
