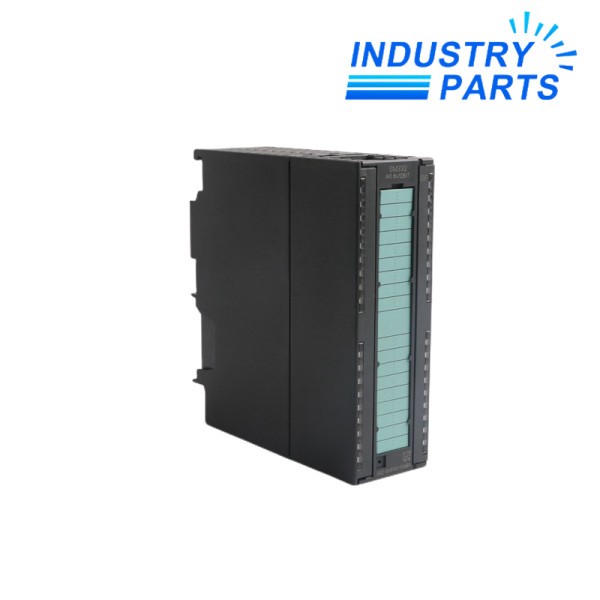

SIEMENS 6ES7332-5HF00-0AB0 SM 332 Series Analogue Module
An SM 332 output module providing eight configurable voltage or current channels with diagnostics.
Product Overview
6ES7332-5HF00-0AB0 is an isolated SIMATIC S7-300 SM 332 analog output module. Its eight channels can be parameterized for the supported voltage or current ranges and connect through a 40-pole front connector.
The module provides diagnostic capability and supports removal or insertion when an active backplane bus is used in the configured S7-300 station.
Performance
- Provides eight analog output channels with 11- or 12-bit resolution according to the selected range.
- Completes digital-to-analog conversion in 0.8 ms per channel.
- Drives voltage loads of at least 1 kΩ or current loads up to 500 Ω within the specified range.
- Protects voltage outputs against short circuit with a maximum stated short-circuit current of 25 mA.
- Supports shielded signal cables up to 200 m when the installation requirements are met.
Technical Details
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7332-5HF00-0AB0 |
| Product Family | SIMATIC S7-300 SM 332 |
| Output Type | Isolated analog output |
| Number of Outputs | 8 |
| Resolution | 11 / 12 bit |
| Voltage Ranges | 0–10 V; 1–5 V; -10 to +10 V |
| Current Ranges | 0–20 mA; 4–20 mA; -20 to +20 mA |
| Minimum Voltage Load | 1 kΩ |
| Maximum Current Load | 500 Ω |
| Conversion Time | 0.8 ms |
| Load Supply | 24 V DC, reverse-polarity protected |
| Backplane Current | 100 mA at 5 V DC |
| Maximum L+ Current, No Load | 340 mA |
| Typical Power Loss | 6 W |
| Front Connector | 40-pole |
| Maximum Shielded Cable Length | 200 m |
| Lifecycle | Product phase-out announced from 2023-10-01; spare-part classification in current regions |
System Integration
- Parameterize each channel for its intended voltage or current range in the STEP 7 hardware configuration.
- Verify the field-device burden before assigning a channel to current or voltage service.
- Use the specified 40-pole front connector and preserve shield routing and reference-potential wiring during exchange.
- Confirm that the rack uses an active backplane bus before relying on removal or insertion during operation.
- Check the 24 V DC load supply and channel diagnostics after the restored hardware configuration is accepted.
Applications
- Analog setpoints for valves, actuators and variable-speed drives.
- Current-loop commands to industrial instrumentation using 0–20 mA or 4–20 mA ranges.
- Bipolar voltage or current references for supported process equipment.
- Service replacement in existing S7-300 systems requiring eight isolated analog outputs.
FAQ
How many outputs does the 5HF00 module provide?
It provides eight configurable analog output channels.
Which front connector is required?
The module uses a 40-pole front connector.
Can voltage and current ranges be configured?
Yes. The channel parameters support the listed unipolar and bipolar voltage or current ranges.
What load limit applies in current-output mode?
The documented maximum current-output load is 500 Ω.
Can the module be removed while the rack is running?
Removal and insertion capability depends on using the configured active backplane bus and the approved service procedure.
What must be checked when updating the existing product page?
Preserve the existing title and verify the complete article number, channel count, output ranges, connector and lifecycle details.
