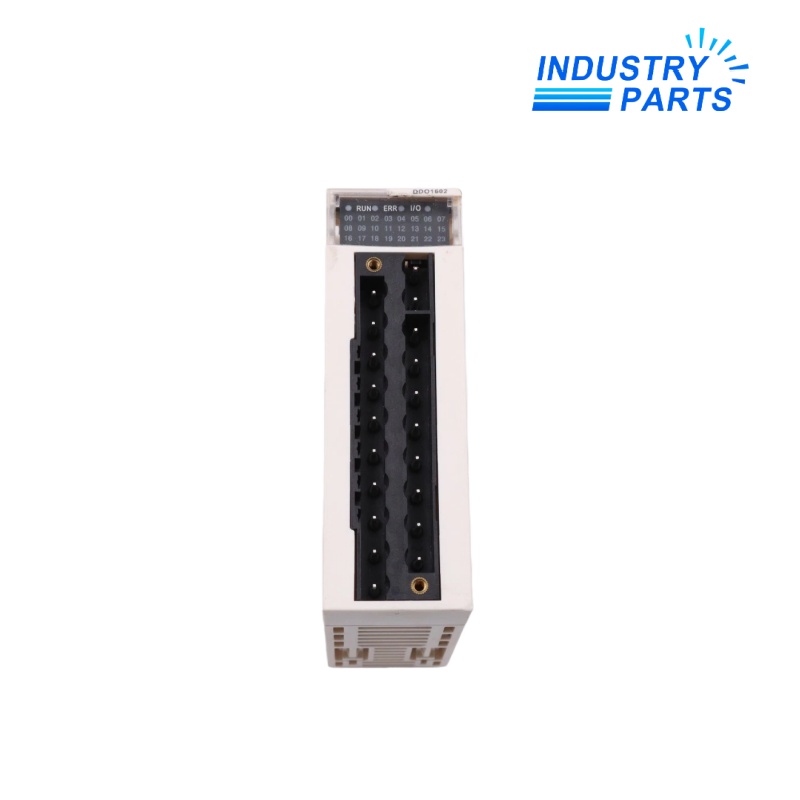

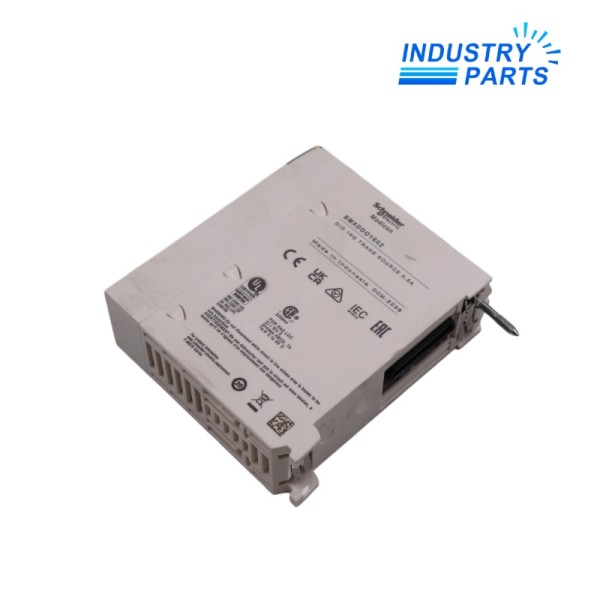

Schneider Electric BMXDDO1602 Digital Outputs Module

Schneider Electric

Schneider Electric BMXDDO1602 Digital Outputs Module

Range of Product: Modicon X80

Product or Component Type: Discrete output module

Discrete Output Number: 16 conforming to IEC 61131‑2

Discrete Output Type: Solid state

Discrete Output: Logic positive

Discrete Output Voltage: 24 V (19 … 30 V DC)

Discrete Output Current: 0.5 A

Current per Channel: 0.625 A

Maximum Current per Module: 10 A

Maximum Leakage Current: 0.5 mA at state 0

Maximum Voltage Drop: < 1.2 V at state 1

Insulation Resistance: > 10 MΩ 500 V DC

The BMXDDO1602 is a 16-channel discrete output module designed for 24V DC operation. This module uses solid-state (transistor) logic and features Source (Positive) output logic.

It is specifically engineered to drive medium-power loads such as solenoid valves, relays, and indicators. The module includes robust protection features, including short-circuit protection and overvoltage protection, making it highly reliable for demanding industrial "mission-critical" applications.
