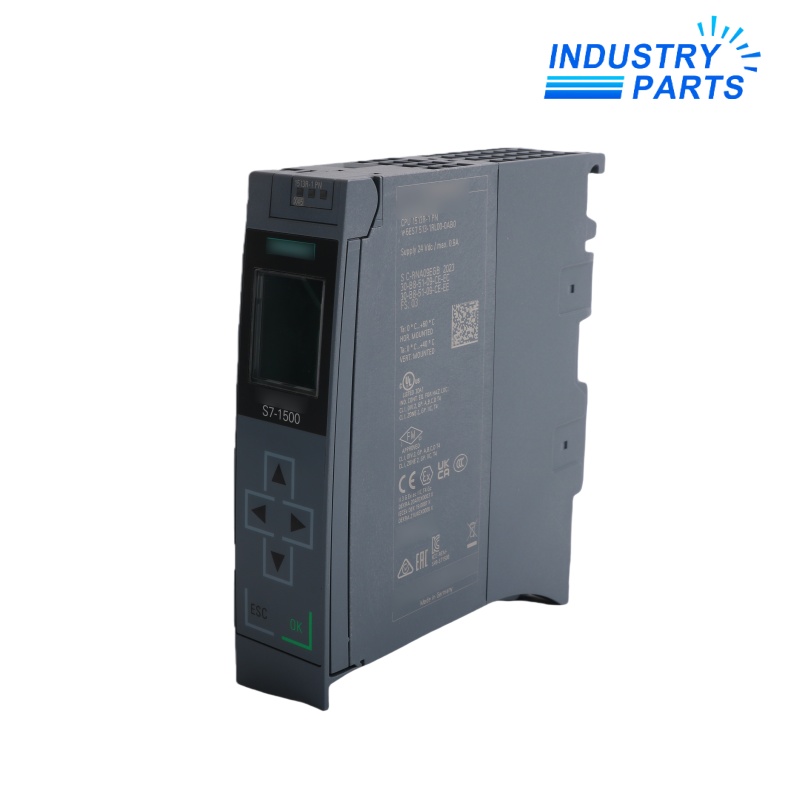

Siemens 6ES7513-1RL00-0AB0 SIMATIC S7-1500R CPU 1513R-1 PN
01Product Overview
Siemens 6ES7513-1RL00-0AB0 is the CPU 1513R-1 PN for the redundant SIMATIC S7-1500R system. It provides 300 KB of program memory and 1.5 MB of data memory, with one PROFINET RT interface using an integrated two-port switch. The CPU is designed to work within a correctly configured S7-1500R redundant system and requires a SIMATIC Memory Card, matching partner CPU, compatible firmware and TIA Portal project.
02Performance
Operating Capabilities
- Typical bit execution time is 80 ns, with 96 ns for word operations, 128 ns for fixed-point arithmetic and 512 ns for floating-point arithmetic.
- The CPU provides 300 KB of program memory and 1.5 MB of data memory.
- The maintenance-free memory design uses a required SIMATIC Memory Card for load memory.
- Typical power loss is 5.7 W.
- The integrated PROFINET RT interface has a two-port switch for the redundant-system network architecture.
- Redundancy performance depends on the complete paired CPU, network topology and project configuration.
Product Identity
- Manufacturer: Siemens
- Model: 6ES7513-1RL00-0AB0
- Product Type: SIMATIC S7-1500R CPU 1513R-1 PN redundant-system central processing unit
- Status: Officially identified as spare part
03Technical Details
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7513-1RL00-0AB0 |
| Product Designation | CPU 1513R-1 PN |
| Automation System | SIMATIC S7-1500R |
| Hardware Functional Status | FS01 |
| Firmware Version | V2.9 |
| Program Memory | 300 KB |
| Data Memory | 1.5 MB |
| PROFINET Interfaces | 1 RT interface with integrated 2-port switch |
| SIMATIC Memory Card | Required; load memory up to 32 GB |
| Rated Supply | 24 V DC |
| Permissible Supply Range | 19.2 to 28.8 V DC |
| Typical Power Loss | 5.7 W |
| Commercial Position | Spare part |
04System Integration
- Use two compatible R-CPUs with the required firmware and redundant-system configuration.
- Install a suitable SIMATIC Memory Card and preserve the complete TIA Portal project.
- For firmware V2.9, use the documented TIA Portal V17 engineering support or a later supported environment.
- Preserve PROFINET device names, IP addresses, ring topology, ports and redundancy settings.
- Verify all distributed I/O, communication devices and diagnostic assignments in the redundant project.
- After exchange, test partner synchronization, network interruption behavior, switchover and restoration under the documented commissioning procedure.
05Applications
- Redundant automation systems built on the SIMATIC S7-1500R platform.
- Process and infrastructure applications requiring controller redundancy.
- Systems using PROFINET RT distributed I/O in the documented R-system topology.
- Spare-part replacement where the partner CPU, firmware and TIA Portal project are available.
- Lifecycle maintenance of installed CPU 1513R-1 PN pairs.
- Projects that require maintenance-free memory backup and a controlled SIMATIC Memory Card.
06FAQ
What is Siemens 6ES7513-1RL00-0AB0?
It is the SIMATIC S7-1500R CPU 1513R-1 PN for redundant controller systems.
How much work memory is provided?
The CPU has 300 KB for the program and 1.5 MB for data.
Is a SIMATIC Memory Card required?
Yes. Siemens specifies a SIMATIC Memory Card for the CPU load memory.
How many PROFINET interfaces are integrated?
It provides one PROFINET RT interface with an integrated two-port switch.
Can the CPU operate as an R system by itself?
The intended redundant-system function requires a correctly matched partner CPU, network topology, firmware and TIA Portal project.
What must be tested after replacement?
Test project loading, partner synchronization, PROFINET communication, all I/O, switchover, network interruption response, diagnostics and system restoration.
