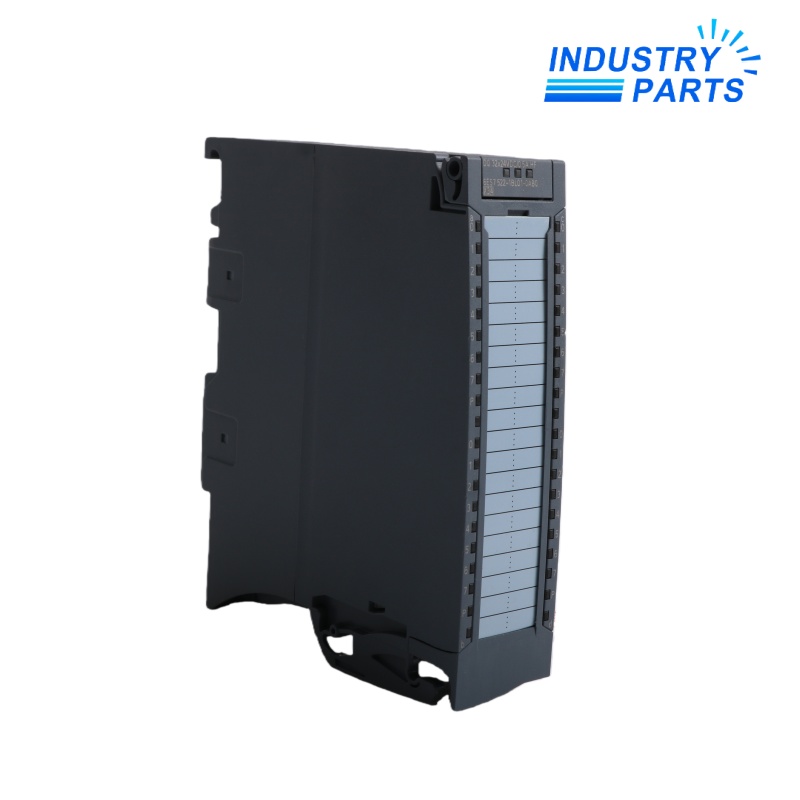

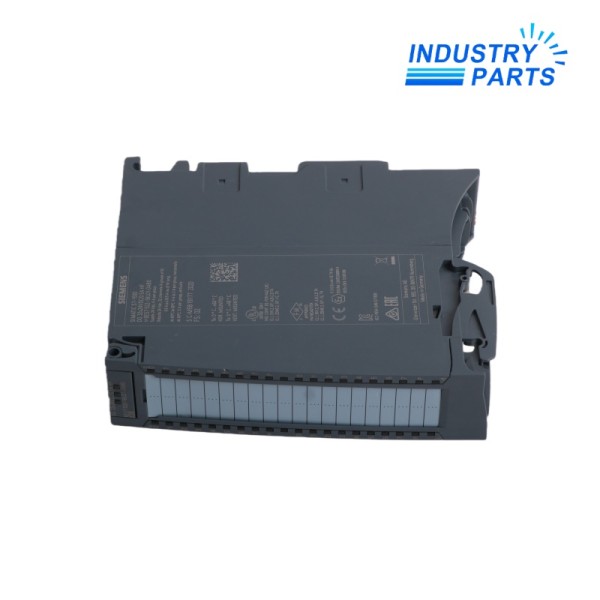

Siemens 6ES7522-1BL01-0AB0 SIMATIC S7-1500 DQ 32x24 V DC/0.5 A HF Module
A high-feature S7-1500 output module with thirty-two 24 V DC, 0.5 A channels, diagnostics, substitute values and switching-cycle counting.
Product Identification
6ES7522-1BL01-0AB0 is the SIMATIC S7-1500 DQ 32x24 V DC/0.5 A HF module. Its thirty-two sourcing outputs are arranged in four groups of eight, with a 4 A published group limit.
The HF execution provides channel diagnostics, substitute values and switching-cycle counting. Isochronous operation and prioritized startup are supported, while the front connector is ordered separately.
The 1BL01 execution must remain distinct from the earlier 1BL00 article and from lower-feature output modules in the same enclosure.
Engineering Data
- Module designation
- DQ 32x24 V DC/0.5 A HF
- Output count
- 32 sourcing outputs
- Channel grouping
- 4 groups of 8
- Rated current per channel
- 0.5 A
- Maximum current per group
- 4 A
- Diagnostics
- Single-channel diagnostics
- Substitute values
- Supported
- Switching-cycle counter
- Supported
- Isochronous operation
- Supported
- Prioritized startup
- Supported
- Front connector
- Ordered separately
- Functional status
- FS02 / firmware V1.1.0
Functions
Switch thirty-two loads
The module provides four separately considered groups of eight 24 V DC outputs.
Expose channel faults
Single-channel diagnostics identify supported output and field-supply conditions.
Apply substitute states
The controller project can define behavior for supported fault or stop conditions.
Track relay-equivalent duty
Switching-cycle counters support maintenance records for configured channels.
Applications
High-density output stations
Consolidates thirty-two documented commands in one S7-1500 signal module.
Diagnostic production cells
Channel-level reporting helps maintenance teams isolate load or wiring faults.
Isochronous projects
The module can participate where the approved project uses isochronous operation.
Lifecycle
Archive the output profile
Save substitute values, diagnostics, cycle counters and project version.
Control group loading
Calculate steady and inrush current for each eight-channel group.
Commission systematically
Command every used output and verify faults, counters and interlocks.
About IndustryParts
https://www.industryparts.com/Controlled handling for 6ES7522-1BL01-0AB0
IndustryParts keeps the submitted 6ES7522-1BL01-0AB0 identity, requested quantity and installed-system evidence together so a proposed supply can be checked before dispatch.
- Suffix and MOD identity kept visible
- Mating hardware recorded before supply
- Acceptance evidence linked to the order
FAQ
What distinguishes 6ES7522-1BL01-0AB0 from 6ES7522-1BL00-0AB0?
The exact 1BL01 execution and its supported firmware and hardware functions must be matched in the project.
Is a front connector included with 6ES7522-1BL01-0AB0?
No. Siemens lists the front connector as a separate order item.
Which current limits matter for 6ES7522-1BL01-0AB0?
Observe 0.5 A per channel and the published 4 A total for each eight-channel group.
Why preserve switching-cycle data for 6ES7522-1BL01-0AB0?
The counters can form part of the maintenance baseline for frequently operated loads.
What proves 6ES7522-1BL01-0AB0 is commissioned correctly?
Verify project recognition, every commanded output, diagnostics, substitute behavior and required interlocks.
