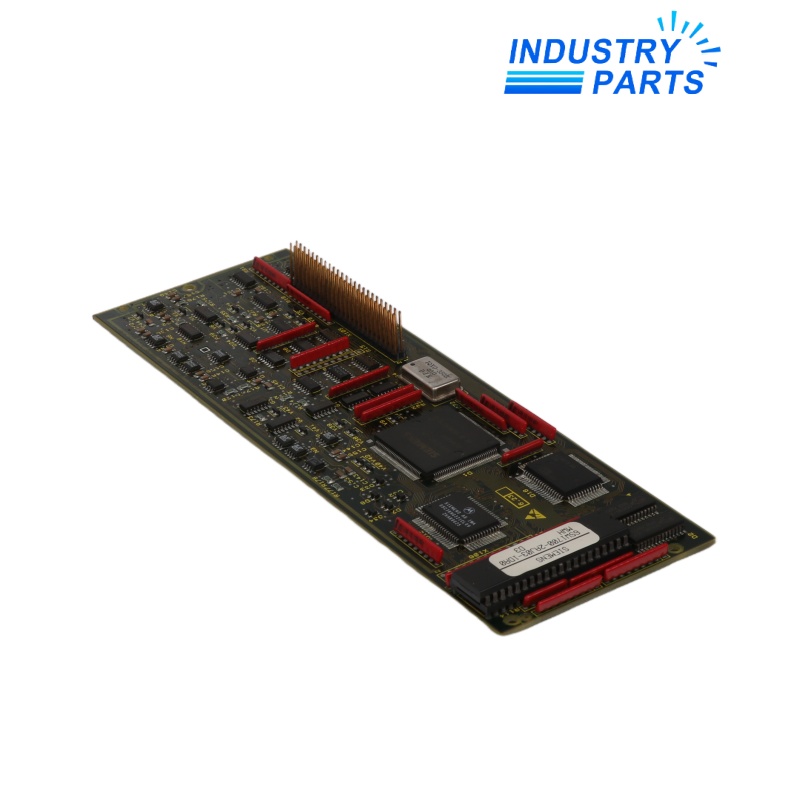

Siemens 6SE7090-0XX84-0AJ0 Drive Board
A SIMOVERT MASTERDRIVES electronic board identified by the complete 6SE7090-0XX84-0AJ0 order number.
Product Identification
6SE7090-0XX84-0AJ0 is a Siemens SIMOVERT MASTERDRIVES electronic board maintained under its complete order number. MASTERDRIVES documentation treats control, option and carrier electronics as system-specific assemblies whose connector and firmware context must be preserved.
The reviewed Siemens material does not publish stand-alone ratings for this exact AJ0 board. Selection should be controlled by the host converter MLFB, board position, revision fields and the original electronic assembly label.
Engineering Data
Functions
Exact execution traceability
Keeps the AJ0 board identity tied to the installed MASTERDRIVES record.
Connector-aware service
Requires every plug, ribbon cable and option relationship to be mapped before exchange.
Parameter preservation
Places the host backup and firmware record ahead of board removal.
Evidence-limited publication
Avoids assigning a circuit role or rating not confirmed in official material for this exact order number.
About IndustryParts
https://www.industryparts.com/Exact identity before quotation
IndustryParts prepares 6SE7090-0XX84-0AJ0 enquiries around the complete manufacturer label, requested quantity and destination. For controlled replacements, include the host-system record, field photographs and configuration evidence that apply to this exact execution.
Applications
Legacy drive maintenance
Replacing the same labelled board in a documented MASTERDRIVES converter.
Workshop comparison
Checking revision, connectors and mounting points against the removed assembly.
Controlled spare stock
Maintaining the full 6SE7090 identity with host-system compatibility evidence.
Lifecycle
Archive the host
Save parameters, converter MLFB, software release and alarm history.
Map the hardware
Label all connections and photograph 6SE7090-0XX84-0AJ0 before disturbing the board stack.
Return to service
Complete recognition, parameter, command, feedback and safety checks under the Siemens procedure.
FAQ
Can another 6SE7090 board replace 6SE7090-0XX84-0AJ0?
Not from the shared prefix alone. The AJ0 execution, host converter, connectors, firmware and revision evidence must be compatible.
What should be submitted for a 6SE7090-0XX84-0AJ0 quote?
Provide the converter MLFB, full board label, revision marks, board position, connector photographs and required quantity.
Why are no stand-alone electrical ratings shown for 6SE7090-0XX84-0AJ0?
The reviewed Siemens sources do not publish ratings for this exact board, so inferred values are intentionally omitted.
Which backup is needed before changing 6SE7090-0XX84-0AJ0?
Preserve the complete drive parameter set, option configuration, firmware information and any commissioning archive required by the host.
What proves 6SE7090-0XX84-0AJ0 is serviceable after fitting?
Correct board recognition, stable drive status, verified commands and feedback and passed interlock and safety tests are required.
Send the complete 6SE7090-0XX84-0AJ0 label, requested quantity and destination.
