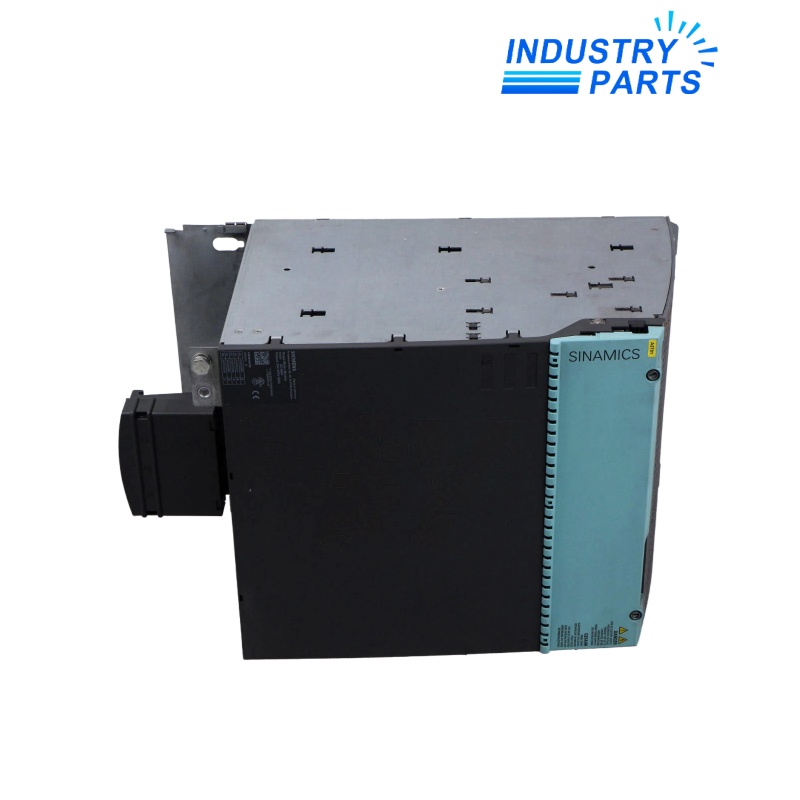

  • SINAMICS S120 booksize Single Motor Module
Siemens 6SL3120-1TE32-0AA4 SINAMICS S120 200 A Single Motor Module
SINAMICS S120 | Booksize Motor Module

Siemens 6SL3120-1TE32-0AA4 SINAMICS S120 200 A Single Motor Module

Active 200 A module with 140 A output at 8 kHz and a 300 mm high-current power section.

ManufacturerSiemensModel6SL3120-1TE32-0AA4Product TypeSINAMICS S120 booksize Single Motor Module

01Product Profile

Siemens 6SL3120-1TE32-0AA4 is the active 200 A Single Motor Module in the SINAMICS S120 booksize range and the official successor to 6SL3120-1TE32-0AA3. Siemens additionally identifies a 140 A output value at 8 kHz for this exact AA4 article. The detailed data sheet lists 141 A base-load current, 230 A S6 current and 282 A maximum current, together with a 3,995 µF DC-link capacitance and 0.144 m³/s internal cooling-air requirement.

Configuration BoundaryMatch the exact article, motor duty, DC-link design, power terminals, cooling, firmware and Safety Integrated project.

02Technical Data

Manufacturer Siemens
Article Number 6SL3120-1TE32-0AA4
Product Family SINAMICS S120
Construction Booksize, internal air cooling
DC Link / Electronics Supply 510 to 720 V DC / 24 V DC
Rated / Base-Load Current 200.0 A / 141.0 A
Output at 8 kHz 140 A
S6 / Maximum Current 230.0 A / 282.0 A
Type Rating at IN / IH 107.0 kW / 76.0 kW
DC-Link Current / Capacitance 200.0 A / 3,995 µF
Motor Connection M8 bolt (X1), 2.5 to 120 mm²
Motor Cable Length 100 m shielded; 150 m unshielded
Cooling-Air Requirement 0.144 m³/s
Power Loss, Typical / Maximum 2.03 kW / 2.09 kW
Protection / Dimensions IP20; 300 x 629 x 270 mm
Lifecycle Active product

03System Role

Drive-System Function

  • Provides the highest rated current in the requested booksize batch at 200 A.
  • Supports 140 A output at an 8 kHz pulse frequency according to the product description.
  • Delivers 230 A S6 current and 282 A maximum current.
  • Uses a 3,995 µF DC-link capacitance in the high-current power section.
  • Requires a 300 mm-wide, 629 mm-high installation envelope.
  • Supports extended Safety Integrated functions and DRIVE-CLiQ integration.

Product Identity

  • Manufacturer: Siemens
  • Model: 6SL3120-1TE32-0AA4
  • Product Type: SINAMICS S120 booksize Single Motor Module
  • Status: Active product

04Compatibility

  • Use the exact AA4 current profile, including the separate 140 A value at 8 kHz.
  • Verify 200 A DC-link current and 200 A busbar capacity in the complete system design.
  • Provide 2.5 to 120 mm² motor conductors at the M8 X1 connection.
  • Confirm Control Unit firmware, power-unit code, motor data, encoder and DRIVE-CLiQ topology.
  • Review lifting, cabinet structure, airflow, clearances, PE and shield connections.
  • When replacing AA3, use the official successor relationship but still perform complete commissioning and safety validation.

05Applications

Engineering Use

  • High-current S120 axes requiring up to 200 A rated output.
  • Applications whose switching-frequency design uses the documented 140 A value at 8 kHz.
  • Large multi-axis systems with DC-link and line-module capacity for a 200 A power section.
  • Modernization of legacy 0AA3 installations after full hardware and firmware comparison.
  • Cabinets designed for 2.09 kW maximum power loss and 0.144 m³/s airflow.

06FAQ

What output value applies at 8 kHz for 6SL3120-1TE32-0AA4?

Siemens identifies 140 A output at 8 kHz for this exact AA4 article.

Which rated and maximum currents are listed?

The data sheet specifies 200.0 A rated current and 282.0 A maximum current.

What is the S6 current at 40 percent duty?

The official value is 230.0 A.

How large is the AA4 power section?

It is 300 mm wide, 629 mm high and 270 mm deep.

How much heat must the cabinet remove?

The data sheet lists 2.03 kW typical and 2.09 kW maximum power loss, with 0.144 m³/s cooling air.

Is AA4 the official replacement for 0AA3?

Yes. Siemens identifies 6SL3120-1TE32-0AA4 as the successor to the legacy 200 A AA3 article.
