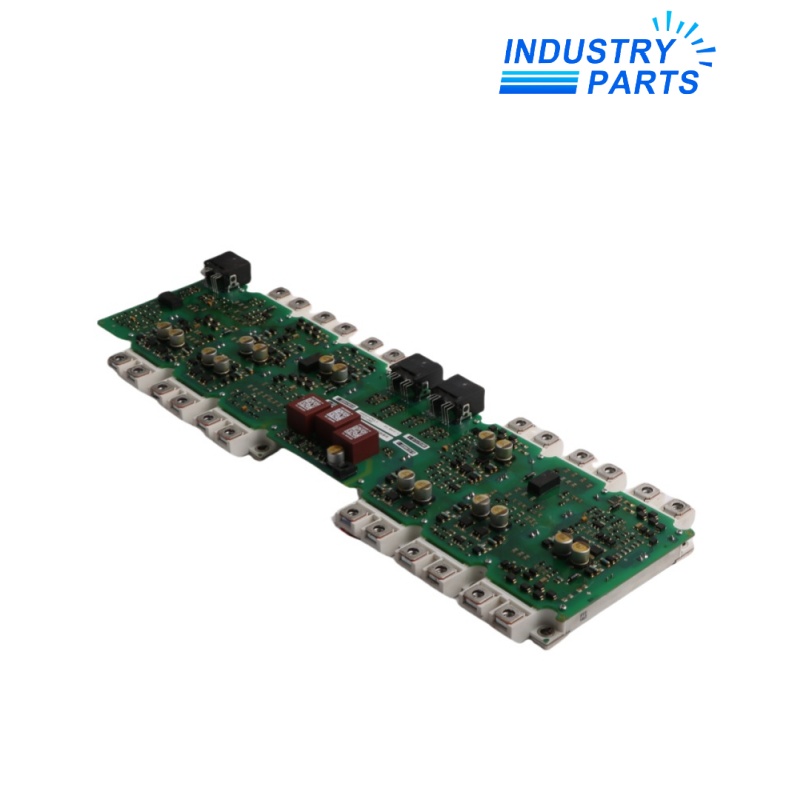

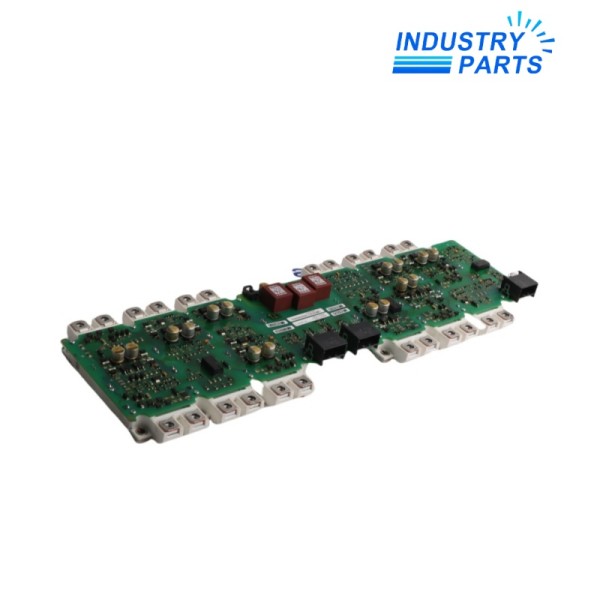

Siemens A5E00714561 FS300R12KE3 Converter Driver Board
A label-controlled Siemens converter driver board reference associated with an FS300R12KE3 power-stage assembly.
Overview
A5E00714561 is retained as the complete Siemens material reference for an FS300R12KE3 converter driver board. Selection must be based on the installed board label and host power-stage identity, not on visual similarity alone.
The current IndustryParts listing title is preserved. Electrical limits, interchangeability and supply scope should be confirmed from the actual assembly before the board is released for service.
Specs
| Manufacturer | Siemens |
|---|---|
| Material Reference | A5E00714561 |
| Listed Board Identity | FS300R12KE3 converter driver board |
| Service Context | Industrial drive power-stage repair |
| Primary Match Point | Complete installed board label |
| Host Verification | Full drive and power-block article |
| Revision Check | Hardware and revision markings |
| Supply-Scope Check | Board-only or board with power components |
| Installation Control | Qualified power-electronics service procedure |
Features
- Keeps the gate-driver reference linked to the matching semiconductor assembly during service planning.
- Uses the complete Siemens material number as the principal procurement identifier.
- Supports controlled repair when connectors, mounting points and hardware execution agree with the removed assembly.
Applications
- Repair of the documented Siemens drive power stage.
- Planned spare holding for a verified A5E00714561 installation.
- Board-level investigation after the surrounding semiconductor and supply circuits have been tested.
Lifecycle
- Record the drive article, board revision and power-module markings before removal.
- Diagnose DC-link, auxiliary-supply, gate-path and feedback faults so a replacement is not exposed to an unresolved failure.
- Apply isolation, discharge, ESD, thermal-interface and torque procedures appropriate to the host equipment.
- Complete staged electrical and functional tests before production release.
FAQ
Can A5E00714561 be selected only from the FS300R12KE3 marking?
No. The Siemens material number, complete board revision, connectors, host drive and physical power-stage execution should all agree.
What supply scope should be confirmed for A5E00714561?
Confirm in writing whether the quotation covers the driver board alone or a larger assembly containing semiconductor hardware.
Can A5E00714561 replace a nearby A5E driver-board reference?
Only a Siemens cross-reference or an engineering record for the exact host can establish interchangeability; similar appearance is insufficient.
Which photographs help verify A5E00714561?
Provide clear images of the A5E label, revision field, semiconductor markings, connectors, mounting points and the complete drive nameplate.
What should be checked before installing A5E00714561?
Test the surrounding power devices, auxiliary supplies, gate wiring, feedback circuits, cooling path and evidence of contamination or arcing.
What commissioning evidence should follow a A5E00714561 repair?
Retain insulation, gate-path, feedback, temperature and controlled-load test results with the drive service record.
