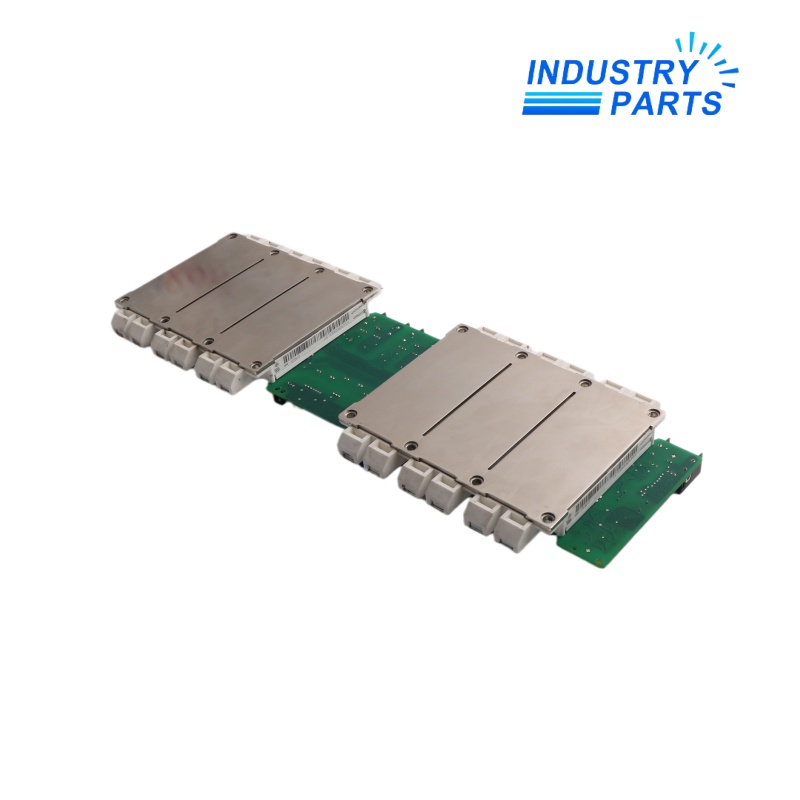

Siemens A5E00714562 IGD2/R4 Power-Block Repair Board
A host-specific Siemens service reference for the driver-board portion of an IGD2/R4 power-block repair.
Product Identification
A5E00714562 identifies a Siemens IGD2/R4 power-block repair board. It is an internal service component for a matching converter power section and is not a complete operational drive.
Safe selection depends on the removed-board label, complete host article, hardware revision, semiconductor assembly and cooling execution. Ratings or interfaces from another A5E reference must not be transferred to this board.
Engineering Data
| Manufacturer | Siemens |
|---|---|
| Material Reference | A5E00714562 |
| Service Description | Power-block repair board |
| Board Architecture | IGD2/R4 |
| Product Scope | Internal converter service component |
| Host Data Required | Complete article, serial and hardware revision |
| Interface Check | Gate, feedback and auxiliary connectors |
| Mechanical Check | Mounting and thermal arrangement |
| Interchangeability | Exact service applicability required |
Functions
- Preserves the exact service-material identity for an IGD2/R4 repair.
- Supports board-level restoration within the documented host power block.
- Keeps revision, connector and semiconductor context inside the replacement decision.
Applications
- Qualified repair of a matching Siemens power block
- Controlled exchange where the original board label is available
- Planned service stock for a documented converter host
Lifecycle
- Keep the removed-board label and host serial number in the repair file.
- Store the board in ESD-safe packaging with revision traceability.
- Retain insulation, gate-path and controlled-power-up test results.
FAQ
Can A5E00714562 be selected from the IGD2/R4 label alone?
No. The host article, hardware revision, board index, semiconductor assembly and interfaces must also match.
Is A5E00714562 supplied as a complete power block?
The material reference identifies a repair-board component; confirm the quoted scope and included hardware in writing.
What photographs are useful for an A5E00714562 request?
Capture the full board label, host nameplate, connector layout, power-semiconductor labels and cooling arrangement.
Can A5E00714562 be exchanged without a parameter backup?
The board is internal hardware, but the host diagnostics, configuration and commissioning record should still be protected before service.
What tests follow A5E00714562 installation?
Use the approved procedure for insulation, auxiliary supplies, gate paths, feedback, interlocks, cooling and staged power-up.
How should A5E00714562 be distinguished from A5E00714565?
Keep separate exact-reference records and verify whether the required supply scope is the board alone or a board-plus-IGBT assembly.
