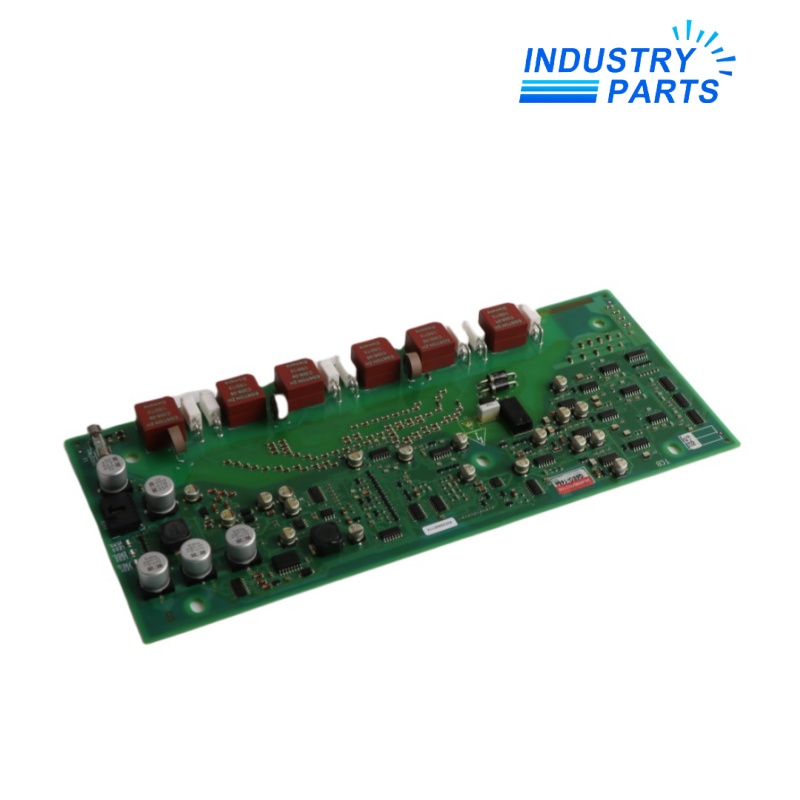

Siemens A5E00842112 Powerblock TCB Service Board
A board-level Siemens service reference whose compatibility is governed by the complete powerblock, board revision and connector arrangement.
Overview
A5E00842112 is a Siemens board-level service reference used inside a powerblock assembly. It is not specified as a universal standalone control product.
Selection must be tied to the host equipment label, the complete board markings on both sides, connector keying, mounting points and any associated C98043 reference visible on the installed hardware.
Public product information does not provide a complete standalone electrical rating set for this board, so host-derived voltage, current and temperature values are intentionally not assigned to the board page.
Specifications
Features
Exact A5E identity supports controlled board-level spare selection.
Host-based verification prevents unrelated powerblock ratings from being assigned to the board.
Connector and revision evidence provide a practical comparison boundary for repair work.
ESD-safe handling protects exposed electronic assemblies during transport and inspection.
Applications
- Controlled repair of a host assembly documented for the exact service reference.
- Like-for-like board exchange after full label and connector comparison.
- Tested-spare planning where the original powerblock identity is available.
Lifecycle
- Photograph both board faces, every label, connector and mounting point before removal.
- Isolate the host power equipment and observe the manufacturer-specified discharge procedure before service.
- Use ESD shielding, rigid anti-flex support and connector protection during transport.
- After installation, complete insulation, cooling, diagnostics and controlled host-function tests before load operation.
FAQ
What must be supplied to verify A5E00842112?
Send the host MLFB and serial number, both board faces, hardware revision, connector orientation, associated board numbers and the original fault record.
Can A5E00842112 be selected from the A5E number alone?
The exact A5E reference is essential, but the host and board revision must also agree because board-level compatibility is assembly specific.
Why are standalone voltage and current values omitted for A5E00842112?
Those values belong to the matched powerblock configuration and are not published as an independent rating set for this service board.
Can a visually similar TCB board replace A5E00842112?
No. Similar construction does not prove identical gate logic, connector assignment, hardware revision or host compatibility.
What evidence should accompany a tested A5E00842112?
Request traceable identity photographs, connector inspection, ESD-controlled bench results and a functional test tied to the correct host assembly.
