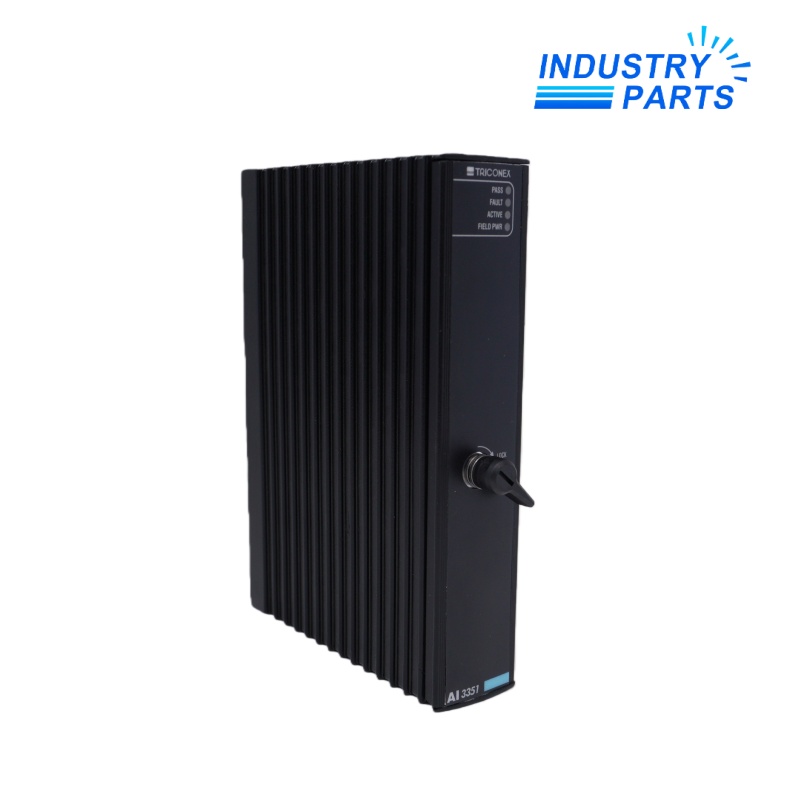

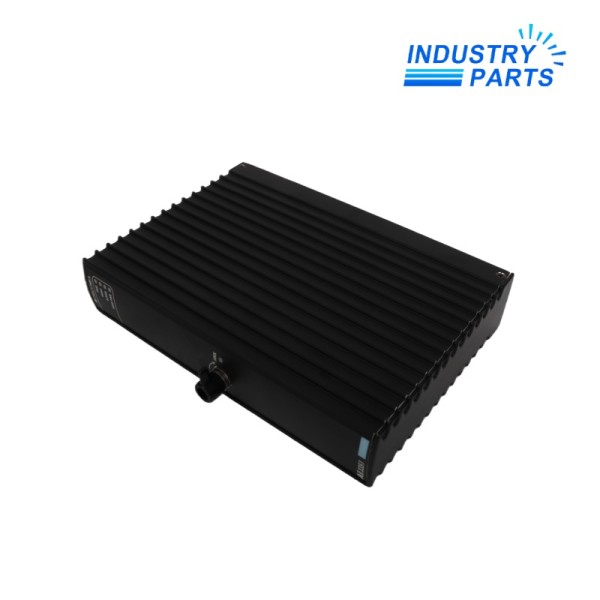

Triconex AI3351 Analog Input Module
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameTriconex AI3351 Analog Input Module
- Item NO.AI3351
- Weight2.0000 kg = 4.4092 lb = 70.5479 oz
- CategoryPLC
- BrandTriconex
- Creation Time2025-10-20
- Triconex Analog Input Module
Triconex
Triconex AI3351 Analog Input Module.
Welcome to Cantact Us
Manager:Leonia
mail:sales@mvme.cn
Phone:+8618030175807(whatsapp)
Technical Parameters
Product Model:AI3351
Product Parameters:Analog Input Module
Manufacturer:Triconex
Points:32, commoned
Nominal input current:4–20 mA DC
Operational current range:2–22 mA DC
Absolute maximum field voltage:33 V DC
Absolute maximum input current:50 mA DC
Input bandwidth (3dB):16 Hz
Source impedance:180 Ω
Resolution:12 bits
Absolute error:0.15% of full scale (20 mA)
Diagnostic:Force-to-value diagnostic (FVD)
Scan time:<1 ms for all 32 points
The Triconex AI3351 is a high-performance analog input module designed for industrial control systems, featuring
Triple Modular Redundancy (TMR) architecture. This ensures high reliability and continuous operation, even in the
event of a failure.
Product Model:AI3351
Product Parameters:Analog Input Module
Manufacturer:Triconex
Points:32, commoned
Nominal input current:4–20 mA DC
Operational current range:2–22 mA DC
Absolute maximum field voltage:33 V DC
Absolute maximum input current:50 mA DC
Input bandwidth (3dB):16 Hz
Source impedance:180 Ω
Resolution:12 bits
Absolute error:0.15% of full scale (20 mA)
Diagnostic:Force-to-value diagnostic (FVD)
Scan time:<1 ms for all 32 points
The Triconex AI3351 is a high-performance analog input module designed for industrial control systems, featuring
Triple Modular Redundancy (TMR) architecture. This ensures high reliability and continuous operation, even in the
event of a failure.
Product Model:AI3351
Product Parameters:Analog Input Module
Manufacturer:Triconex
Points:32, commoned
Nominal input current:4–20 mA DC
Operational current range:2–22 mA DC
Absolute maximum field voltage:33 V DC
Absolute maximum input current:50 mA DC
Input bandwidth (3dB):16 Hz
Source impedance:180 Ω
Resolution:12 bits
Absolute error:0.15% of full scale (20 mA)
Diagnostic:Force-to-value diagnostic (FVD)
Scan time:<1 ms for all 32 points
The Triconex AI3351 is a high-performance analog input module designed for industrial control systems, featuring
Triple Modular Redundancy (TMR) architecture. This ensures high reliability and continuous operation, even in the
event of a failure.
Product Model:AI3351
Product Parameters:Analog Input Module
Manufacturer:Triconex
Points:32, commoned
Nominal input current:4–20 mA DC
Operational current range:2–22 mA DC
Absolute maximum field voltage:33 V DC
Absolute maximum input current:50 mA DC
Input bandwidth (3dB):16 Hz
Source impedance:180 Ω
Resolution:12 bits
Absolute error:0.15% of full scale (20 mA)
Diagnostic:Force-to-value diagnostic (FVD)
Scan time:<1 ms for all 32 points
The Triconex AI3351 is a high-performance analog input module designed for industrial control systems, featuring
Triple Modular Redundancy (TMR) architecture. This ensures high reliability and continuous operation, even in the
event of a failure.
