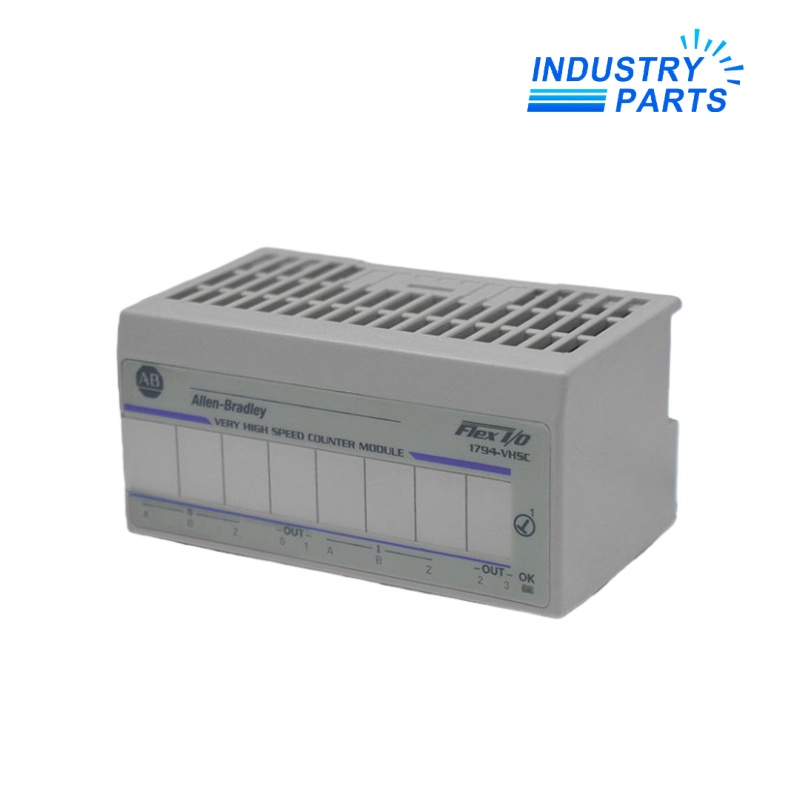

Allen-Bradley 1794-VHSC Very High Speed Counter Module

Allen-Bradley

Allen-Bradley 1794-VHSC Very High Speed Counter Module

Manager: Leonia

E-mail: sales@mvme.cn

Phone: +8618030175807(whatsapp)

Product Model:1794-VHSC

Manufacturer:Allen-Bradley

Type:Very High Speed Counter Module

Input Voltage：5 V DC

Input Off-state Voltage：<1.8 V DC

Input Off-state Current：<0.25 mA

Input On-state Current：>5 mA

Outputs：2 Isolated Groups of 2

Output Supply Voltage Range：10–31 V DC

Power Dissipation：5.0 W @ 31.2 V DC max

The Allen‑Bradley 1794-VHSC Very High Speed Counter Module is a FLEX I/O intelligent I/O module designed for

high‑speed counting and encoder signal processing in industrial automation systems. It supports two input channels

with configurable counter modes for quadrature encoder, period/rate, continuous/rate, and pulse‑width modulation

applications, accepting both single‑ended and differential signals. The module can handle very high pulse frequencies

 (up to 1 MHz) and returns count or frequency data in a digital format suitable for programmable controllers with Ethernet

or EtherNet/IP connectivity, making it ideal for precise motion monitoring and speed measurement tasks.

Most products come in brand-new original packaging to ensure authenticity and quality.

Professional foam and protective packaging are used to prevent damage during global shipping.

Global shipping options include DHL, FedEx, TNT, UPS, EMS, or any carrier requested by the customer.

Shipping costs are calculated based on weight, carrier choice, and destination.

Custom logistics solutions are available for urgent orders or bulk shipments to ensure timely delivery.

Warranty: 12-month warranty on all products

Flexible Payment: T/T supported; deposit option available for bulk orders

Discount Policy: Quantity-based discounts, larger orders receive better pricing

Over 20 years of experience supplying industrial automation components
