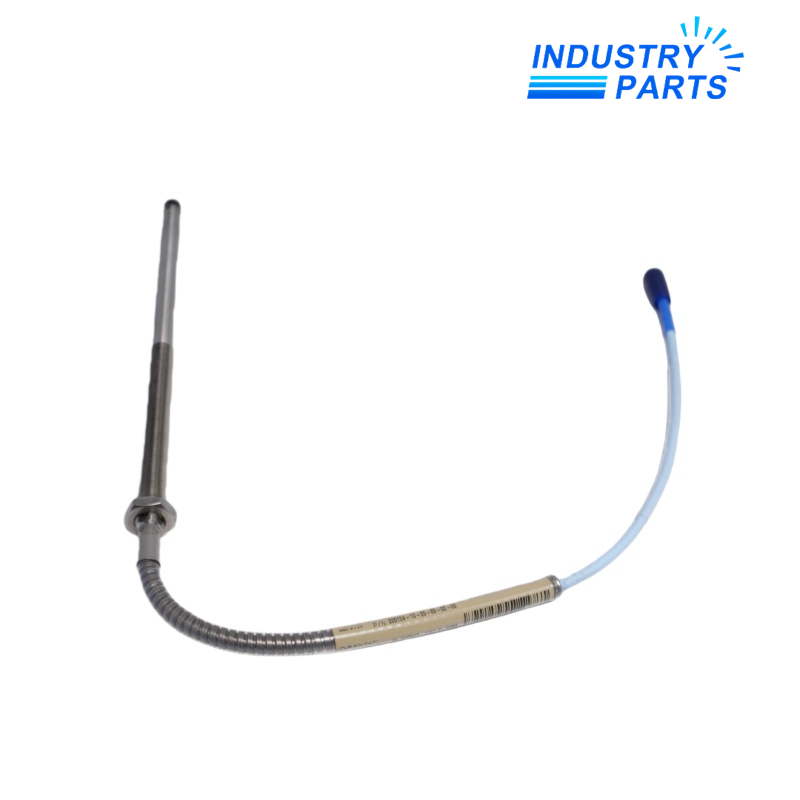

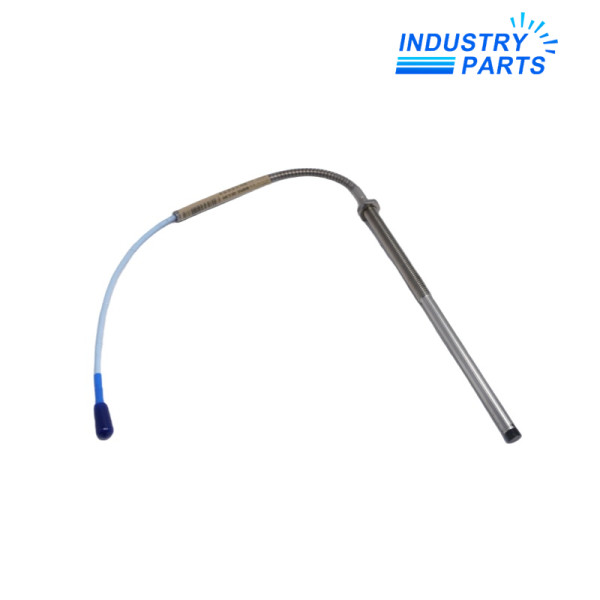

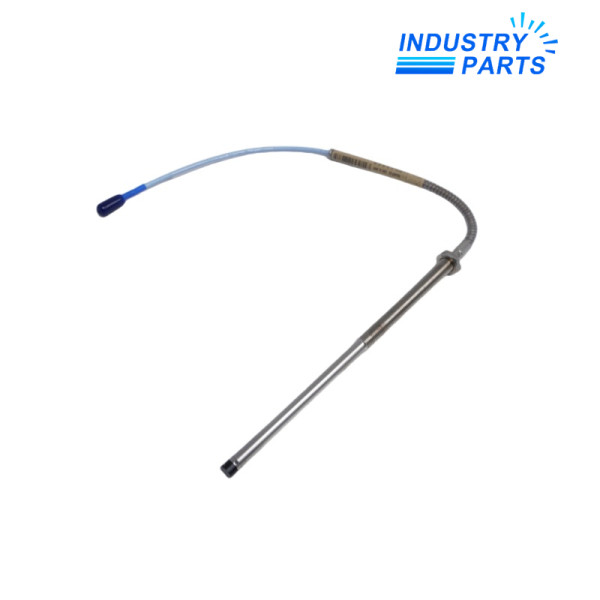

Bently Nevada 330104-10-20-10-02-00 Armored 3300 XL 8 mm Proximity Probe
An armored metric probe with a long smooth tip section for controlled insertion into a 3300 XL measurement point.
Product Profile
330104-10-20-10-02-00 is an armored M10 × 1 probe with separate metric codes for the unthreaded tip section and overall case. Those two dimensions determine the available adjustment and mounting geometry.
The probe uses a standard one-metre lead and ClickLoc connector. It must be paired with the extension cable and sensor that produce the required total system length.
Technical Data
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 330104-10-20-10-02-00 |
| Product Family | 3300 XL 8 mm Proximity Transducer System |
| Probe Case Thread | M10 × 1 |
| Cable Armor | Flexible stainless-steel armor with FEP outer jacket |
| Unthreaded Length | 100 mm |
| Overall Case Length | 200 mm |
| Total Probe Length | 1.0 m (3.3 ft) |
| Connector / Cable | Miniature coaxial ClickLoc connector, standard cable |
| Connector Protector | Not included |
| Agency Approval | Not required |
System Role
- Measures shaft displacement without physical contact.
- Provides a long unthreaded tip section for the documented mechanical arrangement.
- Protects the probe lead with flexible armor.
- Maintains electrical compatibility within the matched 3300 XL loop.
Compatibility
- Compare both metric length fields with the mounting drawing.
- Confirm M10 × 1 thread engagement and available adjustment range.
- Match probe plus extension-cable length to the Proximitor Sensor.
- Use only where the no-approval execution meets the project requirement.
Applications
- Long-reach radial vibration probe points.
- Metric brackets requiring an extended smooth section.
- Armored machine-case routing in standard areas.
FAQ
Why must both length codes on 330104-10-20-10-02-00 be checked?
The unthreaded section and total case length control different parts of mounting geometry; changing either can alter the probe-tip position.
Can 330104-10-20-10-02-00 replace a 00-unthreaded probe?
Not without confirming the bracket, available threads, insertion range and target position from the machine drawing.
What extension cable is required with 330104-10-20-10-02-00?
Choose the matching 3300 XL cable length so the probe-plus-cable total equals the sensor calibration.
How should the armor on 330104-10-20-10-02-00 be routed?
Provide support and bend clearance without crushing, tensioning or twisting the armor at the probe or connector.
What site limitation applies to 330104-10-20-10-02-00?
The final 00 code does not select agency approvals; verify the area-classification requirement before ordering.
What measurements should be retained after fitting 330104-10-20-10-02-00?
Record the mounting datum, thread engagement, final gap voltage, dynamic signal and cable route.
