Bently Nevada 330105-02-12-05-02-05 Reverse Mount Probes

Bently Nevada 330105-02-12-05-02-05 Reverse Mount Probes

Item NO.: 330105-02-12-05-02-05
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameBently Nevada 330105-02-12-05-02-05 Reverse Mount Probes
  • Item NO.330105-02-12-05-02-05
  • Weight1.0000 kg = 2.2046 lb = 35.2740 oz
  • CategoryTSI
  • BrandBently Nevada
  • Creation Time2025-01-08
  • 3300 XL · 8 mm Reverse Mount Probe
Bently Nevada · 3300 XL · 8 mm Reverse Mount Probe

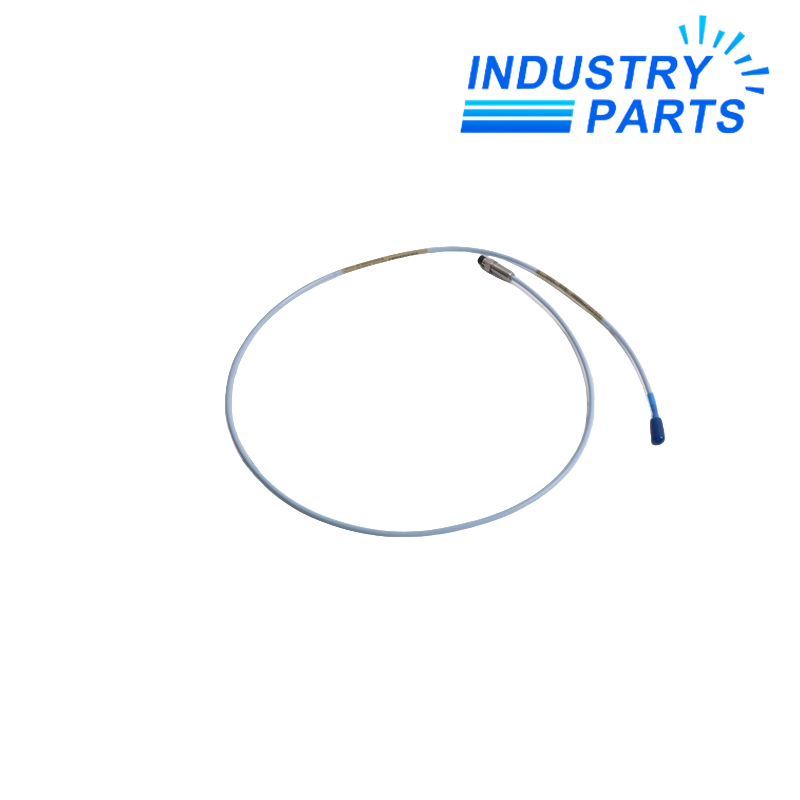

Bently Nevada 330105-02-12-05-02-05 3300 XL 8 mm Reverse Mount Probe

The Bently Nevada 330105-02-12-05-02-05 is a 3300 XL 8 mm reverse mount proximity probe designed for use within a compatible proximity transducer system. This configuration uses 3/8-24 UNF threads, a 0.5 m integral cable, a miniature ClickLoc coaxial connector and CSA, ATEX and IECEx agency approvals.

3300 XL Reverse Mount 8 mm Probe 0.5 m Cable ClickLoc Connector
Product Information

Overview

The Bently Nevada 330105-02-12-05-02-05 belongs to the 3300 XL 8 mm proximity transducer family and uses the reverse-mount probe construction. Reverse-mount probes are intended for installations where the probe mounting arrangement differs from the standard forward-mount configuration.

This probe is used together with the appropriate extension cable and Proximitor Sensor as part of a complete 3300 XL proximity transducer system. Correct probe, extension cable and Proximitor Sensor system-length matching is required for proper system performance.

Official Technical Data

Technical Specifications

Manufacturer Bently Nevada
Part Number 330105-02-12-05-02-05
Product Family 3300 XL 8 mm Proximity Transducer System
Probe Type Reverse Mount Probe
Probe Diameter 8 mm class
Mounting Thread 3/8-24 UNF
Total Length Option 0.5 m (1.6 ft)
Connector Miniature ClickLoc coaxial connector
Agency Approval Option CSA, ATEX, IECEx
Probe Cable 75 Ω coaxial / triaxial system cable construction
Standard Probe Operating / Storage Temperature -52°C to +177°C
Nominal Probe DC Resistance 7.45 ± 0.50 Ω for 0.5 m probe length
Reverse-Mount Recommended Torque 7.5 N·m (66 in·lbf)
Reverse-Mount Maximum Rated Torque 22.6 N·m (200 in·lbf)

Ordering Code Breakdown

330105-02-12-05-02-05
330105-02-12 — 3300 XL 8 mm reverse mount probe with 3/8-24 UNF threads
05 — 0.5 meter total length
02 — Miniature ClickLoc coaxial connector
05 — CSA, ATEX and IECEx approvals
Functional Characteristics

Key Features

Reverse Mount Design
Provides an alternative probe installation arrangement for machinery locations where reverse mounting is required.
ClickLoc Connection
Uses the miniature ClickLoc coaxial connector specified for this probe configuration.
3300 XL System Integration
Designed to operate as part of a complete 3300 XL proximity transducer system.
Hazardous-Area Approvals
This ordering option includes multiple agency approvals for applicable installations.
Industrial Temperature Capability
Standard probe construction supports demanding machinery-monitoring environments.
Non-Contact Measurement
Used in eddy-current proximity measurement systems for rotating machinery monitoring.
Machinery Monitoring

Applications

Bently Nevada 3300 XL proximity transducer systems are used for non-contact measurements on rotating machinery. Typical monitoring tasks include shaft position and dynamic shaft-motion measurements when installed with the appropriate complete transducer system.

Shaft Vibration
Non-contact measurement of relative shaft vibration.
Shaft Position
Measurement of shaft position relative to the probe mounting location.
Rotating Machinery
Monitoring applications on turbines, compressors and other rotating equipment.
Product Status

Lifecycle

The current Baker Hughes / Bently Nevada 3300 XL 8 mm Proximity Transducer System datasheet continues to list 330105-02-12-05-02-05 in the official ordering and certification information. No specific official cancellation date or direct replacement article was identified in the official documentation reviewed for this page.

System Compatibility
When replacing a probe, verify the complete 3300 XL transducer configuration, including mounting thread, probe length, connector type, extension cable length, Proximitor Sensor system length and required agency approvals.
Product Questions

Frequently Asked Questions

1. What type of probe is 330105-02-12-05-02-05?
It is a 3300 XL 8 mm reverse mount proximity probe for a compatible Bently Nevada proximity transducer system.
2. What thread does 330105-02-12-05-02-05 use?
This reverse mount probe configuration uses 3/8-24 UNF threads.
3. What connector is fitted to this probe?
The connector option is a miniature ClickLoc coaxial connector.
4. Can the probe be used by itself?
It is designed as one component of a complete 3300 XL proximity transducer system and must be matched with the appropriate system components.
5. Does 330105-02-12-05-02-05 include hazardous-area approvals?
Yes. The final ordering code 05 specifies CSA, ATEX and IECEx approvals.
