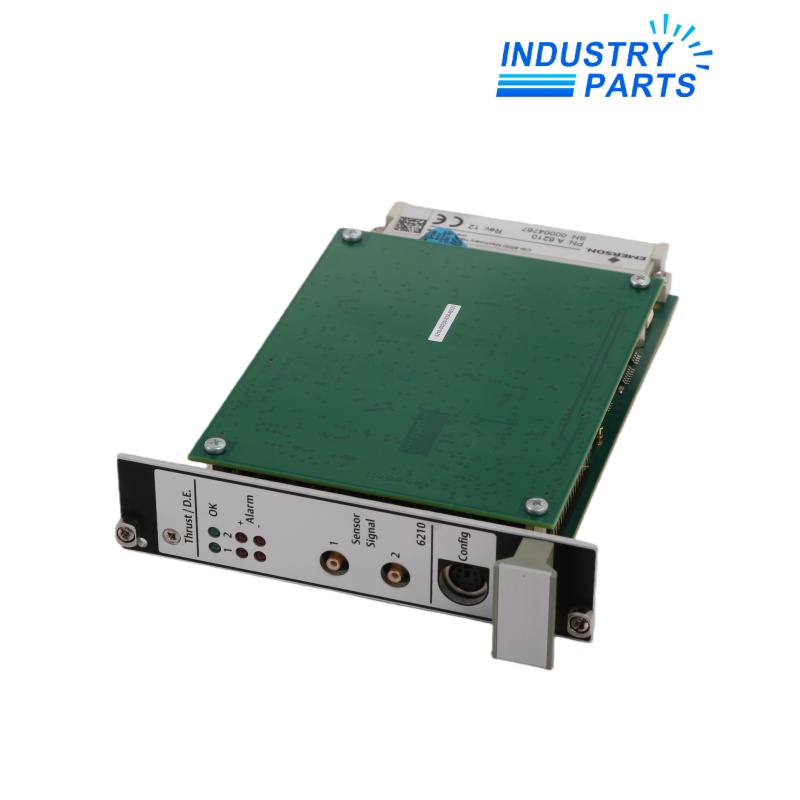

Emerson A6210 Thrust Differential Expansion Module
A two-channel AMS 6500 protection monitor configurable for thrust position, differential expansion or reciprocating-compressor rod position.
Technical Summary
A6210 is an Emerson AMS 6500 two-channel monitor with three distinct modes: thrust position, differential expansion and rod position. It is a 3U, one-slot, hot-swappable module intended for machinery-protection systems.
Thrust mode compares axial shaft position with alarm setpoints, differential-expansion mode tracks rotor-to-case growth, and rod-position mode supports reciprocating-compressor monitoring. Built-in linearization supports sensor adjustment after installation.
Specifications
| Manufacturer | Emerson |
|---|---|
| Model | A6210 |
| System | AMS 6500 Machinery Health Monitor |
| Measurement Modes | Thrust position; differential expansion; rod position |
| Channels | Two |
| Module Format | 3U, one-slot, hot swappable |
| Compliance Basis | API 670 and API 618 |
| Compatible Sensor Families | 6422, 6423, 6424 and 6425 displacement sensors |
| Driver Family | CON xxx signal converters |
| Outputs | Front and rear buffered outputs; 0/4–20 mA and 0–10 V proportional outputs |
| Diagnostics | Hardware, power input, temperature, sensor and cable self-checking |
| Signal Processing | Built-in software linearization |
Features
- Provides three protection modes in one two-channel module.
- Detects small axial changes for thrust-protection logic and alarm actuation.
- Supports differential-expansion arrangements used to compare rotor and casing growth.
- Provides rod-position measurement for reciprocating-compressor condition and protection programs.
- Offers buffered and proportional outputs for analysis and plant integration.
Compatibility
- Confirm the AMS 6500 rack, backplane, firmware and slot configuration.
- Match sensor family, CON converter, cable system, target material and configured range.
- Retain the correct mode, channel polarity, zero reference, linearization and alarm logic.
- For critical thrust service, review redundant sensor and voting requirements.
Replacement
- Export the active configuration and record channel, sensor, alarm and relay assignments.
- Verify rack power, keying and approved hot-swap practice before module exchange.
- After replacement, validate gap/position, linearization, alarm voting, buffered outputs and the complete trip chain.
FAQ
A6210: Which configuration evidence is needed before ordering?
Provide the rack and slot identity, mode per channel, sensor and converter labels, range, polarity, linearization and alarm or voting logic.
A6210: Can a spare be installed with factory-default settings?
Not for protection service. Restore the approved configuration and independently verify channel scaling, direction, alarms and relays.
A6210: What distinguishes a safe thrust-channel acceptance test?
Verify mechanical reference, sensor gap, increasing direction, alert and danger thresholds, time response and the complete relay path.
A6210: How should differential-expansion channels be checked?
Confirm sensor geometry, channel combination, cold reference, expected thermal travel and agreement with machine drawings.
A6210: What should accompany a repaired module?
Ask for traceable identity, power and self-test results, analog-output checks, communication checks and channel simulation across the configured range.
A6210: When should migration be considered instead of a like-for-like spare?
Review migration when rack support, configuration tools or qualified repair coverage can no longer meet the required outage and protection risk.
