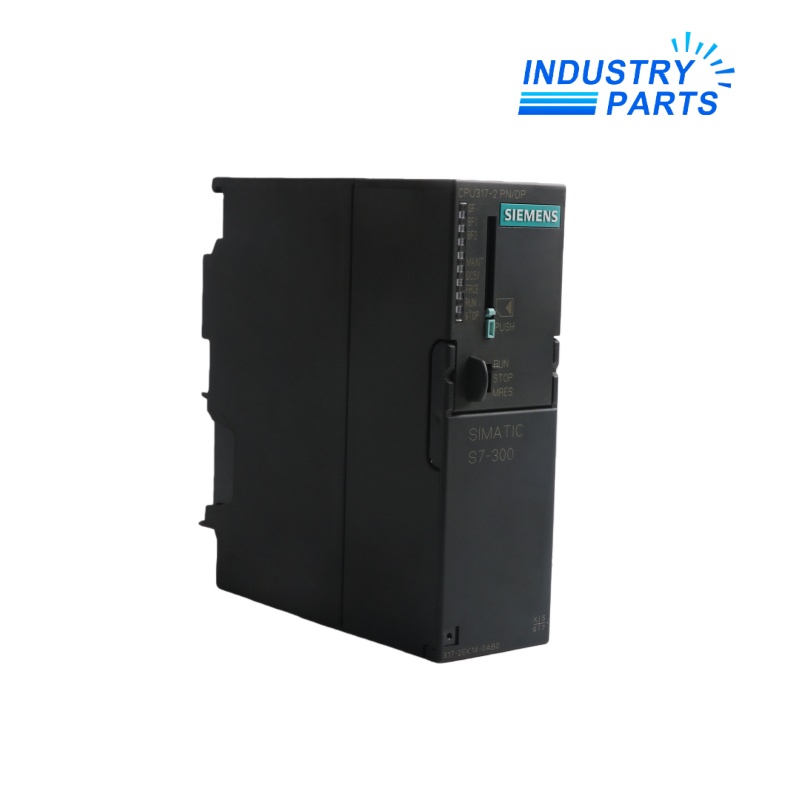

Siemens 6ES7317-2EK14-0AB0 Central Processing Unit

Siemens 6ES7317-2EK14-0AB0 Central Processing Unit

Item NO.: 3531179
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameSiemens 6ES7317-2EK14-0AB0 Central Processing Unit
  • Item NO.3531179
  • Weight1.0000 kg = 2.2046 lb = 35.2740 oz
  • CategoryPLC
  • BrandSiemens
  • Creation Time2026-01-29
  • Siemens Central Processing Unit
6ES7317-2EK14-0AB0 | S7-300 CPU 317-2 PN/DP · Official Technical Data

6ES7317-2EK14-0AB0

S7-300 CPU 317-2 PN/DP
1 MB work memory 0.025 µs bit performance PROFINET + PROFIBUS DP Firmware V3.3
Lifecycle Status: Phase-out (Active for spare parts)
Overview

6ES7317-2EK14-0AB0 is a Siemens S7-300 CPU 317-2 PN/DP with integrated PROFINET (2-port switch) and PROFIBUS DP interfaces. It features 1 MB work memory, high processing speed (0.025 µs for bit operations), and is designed for demanding large-scale automation applications requiring high performance, extensive I/O, and advanced communication capabilities.

Requires MMC · Order number 6ES7317-2EK14-0AB0

Technical Specifications

  • Work memory: 1 MB (integrated, not expandable)
  • Load memory: MMC up to 8 MB
  • Bit operation performance: 0.025 µs
  • Word operation performance: 0.05 µs
  • Floating point arithmetic: 0.18 µs
  • Interfaces: PROFINET (2x RJ45 switch) + PROFIBUS DP (RS485)
  • Communication: PG/OP, S7 communication, open IE (TCP/IP, UDP, ISO-on-TCP)
  • I/O address area (max): 2048 digital inputs / 2048 digital outputs (central)
  • Expansion: max. 4 racks, up to 8 modules per rack
  • Protection class: IP20, ambient temperature 0°C ~ 60°C
  • Power loss: 5.2 W typical
  • Number of blocks: Up to 2048 DBs, FCs, FBs, with max. 64 KB each
IEC 61131-3 compliant · Integrated isochronous mode support · Suitable for high-performance applications

Features

  • Integrated PROFINET IO controller with 2-port switch, supports RT/IRT
  • PROFIBUS DP master/slave for distributed I/O
  • High processing speed for complex control tasks
  • Up to 2048 blocks (DBs, FCs, FBs) with max. 64 KB each
  • Supports SIMATIC memory card (MMC) for program/data backup
  • Web server, data logs, time synchronization
  • Online download/debug via PROFINET during operation
  • Diagnostic alarms, process alarms, interrupt handling
  • Software redundancy support (with two CPUs and CP342-5)
  • Compatible with STEP 7 V5.5 or higher

Applications

  • Large-scale machine control (packaging, filling, textile)
  • Process automation with high I/O and performance demands
  • Distributed automation solutions (PROFINET + PROFIBUS)
  • Software redundancy applications
  • Motion control and positioning tasks
  • Replacement for older S7-300 CPUs (e.g., 317-2DP, 317-2PN/DP earlier versions)
  • Complex multi-axis motion control systems

Lifecycle

Lifecycle status: Phase-out product. SIMATIC S7-300 system families generally available until 2023, with spare parts support for approximately ten years thereafter.

Active for spare parts: Expected to remain available through at least 2035+.

Compatible successor (drop-in replacement): 6ES7317-2EK13-0AB0 (previous version). When replacing with 6ES7317-2EK14-0AB0, the STEP 7 project does not need to be changed. Use the previous type's order number in hardware configuration.

Long-term migration path (S7-1500): 6ES7517-3AP00-0AB0 (S7-1500) is the recommended successor platform.

Migration requirements: Program must be ported to TIA Portal; hardware modules replaced with S7-1500 compatible components; not a plug-and-play replacement across platform boundaries. Full hardware and software re-engineering is required for S7-1500 migration.

Recommended Models
Model Model
IC693MDL646C FMC250
NTPS-24-1.3 DXR2.M18-101A
TXS1.12F10 SC-MV04FL
KFD2-SR2-EX1.W.LB RXC32.1
UDK-04-10 CNX-B12W
REG-K/8x230/16 IM72-11Ex/L
DBS1224B4W CB-400
H7080B2103 KZT11
AX-LDPT482V-1 OM40BHOND
PT5402 FCA/S 1.1M
SG-TL70-G LG-003552
EV669 SB-4Z-UN
FCSM082300 3TX7116-5FC13C
PR6 2925M1221 1C31227G01
T8123 PoE-30W CAT5e/6/7
Frequently Asked Questions
Is 6ES7317-2EK14-0AB0 discontinued? What is its availability?
The SIMATIC S7-300 system family was generally available until 2023. Following the phase-out declaration, products are available as spare parts for approximately ten more years. This CPU is expected to remain available through at least 2035+ as a spare part.
What is the compatible drop-in replacement for this CPU?
The previous version is 6ES7317-2EK13-0AB0. When replacing with 6ES7317-2EK14-0AB0, the STEP 7 project does not need to be changed. You can configure the previous type's order number in hardware configuration.
What is the long-term migration path to S7-1500?
The recommended S7-1500 replacement is 6ES7517-3AP00-0AB0. This is not a plug-and-play replacement; full hardware and software re-engineering is required, including program porting to TIA Portal and new hardware installation.
Which programming software is supported?
Requires STEP 7 V5.5 or higher. With appropriate HSP files, earlier versions down to V5.4 SP4 may work. The CPU cannot be operated with versions below V5.4 SP4.
Can this CPU be used for software redundancy?
Yes, the 6ES7317-2EK14-0AB0 can be used for software redundancy applications. Two CPUs and CP342-5 communication processors are typically used for this purpose.
