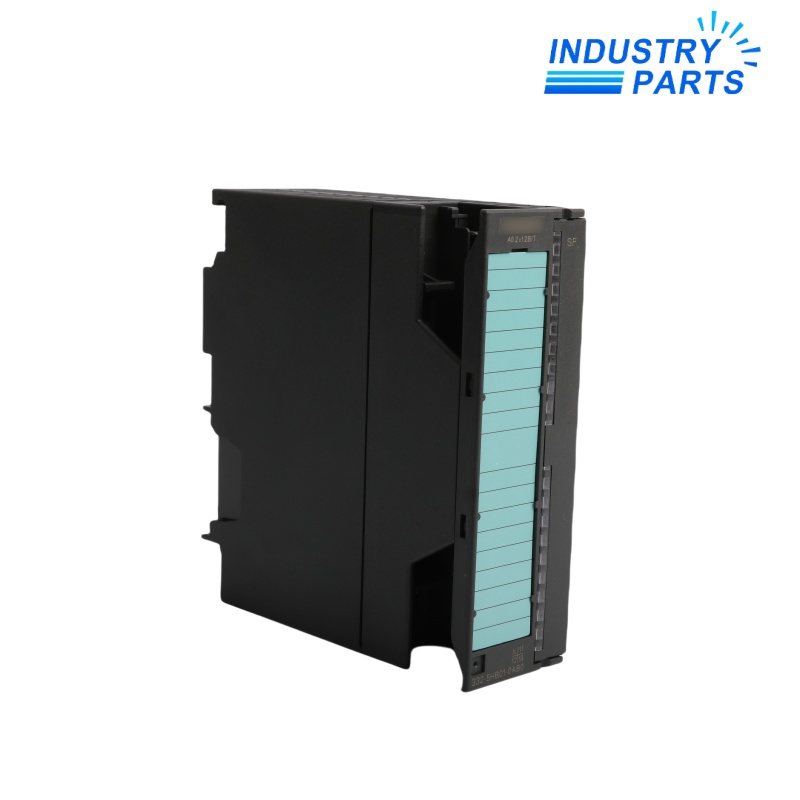

Siemens 6ES7332-5HB01-0AB0 SIMATIC S7-300 SM 332 Analog Output Module
01Product Overview
Siemens 6ES7332-5HB01-0AB0 is an isolated SIMATIC S7-300 SM 332 analog output module with two voltage or current outputs. The 20-pole module provides 11-bit or 12-bit resolution and supports removal or insertion while an active backplane bus is operating in an appropriately engineered system.
02Specifications
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7332-5HB01-0AB0 |
| Product Family | SIMATIC S7-300 SM 332 |
| Module Type | Isolated analog output module |
| Analog Outputs | 2 |
| Signal Types | Voltage or current |
| Resolution | 11 / 12 bits |
| Front Connection | 1 x 20-pole |
| Active Backplane Bus | Removal / insertion supported in an engineered active-backplane configuration |
| Country of Origin | Germany |
| Lifecycle | Product phase-out announced from 1 October 2023 |
03Features
Design and Functions
- Two isolated analog output channels support voltage or current signal assignments.
- Resolution is selected according to the configured output range and channel requirements.
- The 20-pole front connection keeps field wiring associated with the installed S7-300 rack.
- Channel parameters are maintained through the SIMATIC hardware configuration.
- Active-backplane handling is available only where the complete rack design supports it.
- Diagnostic review should include module status, channel configuration, and field-loop response.
Product Identity
Manufacturer: Siemens
Model: 6ES7332-5HB01-0AB0
Product Type: SIMATIC S7-300 SM 332 Analog Output Module
04Applications
- Analog actuator and valve command signals in SIMATIC S7-300 systems.
- Speed, position, or process setpoint output to compatible field devices.
- Legacy S7-300 rack maintenance requiring the exact SM 332 article.
- Redundant or serviceable cabinet designs using an approved active backplane bus.
05Lifecycle & Replacement
- Siemens lists product phase-out from 1 October 2023.
- Use the complete article number for like-for-like spare selection.
- Preserve the STEP 7 hardware configuration and both channel range assignments.
- Confirm the front connector, backplane arrangement, output wiring, and loop load before exchange.
- Evaluate platform migration at system level rather than treating a newer output module as a direct plug-in substitute.
FAQFrequently Asked Questions
What is
6ES7332-5HB01-0AB0 is a two-channel isolated SIMATIC S7-300 SM 332 analog output module.
Which system is it designed for?
It is designed for compatible SIMATIC S7-300 racks and the documented SM 332 configuration.
What must be matched before ordering?
Match the complete model code, installed hardware, electrical ratings, field wiring, connector arrangement, required approvals, and project revision.
What should be recorded before replacement?
Record both channel ranges, signal types, scaling, field-loop wiring, connector terminal mapping, and active-backplane conditions.
How should lifecycle status be handled?
Siemens identifies the article in phase-out status; use an exact spare or an engineered system migration.
What should be checked after installation?
Verify wiring, supply conditions, configuration, diagnostics, channel behavior, alarms, and the controlled process under the approved commissioning procedure.
