16 ISOLATED CHANNELS · JIS PT100 Ω · 0–10 KΩ POTENTIOMETER

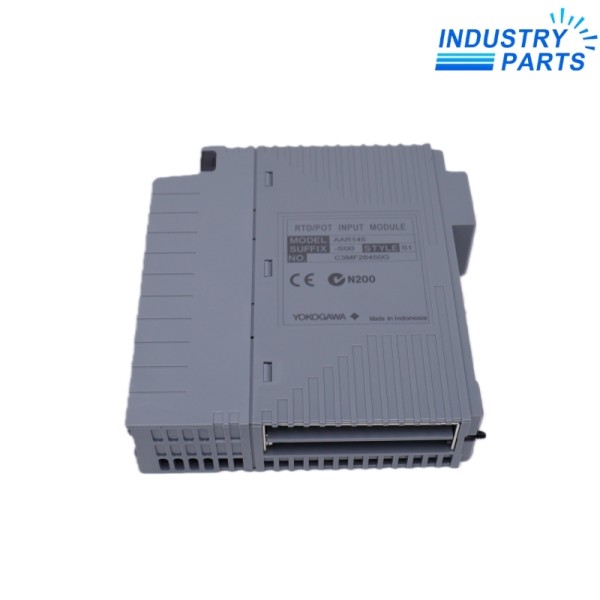

Yokogawa AAR145-S00 S1 Input Module
A CENTUM VP FIO input-module execution for sixteen isolated RTD or potentiometer measurement channels.
Product Identification
AAR145-S00 is an AAR145-family CENTUM VP FIO module for isolated resistance-temperature and potentiometer inputs. Yokogawa lists sixteen isolated channels, JIS Pt100 Ω RTD measurement and a 0 to 10 kΩ potentiometer range.
Field termination is selected through the approved cable and terminal arrangement. The S00 execution remains part of the installed identity and must be confirmed against the node record before a spare is approved.
Engineering Data
Functions
Sixteen isolated measurements
Keeps resistance channels separated for multi-point temperature or position acquisition.
Two supported signal classes
Accepts the published JIS Pt100 Ω and potentiometer ranges rather than a generic analog input.
Defined terminal routes
Uses Yokogawa cable and terminal combinations selected for the installed cabinet architecture.
Node-record compatibility
Ties the module execution, terminal assembly and channel configuration to the CENTUM engineering database.
About IndustryParts
https://www.industryparts.com/Exact identity before quotation
IndustryParts prepares AAR145-S00 enquiries around the complete manufacturer label, requested quantity and destination. For controlled replacements, include the host-system record, field photographs and configuration evidence that apply to this exact execution.
Applications
Temperature acquisition
Reading JIS Pt100 Ω resistance elements across isolated process channels.
Position or resistance measurement
Acquiring approved 0 to 10 kΩ potentiometer signals.
Legacy node maintenance
Replacing the exact AAR145 execution while preserving channel and terminal assignments.
Lifecycle
Export the node record
Save module assignment, channel ranges, compensation settings and terminal references.
Trace field wiring
Identify every RTD or potentiometer lead and the installed cable-to-terminal route.
Validate channels
Check open-wire diagnostics, resistance response, scaling and process indication for all affected points.
FAQ
Can AAR145-S00 be replaced by an AAT145 temperature module?
No. AAR145 is specified for RTD and potentiometer inputs, while AAT145 serves a different temperature-input function.
Which termination evidence is needed for AAR145-S00?
Provide the field cable number, MRT, TERT or AER4D terminal identity, channel wiring and cabinet photographs.
What input types should be listed for a AAR145-S00 quote?
State whether each channel uses JIS Pt100 Ω or a 0 to 10 kΩ potentiometer and include the configured range.
Why should the S00 execution of AAR145-S00 be retained?
The suffix is part of the installed module identity and must be checked against the CENTUM project and physical label.
How is AAR145-S00 accepted after replacement?
Verify module recognition, channel diagnostics, simulated resistance response, engineering scaling and the final process value.
Send the complete AAR145-S00 label, requested quantity and destination.
