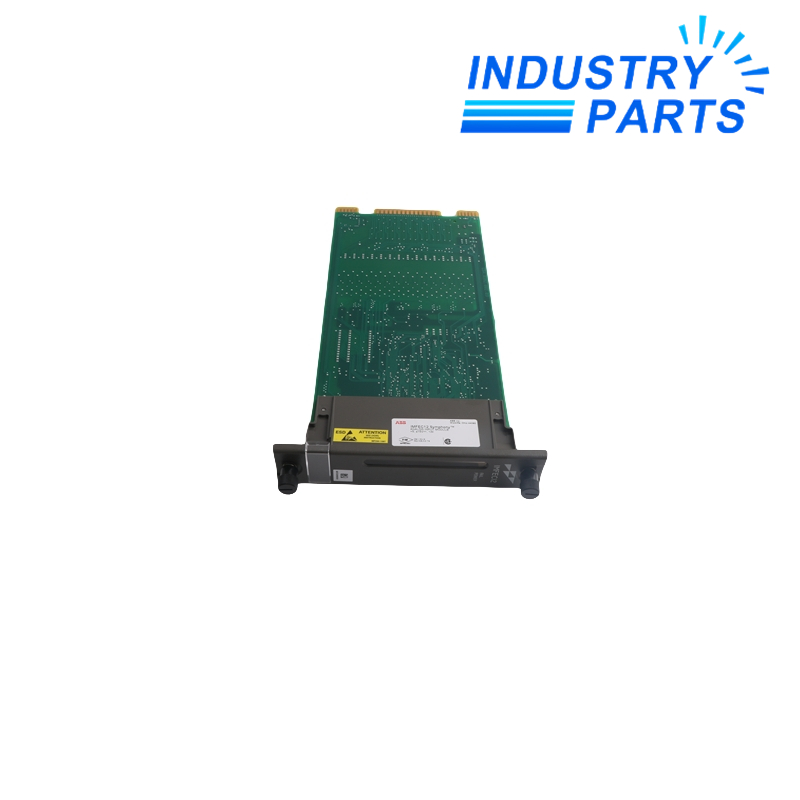

ABB IMFEC12 Analog Input Module

ABB IMFEC12 Analog Input Module

Item NO.: IMFEC12
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameABB IMFEC12 Analog Input Module
  • Item NO.IMFEC12
  • Weight1.0000 kg = 2.2046 lb = 35.2740 oz
  • CategoryDCS
  • BrandABB
  • Creation Time2024-11-27
HARMONY RACK I/O | FIFTEEN ANALOG INPUTS | CONVENTIONAL SIGNALS

ABB Bailey IMFEC12 Harmony Analog Input Module

A 15-channel rack I/O module for conventional current and voltage inputs in Bailey INFI 90 and Symphony control systems.

BrandABB Bailey
ModelIMFEC12
Product TypeHarmony 15-Channel Analog Input Module
01

Overview

IMFEC12 is an ABB Bailey Harmony rack analog input module that converts fifteen independently configured field signals for processing by the connected controller. It accepts conventional transmitter current and voltage signals and communicates through the I/O expander bus.

Unlike IMFEC11, IMFEC12 does not provide FSK smart-transmitter communication. This distinction matters when replacing an installed module or reviewing a loop that uses HART or Bailey smart-transmitter functions.

02

Specs

Manufacturer ABB Bailey
Model IMFEC12
Product Family Harmony rack I/O / INFI 90
Product Type Analog input module
Analog Input Channels 15, independently configured
Current Input Range 4 to 20 mA
Voltage Input Ranges 1 to 5 VDC; 0 to 1 VDC; 0 to 5 VDC; 0 to 10 VDC; -10 to +10 VDC
Input Impedance Greater than 1 MΩ per channel
A/D Resolution 14 bits with polarity
Analog Conversion Time 200 ms
Accuracy at 25 °C 0.10% of full scale for current and -10 to +10 VDC; 0.25% for 0 to 1 VDC
Temperature Effect ±0.003% per °C maximum
Power Requirements 5 VDC ±5% at 85 mA typical; +15 VDC ±5% at 25 mA typical; -15 VDC ±5% at 20 mA typical
Power Dissipation 1.1 W typical
Documented Termination Hardware NTAI05 termination unit; NFTP01 field termination panel
System Interface Harmony I/O expander bus
Smart-Transmitter FSK Support No; FSK communication is an IMFEC11 function
03

Features

  • Handles mixed conventional analog ranges through channel-by-channel configuration.
  • Provides polarity-aware 14-bit conversion for bipolar and unipolar signals.
  • Maintains channel status and communicates converted values to the Harmony controller through the rack I/O architecture.
  • Can serve as the functional replacement path for selected IMASI02 applications when the configured signals are compatible.
04

Applications

  • Process transmitter loops using 4–20 mA current signals.
  • Voltage measurements in Bailey INFI 90 and Symphony rack I/O systems.
  • Modernization of compatible legacy analog input positions after loop and termination verification.
05

Lifecycle

  • Export the controller configuration and record every channel range before removal.
  • Identify the termination unit, field cable and any external transmitter power arrangement.
  • Use ESD controls and preserve the module address and rack position.
  • After exchange, validate each loop at zero, mid-scale and full-scale where the process allows.
06

FAQ

Can IMFEC12 replace IMFEC11 in a loop using smart-transmitter communication?

Not when the application depends on FSK digital communication. IMFEC12 handles conventional analog signals only, so the communication requirement must be checked first.

What information should be supplied to quote IMFEC12 for an existing rack?

Provide the full module label, rack and slot, controller type, termination-unit code, configured range for all fifteen channels and photographs of the field connections.

How should an IMFEC12 replacement be tested without risking the process?

Use an approved loop-test plan, isolate affected control actions and compare injected values with controller readings one channel at a time.

When is IMFEC12 a valid replacement for an older IMASI02?

Only after confirming that the old position uses compatible conventional analog signals and that the rack, termination and controller configuration follow the documented evolution path.

What commonly causes an apparent IMFEC12 input fault after installation?

Incorrect range configuration, wrong termination wiring, missing transmitter power, ground potential differences or an address mismatch should be excluded before the module is blamed.
