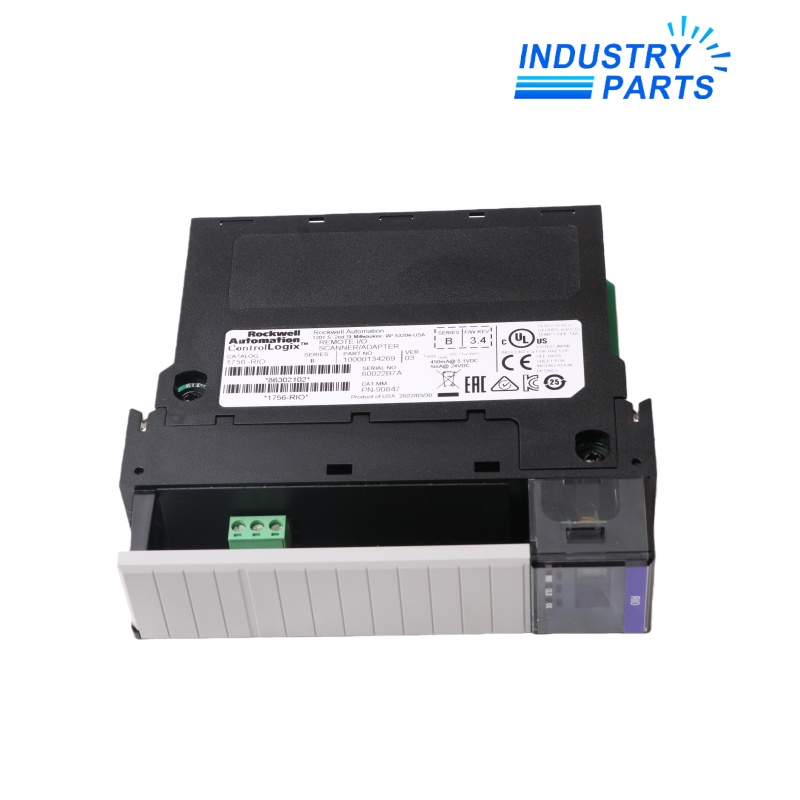

Allen-Bradley 1756-RIO Remote I/O Scanner and Adapter Module
A one-channel ControlLogix communication module for retaining Universal Remote I/O devices during a controlled installed-base migration.
Overview
Allen-Bradley 1756-RIO connects a ControlLogix chassis to a Universal Remote I/O network and can operate as either a scanner or an adapter.
In scanner service it supports connections to as many as 32 racks in combinations of rack size or block transfers. Data reaches the ControlLogix controller through scheduled connections, and the module supports standard communication.
Rockwell Automation lists the module as discontinued from 31 December 2025 with no planned Rockwell replacement. A spare or migration decision must preserve the configured role, rack map, baud rate, block-transfer devices and field network evidence.
Specifications
Features
Dual operating role
The same module can be configured as a Universal RIO scanner or adapter.
Legacy rack integration
Scanner mode retains established Remote I/O racks and block-transfer devices in a Logix architecture.
Scheduled data path
Remote data is updated to the ControlLogix controller through scheduled connections.
Migration boundary
The absence of a planned manufacturer replacement makes the saved rack map and field network record essential.
Applications
Remote I/O scanner service
Owning legacy rack and block-transfer devices from a ControlLogix chassis.
Adapter-mode integration
Presenting configured data to an upstream Universal RIO scanner in a documented architecture.
Brownfield migration staging
Keeping the installed RIO field network operational while a longer-term modernization is engineered.
Lifecycle
Freeze
Export the 1756-RIO configuration and record role, baud rate, rack map, partial-rack use and block-transfer assignments.
Survey
Photograph connectors, termination, cable route, every adapter and the controller tags tied to scheduled data.
Prove
After authorized work, verify rack ownership, input and output images, block transfers, update behavior, fault recovery and machine interlocks.
About IndustryParts
https://www.industryparts.com/Documented handling for 1756-RIO
IndustryParts keeps the exact model, requested quantity, installed-system evidence and delivery record together so the proposed supply can be checked against the real application before dispatch.
FAQ
Does 1756-RIO provide Data Highway Plus messaging?
No. It is a Universal Remote I/O scanner and adapter module. A design that also needs DH+ requires different hardware and engineering review.
What network inventory should accompany a 1756-RIO enquiry?
Provide module series and firmware, scanner or adapter role, data rate, rack map, cable and termination details, block-transfer list and all connected adapter identities.
Can 1756-RIO be replaced by 1756-DHRIO without review?
No. 1756-DHRIO has different roles and channel behavior. Compare adapter requirements, rack ownership, block transfers and DH+ needs before any change.
How should the discontinued status of 1756-RIO affect planning?
Retain a verified configuration and network record, inspect available spares and develop a controlled migration plan because Rockwell lists no planned replacement.
What acceptance test is appropriate after changing 1756-RIO?
Prove every logical rack, partial-rack assignment, block transfer, scheduled controller connection, network fault response and downstream machine function.
